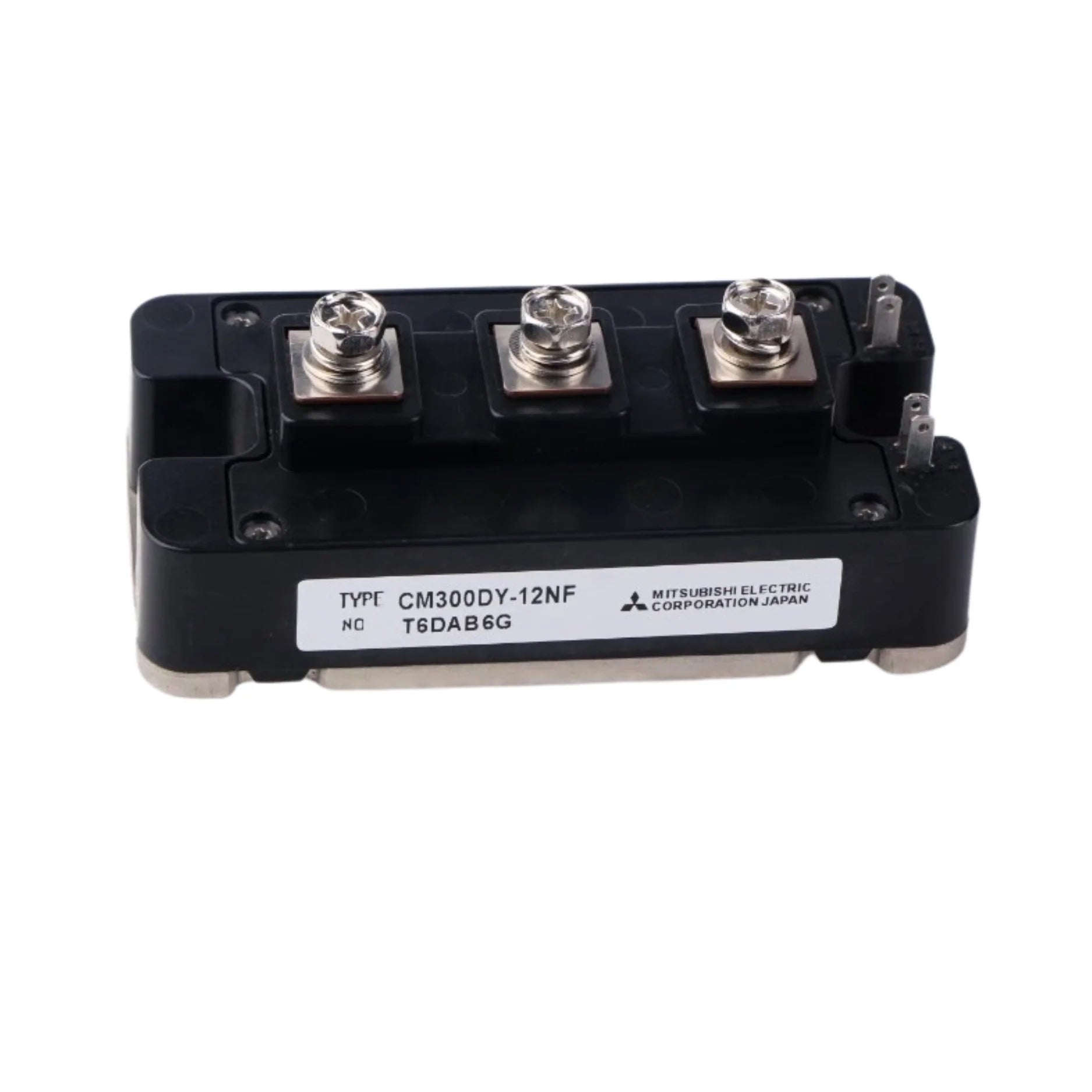

Mitsubishi CM300DY-12NF

Overview

The Mitsubishi CM300DY-12NF is a high-performance dual IGBT module meticulously engineered for demanding industrial power control applications. This robust component integrates two state-of-the-art Insulated Gate Bipolar Transistors (IGBTs) and two fast-recovery free-wheeling diodes within a single, compact chassis-mount package. Designed with an advanced trench-gate structure, the CM300DY-12NF excels in providing exceptionally efficient switching characteristics and remarkably low conduction losses, making it an ideal choice for systems requiring optimized power conversion and minimal energy dissipation. Its insulated baseplate further simplifies integration by providing electrical isolation from the mounting surface, enhancing safety and design flexibility.

Key Features

• Dual IGBT Configuration: Integrates two IGBTs and two fast-recovery diodes in one module for streamlined design.
• High Current Rating: Capable of handling a continuous collector current of 300 A.
• High Voltage Capability: Boasts a collector-emitter voltage (Vces) of 600 V, suitable for a wide range of power applications.
• Trench-Gate Technology: Features an advanced trench-gate structure, minimizing Vce(sat) (collector-emitter saturation voltage) for reduced power loss.
• Built-in Fast Recovery Diodes: Enhances overall efficiency and system reliability, particularly in high-frequency switching operations.
• Chassis Mount with Isolated Base: Facilitates easy and secure mounting while providing electrical isolation, simplifying thermal management.
• High Surge Current Capability: Designed to withstand peak current conditions, ensuring stable operation under transient loads.
• Durable Industrial Design: Engineered for robustness and longevity in harsh industrial environments, ensuring consistent performance.

Technical Specifications

• Model: CM300DY-12NF
• Collector Current (Ic): 300 A (continuous)
• Collector-Emitter Voltage (Vces): 600 V
• Power Dissipation: Approximately 830 W
• Vce(sat) (typical): ~2.2 V
• Gate-Emitter Voltage (Vge): ±20 V max
• Input Capacitance (Cies): ~100 nF
• Turn-on/off time: Designed for fast switching speed
• Configuration: Dual IGBT + Dual Diode
• Package: Module, with insulated base
• Mounting: Chassis mount
• Operating Temperature: –40 °C to +150 °C

Applications

The versatility and robust performance of the Mitsubishi CM300DY-12NF make it an indispensable component across various critical industrial applications:

• AC and DC Motor Control: Provides precise and efficient power switching for industrial motor drives, contributing to energy savings and improved control.
• Industrial Inverters: Essential for converting DC power to AC power in various industrial systems, ensuring stable and reliable operation.
• UPS and Backup Power Systems: Guarantees uninterrupted power supply and reliable backup in critical infrastructure and data centers.
• Renewable Energy Converters: Plays a vital role in efficiently converting energy from sources like solar and wind into usable electrical grids.
• Welding Machines: Delivers the high current and voltage switching necessary for advanced welding equipment.
• High-Speed Switching Power Supplies: Optimizes the performance of power supplies requiring rapid and efficient switching capabilities.

Why Choose This Model?

The Mitsubishi CM300DY-12NF stands out as a superior choice for your power electronics needs due to several compelling advantages:

• Simplified System Design: The integration of dual IGBTs and diodes within a single module reduces component count, simplifies PCB layout, and accelerates development time.
• Excellent Thermal Performance: Engineered for efficient heat dissipation, ensuring stable operation even under high power loads and extending the module's lifespan.
• Reliable Mitsubishi Technology: Benefits from Mitsubishi Electric's renowned expertise and rigorous quality control in semiconductor manufacturing, guaranteeing consistent performance and durability.
• Easy Installation: The chassis-mount design with an insulated base facilitates straightforward and secure installation, minimizing assembly efforts.
• High-Efficiency Switching: Its advanced trench-gate technology and fast recovery diodes contribute to significantly reduced switching losses, leading to improved overall system efficiency and lower operational costs.

Order Now

The Mitsubishi CM300DY-12NF IGBT module is readily available for immediate acquisition and ships worldwide to meet your project deadlines, wherever you are. This exceptional product is a key component within our extensive collection of Mitsubishi IGBT Modules, specifically curated for high-efficiency power conversion and unwavering reliability in the most demanding industrial automation environments. We invite you to explore the complete range of Mitsubishi IGBT Modules to discover other innovative solutions designed to elevate your systems' performance. Furthermore, broaden your search within our main category of Power Electronics Components to uncover a diverse selection of high-quality diodes, thyristors, GTOs, MOSFETs, and many other advanced semiconductor solutions to fulfill all your power electronics requirements.
