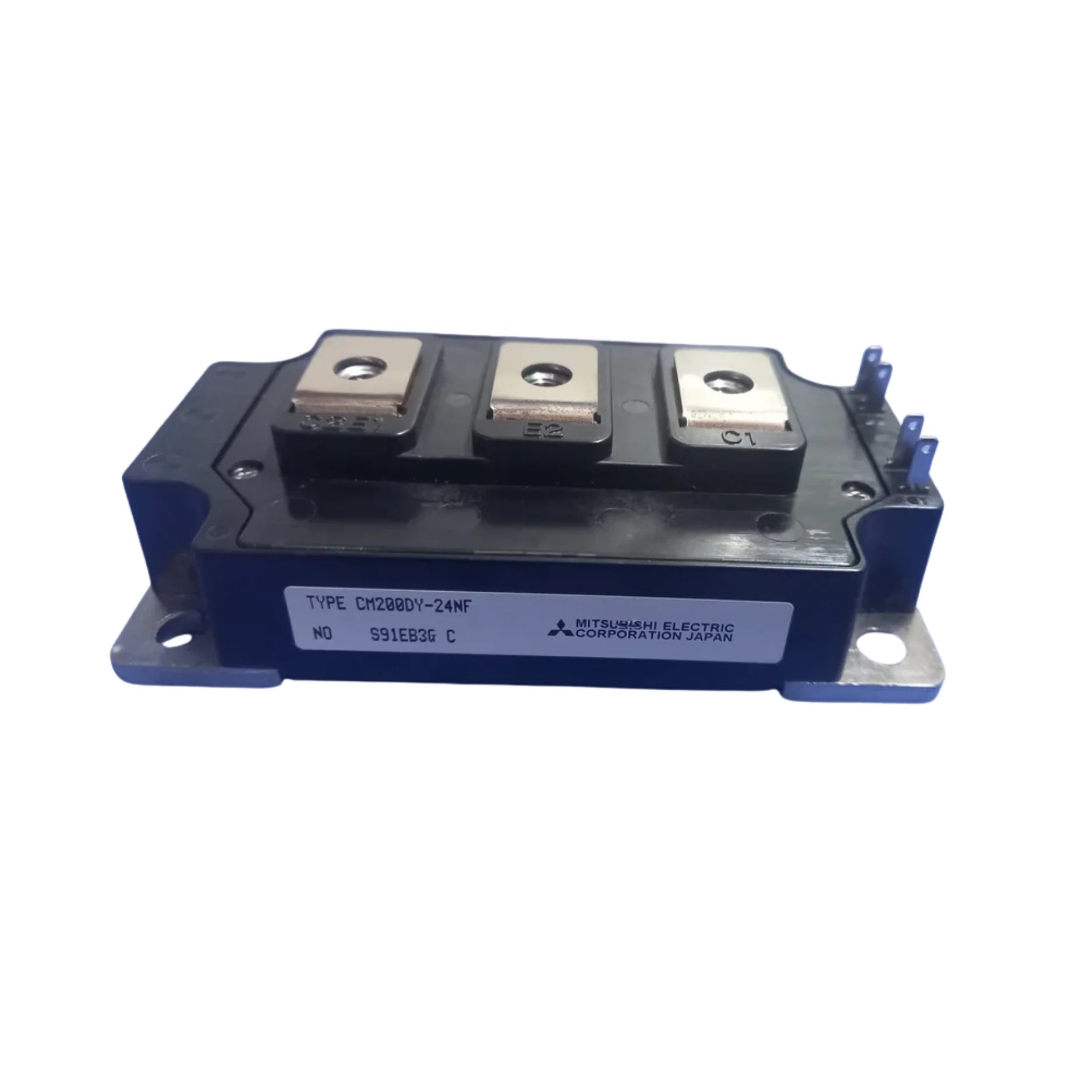

Mitsubishi CM200DY-24NF

Overview

Unleash unparalleled performance and reliability in your power control systems with the Mitsubishi CM200DY-24NF IGBT Power Module. Engineered by Mitsubishi Electric, a global leader in power semiconductors, this high-performance module is designed for demanding industrial applications. Boasting a robust dual transistor configuration, the CM200DY-24NF provides a precise balance of low conduction losses and exceptional high-speed switching capabilities. Its insulated baseplate and rugged housing ensure durability and efficient thermal management, making it an indispensable component for critical power conversion tasks across various sectors.

Key Features

• Dual IGBT Configuration: Optimized for high-efficiency switching and power control.
• High Current Rating: Rated at 200 A, capable of handling significant power loads.
• High Voltage Capability: With a collector-emitter voltage of 1200 V, it's suitable for high-voltage applications.
• Trench-Gate Structure: Advanced design minimizes VCE(sat) for reduced power dissipation and enhanced efficiency.
• Integrated Free-Wheeling Diodes: Features built-in fast-recovery free-wheeling diodes for improved performance and protection.
• Efficient Thermal Management: Insulated base facilitates superior thermal transfer, ensuring stable operation.
• Compact & Robust Design: Chassis mount design offers ease of integration and durability in industrial environments.
• Versatile Application: Ideal for a wide range of inverter and power conversion systems.

Technical Specifications

• Part Number: CM200DY-24NF
• Configuration: Dual IGBT with integrated free-wheeling diodes
• Collector Current (Continuous): 200 A
• Collector-Emitter Voltage: 1200 V
• VCE(sat) (at rated current): Approximately 2.1–2.2 V
• Gate-Emitter Voltage: ±20 V
• Thermal Resistance (Junction-Case): Approximately 0.18 °C/W
• Switching Characteristics: Optimized for fast rise and fall times
• Mounting Type: Chassis mount (isolated base)
• Operating Temperature Range: –40 °C to +150 °C
• Package Type: Power module
• Weight: Approximately 300 g

Applications

The Mitsubishi CM200DY-24NF IGBT power module is a versatile solution for a multitude of high-power industrial applications, including:

• Industrial Motor Drives and Servo Systems: Ensuring precise and efficient control of motors.
• Uninterruptible Power Supplies (UPS): Providing reliable power backup for critical systems.
• Renewable Energy Inverters: Essential for converting DC power from solar and wind into usable AC power.
• High-Power Converters: Facilitating efficient power conversion in various industrial settings.
• Electric Welding and Automation Equipment: Delivering robust and stable power for demanding automated processes.

Why Choose This Model?

The CM200DY-24NF stands out as a superior choice for your power electronics needs due to its exceptional combination of features and Mitsubishi's renowned quality. It seamlessly integrates high current handling (200 A) with a substantial 1200 V voltage capability, offering a powerful solution for diverse industrial requirements. The advanced trench-gate IGBT design significantly enhances switching efficiency, leading to reduced energy consumption and improved system performance. Its robust and compact chassis mount structure not only simplifies installation but also guarantees long-term reliability in harsh operating conditions. Backed by Mitsubishi Electric's legacy of industrial reliability and innovation, the CM200DY-24NF is specifically engineered for medium to high-power industrial applications where efficiency, durability, and consistent performance are paramount.

Order Now

The high-performance Mitsubishi CM200DY-24NF IGBT module is readily available and ready to ship worldwide. This product is a pivotal component within our comprehensive Mitsubishi IGBT Modules collection, meticulously curated for high-efficiency power conversion and dependable performance in industrial automation systems. We invite you to explore the complete range of Mitsubishi IGBT Modules to discover solutions tailored to your exacting specifications. Furthermore, broaden your search within our Power Electronics Components main category, where you will find an extensive selection of diodes, thyristors, GTOs, MOSFETs, and other cutting-edge semiconductor solutions to complete your power system designs.
