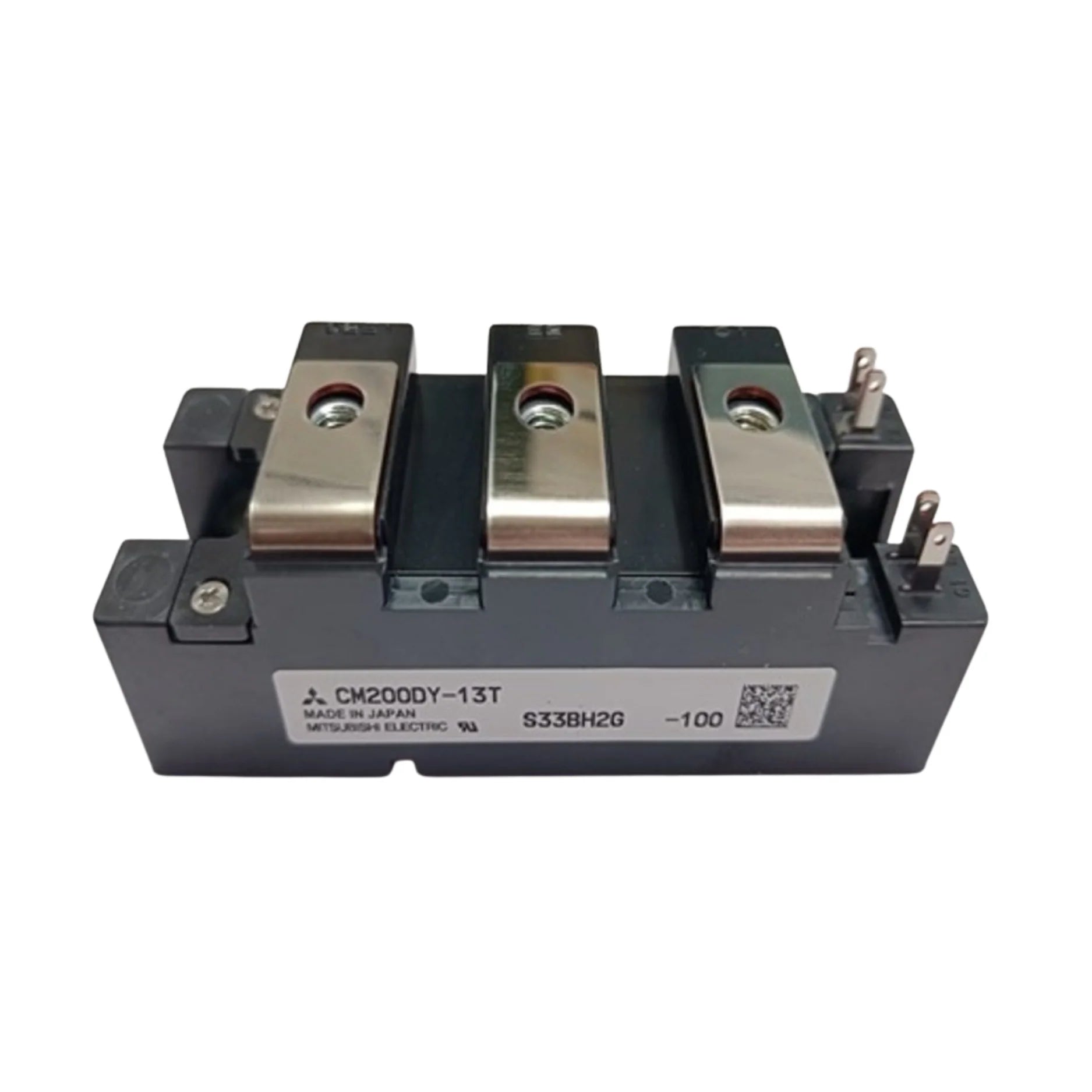

Mitsubishi CM200DY-13T

Overview

The Mitsubishi CM200DY-13T is a high-performance dual Insulated Gate Bipolar Transistor (IGBT) module meticulously engineered for the demanding requirements of industrial power control systems. This robust component integrates cutting-edge trench-gate IGBT technology, delivering exceptional efficiency and reliability for a wide array of applications. With an impressive collector current rating of 200 A and a formidable voltage rating of 600 V, the CM200DY-13T stands out as a superior choice for power conversion and management. Its intelligent design, featuring an insulated baseplate and chassis-mount configuration, ensures optimal thermal dissipation and long-term operational stability, even in the most strenuous industrial environments. This module is globally recognized for its low conduction losses and efficient switching characteristics, making it an indispensable asset for modern power electronics.

Key Features

• Dual IGBT Half-Bridge Configuration: Provides versatile and efficient power switching capabilities for various circuit designs.
• High Current Rating: Rated at 200 A, ensuring robust performance in high-power applications.
• High Voltage Rating: Collector-emitter voltage of 600 V, suitable for a broad spectrum of industrial voltage requirements.
• Trench-Gate IGBT Design: Minimizes conduction losses and enhances switching efficiency, leading to superior overall performance.
• Integrated Fast-Recovery Free-Wheeling Diodes: Improves overall system efficiency and reduces switching losses by managing reactive energy.
• Insulated Baseplate: Facilitates efficient heat transfer and simplifies mounting, ensuring reliable thermal management and extended operational life.
• Rugged Chassis Mount Construction: Offers mechanical stability and durability, allowing for secure integration into industrial equipment.
• Compact, Industry-Standard Footprint: Enables easy integration into existing designs and optimizes space utilization within power systems.

Technical Specifications

• Part Number: CM200DY-13T
• Configuration: Dual IGBT with diodes
• Collector Current (Ic): 200 A
• Collector-Emitter Voltage (Vces): 600 V
• Collector-Emitter Saturation Voltage VCE(sat): Approximately 2.0 V at rated current
• Gate-Emitter Voltage (Vges): ±20 V
• Thermal Resistance (Junction-Case): Approximately 0.12 °C/W
• Switching Speed: Fast
• Mounting Type: Chassis mount (isolated base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Power module
• Weight: Approximately 300–350 g

Applications

The Mitsubishi CM200DY-13T IGBT module is a versatile component essential for high-performance and reliable power control across diverse industrial sectors. Its robust design and advanced features make it ideal for:

• Industrial Motor Drives: Providing precise and efficient control for AC and DC motor applications in manufacturing and automation.
• Inverter Systems and Converters: Crucial for converting DC to AC power in various industrial setups, including renewable energy systems.
• Power Supplies and UPS Units: Ensuring stable and reliable power delivery in critical infrastructure and backup power solutions.
• Automation and Robotic Control: Enabling accurate and responsive control in advanced robotic systems and automated machinery.
• Renewable Energy Systems: Integral to the efficiency and performance of solar inverters and wind turbine converters.

Why Choose This Model?

The Mitsubishi CM200DY-13T offers a compelling combination of performance, reliability, and advanced technology, making it the preferred choice for discerning engineers and system integrators:

• Efficient 200 A Performance in a Compact Form: Delivers high power density without compromising on space, ideal for streamlined designs.
• Mitsubishi Reliability with Trench-Gate Technology: Benefits from Mitsubishi Electric's renowned manufacturing quality and the superior efficiency of trench-gate IGBTs.
• Easy Integration into Existing Systems: Designed with an industry-standard footprint for seamless compatibility and reduced development time.
• Superior Thermal Management with Isolated Base: Ensures optimal operating temperatures and extends the lifespan of the module, even under strenuous conditions.
• Trusted for Industrial and OEM Applications: A proven track record of dependability and performance in mission-critical industrial equipment and original equipment manufacturer designs.

Order Now

Secure the Mitsubishi CM200DY-13T IGBT module today and elevate the performance of your industrial power control systems. This high-performance component is readily available and ships worldwide, ensuring that you can access cutting-edge technology wherever your operations are located. The CM200DY-13T is a cornerstone of our comprehensive Mitsubishi IGBT Modules collection, a range specifically curated for high-efficiency power conversion and unwavering reliability in demanding industrial automation environments. We invite you to explore the complete range of Mitsubishi IGBT Modules to discover other innovative solutions. Furthermore, delve into our main category of Power Electronics Components, where you can find an extensive selection of diodes, thyristors, GTOs, MOSFETs, and other advanced semiconductor solutions to meet all your power electronics needs.
