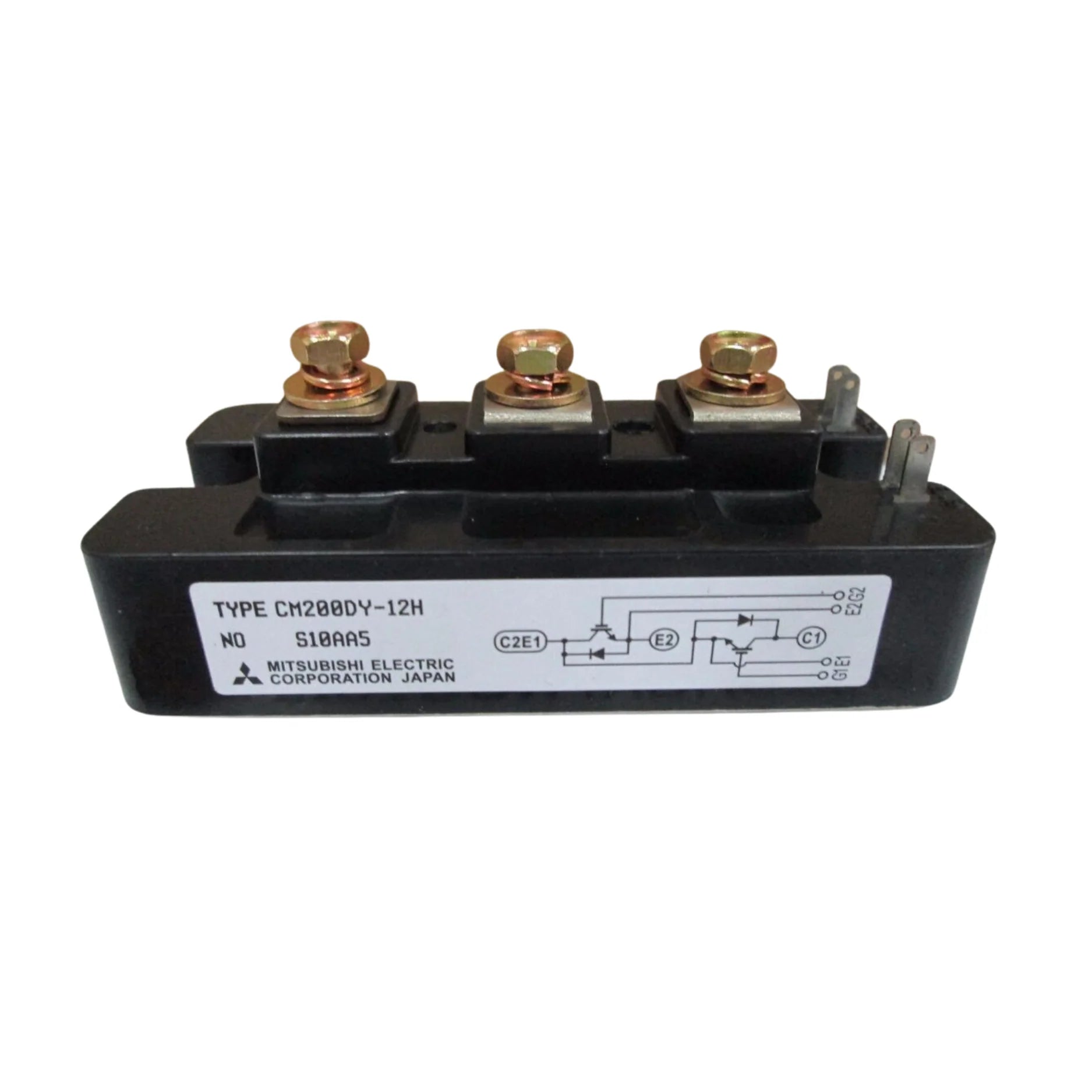

Mitsubishi CM200DY‑12H

Overview

The Mitsubishi CM200DY-12H is a high-performance dual IGBT module engineered to meet the rigorous demands of advanced industrial applications. This robust power semiconductor integrates two cutting-edge trench-gate IGBTs alongside high-speed free-wheeling diodes, all meticulously assembled on an insulated baseplate. This design not only ensures superior thermal management and electrical isolation but also significantly simplifies mechanical integration into various systems. Ideal for critical applications such as motor drives, uninterruptible power supplies (UPS), and sophisticated power conversion equipment, the CM200DY-12H delivers unparalleled efficiency, reliability, and power density.

Designed for seamless chassis mounting, this module combines Mitsubishi's renowned engineering excellence with features that provide long-term stability and performance in challenging environments. Its robust construction and optimized electrical characteristics make it a cornerstone component for designers seeking to achieve high power output with excellent switching characteristics.

Key Features

• Dual IGBT Configuration: Incorporates two trench-gate IGBTs coupled with fast-recovery diodes for efficient current handling.
• Trench-Gate Technology: Maximizes performance through low Collector-Emitter Saturation Voltage (VCE(sat)) and optimized switching losses.
• Integrated Fast Free-Wheeling Diodes: Enhance efficiency and reduce power dissipation during commutation.
• Insulated Baseplate: Provides excellent thermal isolation and simplifies heat sink integration, ensuring reliable operation.
• High Current and Voltage Capability: Rated for 200A continuous collector current and 600V collector-emitter voltage.
• Robust Chassis-Mount Housing: Designed for secure and stable fastening in industrial frameworks.
• Superior Thermal Stability: Engineered to maintain performance across a wide range of operating temperatures, from –40 °C to +150 °C.
• High Surge Current Capability: Withstands transient overcurrent events, enhancing system reliability.

Technical Specifications

• Part Number: CM200DY-12H
• Configuration: Dual IGBT + dual free-wheeling diodes
• Collector Current (Ic): 200 A continuous (400 A pulse)
• Collector‑Emitter Voltage (Vces): 600 V
• Power Dissipation: ~780 W at Tc = 25 °C
• VCE(sat): ~2.1 V at 15 V gate drive, 200 A
• Gate‑Emitter Voltage (VGE): ±20 V max
• Input Capacitance (Cies): ~110–160 nF
• Thermal Resistance Rth(j‑c): IGBT ~0.16 °C/W, diode ~0.35 °C/W
• Baseplate Isolation: ~2.5 kV RMS
• Operating Temp (Junction): –40 °C to +150 °C
• Mounting: Chassis (M5/M6 hardware)
• Weight: ~270 g

Applications

The versatility and robust performance of the Mitsubishi CM200DY-12H make it an indispensable component across a broad spectrum of demanding industrial applications, including:

• Industrial Motor Drives: Enabling precise and efficient control of AC and DC motors in factories and automation systems.
• Servo Systems: Providing high dynamic response and accuracy for robotics and precision machinery.
• Uninterruptible Power Supplies (UPS): Ensuring reliable and stable power delivery for critical infrastructure and sensitive electronics.
• Welding and Induction Heating Units: Delivering the high power and fast switching required for advanced manufacturing processes.
• Power Conversion Equipment: Facilitating efficient energy transformation in diverse systems, from renewable energy inverters to industrial power supplies.
• Robotics and Automation: Powering the critical components of automated systems that demand rugged and dependable semiconductor solutions.

Why Choose This Model?

The Mitsubishi CM200DY-12H stands out as a premier choice for power designers and engineers due to its exceptional combination of performance, reliability, and advanced features:

• Optimized Performance: Delivers superior high-current and high-voltage performance within a compact, chassis-mountable form factor, ideal for space-constrained applications.
• Enhanced Efficiency: The integration of trench-gate IGBTs with fast-recovery diodes ensures minimal power losses and highly efficient switching, reducing operational costs and improving system longevity.
• Simplified Integration: The insulated baseplate design not only enhances thermal reliability but also significantly simplifies the heatsink assembly process, streamlining manufacturing and maintenance.
• Mitsubishi Engineering Excellence: Backed by Mitsubishi Electric's legacy of innovation and quality, this module is engineered for industrial durability, offering an extended service life and consistent performance even in the harshest environments.
• Global Availability: As a widely recognized and utilized component, the CM200DY-12H is readily available in both new and surplus markets, ensuring supply chain flexibility.

Choosing the CM200DY-12H means investing in a solution that combines cutting-edge technology with proven reliability, ultimately enhancing the performance and longevity of your power electronic systems.

Order Now

The high-performance Mitsubishi CM200DY-12H IGBT module is readily available to power your most demanding industrial applications. Whether you require new stock for large-scale production or specific units from surplus markets, we facilitate worldwide shipping to ensure you receive your components promptly and efficiently. This product is a crucial part of our Mitsubishi IGBT Modules collection, a curated selection of advanced power semiconductors designed for high-efficiency power conversion and unwavering reliability across diverse industrial automation needs. Explore our comprehensive collection of Mitsubishi IGBT Modules to discover more solutions tailored to your power requirements.

Additionally, we invite you to browse our main category for Power Electronics Components. Here, you will find an extensive array of semiconductor solutions, including diodes, thyristors, GTOs, MOSFETs, and other essential components to complete your power electronic designs. Secure your Mitsubishi CM200DY-12H today and advance your power systems with a module built for endurance and peak performance.
