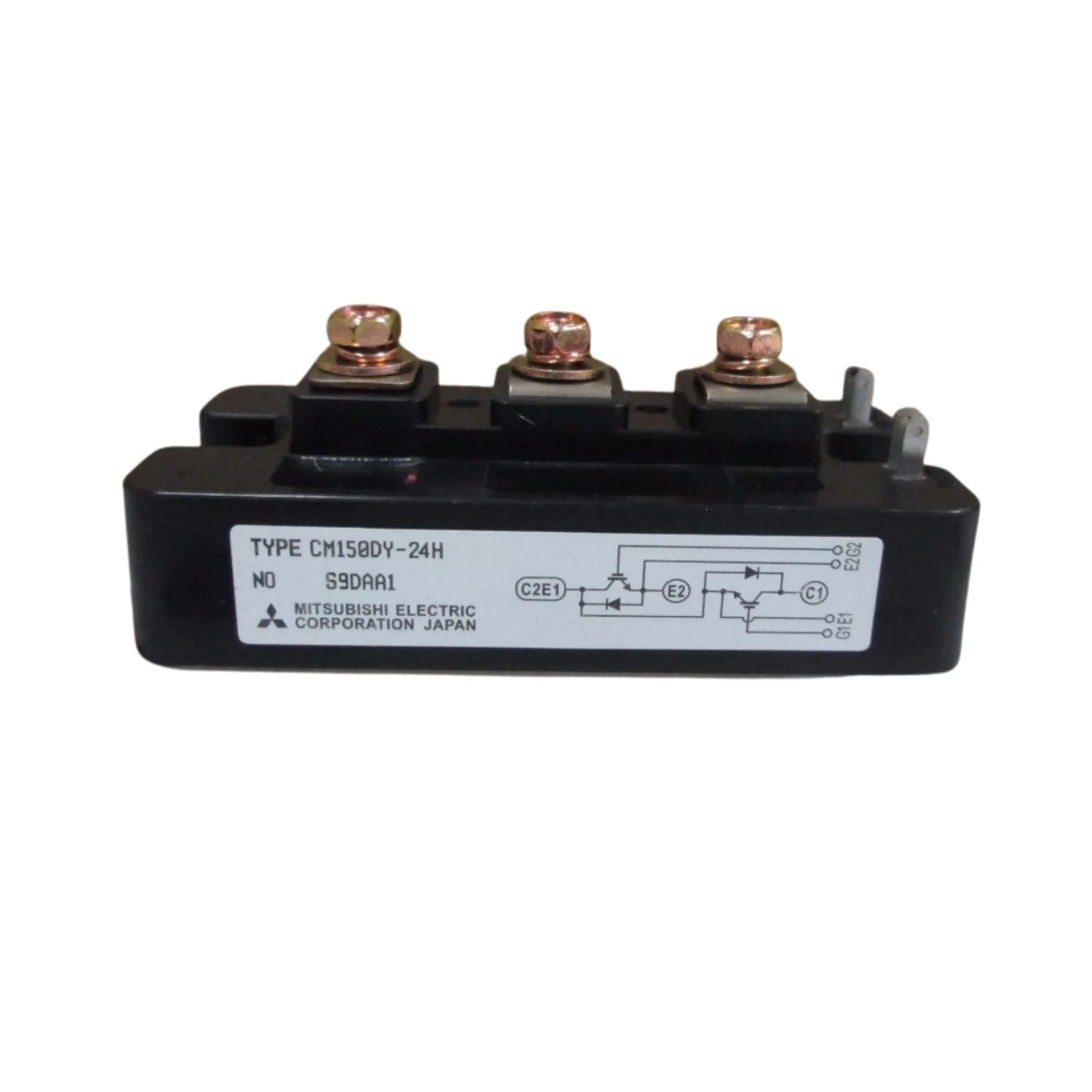

Mitsubishi CM150DY-24H

Overview

The Mitsubishi CM150DY-24H is a high-performance dual Insulated Gate Bipolar Transistor (IGBT) module meticulously engineered for demanding medium-power industrial applications. This compact, chassis-mount module integrates advanced trench-gate IGBT technology with fast-recovery diodes, all within a robust package featuring an insulated baseplate. Designed for optimal efficiency and reliability, the CM150DY-24H boasts a continuous current rating of 150 A and a voltage capability of 1200 V, making it an indispensable component for sophisticated power conversion systems, inverters, and motor drives. Its innovative design ensures superior thermal management and simplified integration into various industrial setups.

Key Features

• Dual IGBT Configuration: Incorporates two IGBTs with integrated free-wheeling diodes for efficient bidirectional current flow.
• High Current and Voltage Ratings: Rated for 150 A continuous collector current and 1200 V collector-emitter voltage, suitable for robust power applications.
• Trench-Gate Technology: Utilizes advanced trench-gate design to achieve exceptionally low saturation voltage, leading to enhanced energy efficiency.
• Isolated Baseplate: Features an insulated baseplate that simplifies heat-sinking and offers improved electrical isolation, reducing design complexity.
• Chassis-Mount Package: Designed for secure and stable chassis mounting (M5/M6 hardware compatible), ensuring durability in industrial environments.
• Efficient High-Speed Switching: Optimized for rapid switching characteristics, minimizing power losses during operation.
• Industrial-Grade Reliability: Manufactured to Mitsubishi Electric's stringent quality standards, guaranteeing long-term performance and durability in harsh industrial conditions.

Technical Specifications

• Model: CM150DY-24H
• Configuration: Dual IGBT + Dual Diode
• Collector Current (Ic): 150 A (continuous)
• Collector–Emitter Voltage (Vces): 1200 V
• Power Dissipation: Approximately 650 W (at Tc = 25 °C)
• Collector-Emitter Saturation Voltage (VCE(sat)): Approximately 2.1 V @ 150 A
• Gate–Emitter Voltage (VGE): ±20 V max
• Input Capacitance (Cies): Approximately 100 nF
• Thermal Resistance (Rth(j‑c)): Approximately 0.25 °C/W
• Operating Temperature (Junction): –40 °C to +150 °C
• Mounting: Chassis (M5/M6 hardware) with insulated base
• Weight: Approximately 250 g

Applications

• Medium-Power Inverters and Motor Drives: Provides robust and efficient power switching for industrial motor control and variable frequency drives.
• Uninterruptible Power Supplies (UPS): Ensures reliable power conversion for critical infrastructure and data centers.
• Power Conversion Systems: Integral component in various power conversion topologies requiring high efficiency and dependable performance.
• Renewable Energy Inverters: Suitable for solar and wind power inverters, contributing to efficient energy harvesting.
• Automation and Robotics Equipment: Powers rugged industrial automation and robotics systems that demand stable and efficient power modules.

Why Choose This Model?

The Mitsubishi CM150DY-24H stands out as a superior choice for several compelling reasons. It seamlessly combines highly efficient dual-IGBT switching capabilities within a compact, space-saving module. Its industrial-grade chassis design ensures exceptional durability and longevity, even in the most demanding operational environments. The integration of a low-loss trench-gate structure guarantees energy-efficient performance, reducing operational costs and environmental impact. Furthermore, the insulated baseplate facilitates easy and safe integration into diverse systems, simplifying design and assembly processes. Backed by Mitsubishi Electric's renowned engineering quality, this module delivers unparalleled reliability, making it an ideal solution for applications requiring robust and consistent power delivery in harsh conditions.

Order Now

The Mitsubishi CM150DY-24H IGBT module is readily available for immediate acquisition and ships worldwide, ensuring you can access this critical component no matter your location. This exceptional product is a cornerstone of our comprehensive Mitsubishi IGBT Modules collection, specifically curated for high-efficiency power conversion and unwavering reliable performance in the realm of industrial automation. We invite you to explore the complete range of Mitsubishi IGBT Modules to discover more innovative solutions. Additionally, delve into our main category of Power Electronics Components to uncover a vast array of essential semiconductor solutions, including diodes, thyristors, GTOs, MOSFETs, and many more, designed to meet every power electronic requirement.
