Mitsubishi CM150DY‑12H

Overview

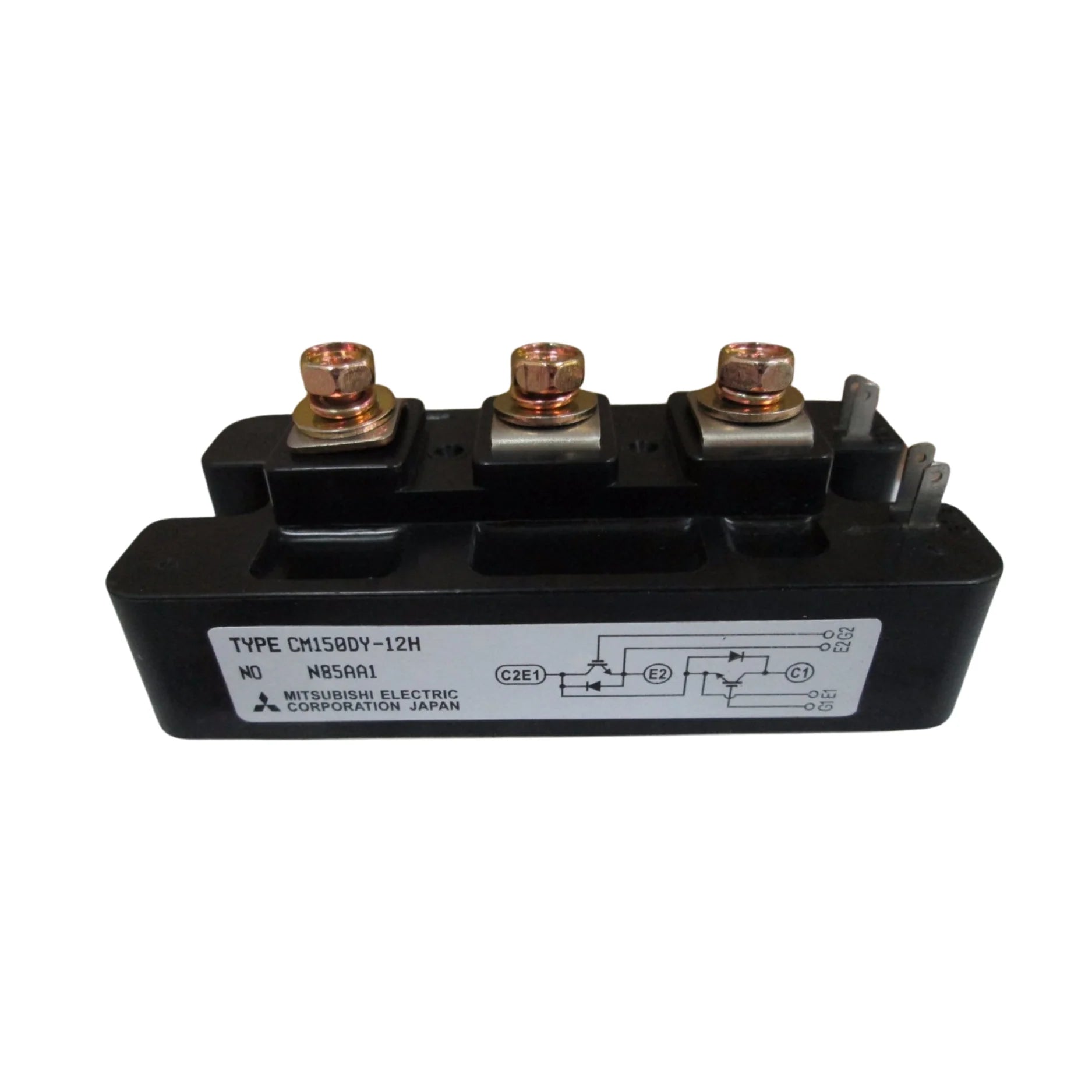

The Mitsubishi CM150DY-12H is a high-performance IGBT module meticulously engineered for demanding medium-power switching applications. This robust dual-IGBT module is rated for 150 Amperes and 600 Volts, making it an ideal solution for a wide array of industrial power conversion systems. Leveraging advanced trench-gate IGBT technology coupled with integrated fast-recovery diodes, the CM150DY-12H ensures exceptional efficiency, remarkable thermal stability, and seamless integration into critical infrastructure such as industrial inverters and advanced motor control units. Its chassis-mount design further simplifies installation, providing a reliable and compact solution for power electronics designers seeking unparalleled performance and durability.

Key Features

• Dual IGBT Configuration: Features a half-bridge topology, offering versatile control in power switching.
• High Current and Voltage Rating: Precisely rated for 150 A at 600 V, accommodating diverse medium-power requirements.
• Advanced Trench-Gate IGBT Technology: Ensures highly efficient switching, minimizing power loss and enhancing system performance.
• Integrated Fast-Recovery Diodes: Incorporates free-wheeling diodes that contribute to the module's overall efficiency and reliability during fast switching cycles.
• Low VCE(sat): Boasts a low Collector-Emitter Saturation Voltage, significantly reducing conduction losses and improving thermal management.
• Insulated Baseplate: Designed with an insulated baseplate for simplified heat dissipation, ensuring stable operation and extended lifespan.
• Rapid Switching Performance: Delivers fast turn-on and turn-off times, crucial for inverter-grade response and dynamic load conditions.
• Rugged Industrial-Grade Construction: Built to withstand harsh industrial environments, ensuring long-term reliability and robustness.

Technical Specifications

• Part Number: CM150DY-12H
• Configuration: Dual IGBT with integrated diodes
• Collector Current (IC): 150 A (continuous)
• Collector-Emitter Voltage (VCE): 600 V
• VCE(sat) (typ.): Approximately 2.2 V @ 150 A
• Gate-Emitter Voltage (VGE): ±20 V
• Switching Speed: Optimized for fast turn-on and turn-off
• Mounting Type: Chassis (bolt-on) with insulated base
• Thermal Resistance (Rth(j-c)): Approximately 0.25 °C/W (Junction-Case)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Module
• Weight: Approximately 250 g

Applications

The Mitsubishi CM150DY-12H IGBT module is a versatile component that finds its application in a broad spectrum of high-performance power electronics systems, including:

• AC Motor Drives: Providing precise and efficient control for various industrial motor applications.
• Power Inverters: Essential for converting DC to AC power in critical infrastructure.
• Uninterruptible Power Supplies (UPS): Ensuring reliable and stable power delivery in critical and sensitive systems.
• Renewable Energy Systems: Integral to green energy solutions, including solar and wind power conversion.
• Industrial Automation Equipment: Driving the efficiency and power management in automated industrial processes.

Why Choose This Model?

Opting for the Mitsubishi CM150DY-12H signifies a commitment to superior performance and unwavering reliability in your power electronics designs. This module stands out due to its dependable 600 V operation, encapsulated within a compact dual-IGBT configuration. Its high current capacity, coupled with remarkably low conduction losses, translates into enhanced energy efficiency and reduced operational costs. The fast switching capabilities are paramount for achieving highly efficient power conversion, a critical factor in today's demanding industrial landscapes. Furthermore, its design prioritizes secure mounting and highly effective heat management, ensuring the long-term stability and performance of your systems. By choosing this module, you benefit from Mitsubishi Electric's renowned quality, guaranteeing exceptional longevity and consistent performance for even the most challenging industrial applications.

Order Now

Experience the unparalleled performance and reliability of the Mitsubishi CM150DY-12H IGBT module. This essential component for high-efficiency power conversion and robust industrial automation is readily available and ready to ship worldwide. The CM150DY-12H is a proud part of our extensive Mitsubishi IGBT Modules collection, meticulously designed to meet the rigorous demands of modern industrial environments. We encourage you to explore the complete range of Mitsubishi IGBT Modules to discover solutions tailored for your precise needs. For a broader array of innovative automation solutions, please visit our Mitsubishi Main Category.
