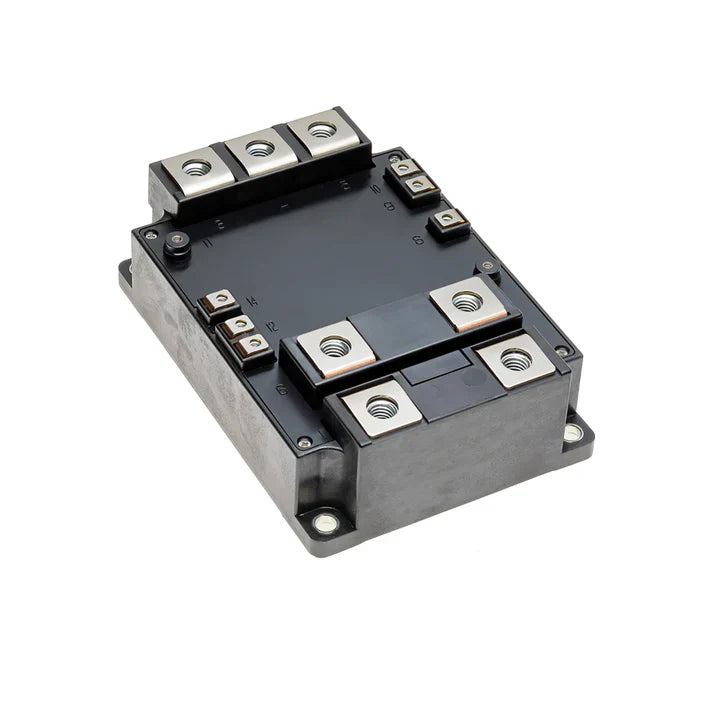

Mitsubishi CM1200DW-34T

Overview

The Mitsubishi CM1200DW-34T is a formidable dual IGBT power module meticulously engineered to meet the stringent demands of ultra-high voltage applications. As a cornerstone of Mitsubishi Electric's innovative power semiconductor line, this module boasts an impressive 1200 A current rating and a substantial 1700 V blocking voltage. It integrates Mitsubishi’s cutting-edge trench-gate IGBT technology, which is instrumental in achieving remarkably low conduction losses and exceptionally fast switching speeds. Designed for enduring performance, its insulated baseplate and robust chassis mount construction ensure unwavering reliability even in the most challenging industrial environments. The CM1200DW-34T is the ideal solution for systems requiring superior power conversion and control.

Key Features

• Dual IGBT Half-Bridge Configuration: Provides versatile control in various power conversion topologies.
• High Current Rating: Handles up to 1200 A collector current, suitable for demanding power applications.
• Ultra-High Blocking Voltage: Features a 1700 V collector-emitter blocking voltage for high-voltage system compatibility.
• Advanced Trench-Gate IGBT Design: Minimizes VCE(sat) (typically 2.1–2.3 V at rated current) for enhanced efficiency and reduced power dissipation.
• Integrated Fast-Recovery Diodes: Optimizes switching performance and reduces overall system losses.
• Insulated Baseplate: Offers superior thermal management and electrical isolation, ensuring safe and reliable operation.
• Robust Chassis Mount: Engineered for industrial durability and straightforward integration into heavy-duty applications.
• Optimized for Very High-Voltage Systems: Specifically designed to excel in applications where high voltage is paramount.

Technical Specifications

• Part Number: CM1200DW-34T
• Configuration: Dual IGBT with integrated free-wheeling diodes
• Collector Current (IC): 1200 A
• Collector-Emitter Voltage (VCE): 1700 V
• Collector-Emitter Saturation Voltage (VCE(sat)): Approximately 2.1–2.3 V @ rated current
• Gate-Emitter Voltage (VGE): ±20 V
• Thermal Resistance (Junction-Case): Approximately 0.015 °C/W
• Switching Speed: High, optimized for efficient power conversion
• Mounting Type: Chassis mount (with isolated base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Standard Industrial IGBT Module
• Weight: Approximately 1.8–2.2 kg

Applications

• High-Voltage Industrial Drives: Powering large-scale motors and industrial machinery with precision and efficiency.
• Railway Traction Inverters: Essential for the reliable and powerful operation of modern train systems.
• High-Capacity Wind and Solar Inverters: Maximizing energy conversion efficiency in renewable energy infrastructures.
• HVDC and Power Grid Converters: Crucial for stable long-distance power transmission and grid management.
• Heavy Industrial Automation and Control: Enabling robust and responsive control in demanding automated processes.

Why Choose This Model?

The Mitsubishi CM1200DW-34T stands out as a premier choice for professionals seeking uncompromising performance and reliability. It delivers an impressive 1200 A at 1700 V, setting a high standard for high-voltage power applications. Leveraging Mitsubishi’s renowned trench-gate IGBT architecture, this module ensures not only exceptional switching efficiency but also superior thermal stability, crucial for sustained operation. Engineered for rugged, high-demand environments, the CM1200DW-34T is built to withstand rigorous industrial conditions. Its design makes it ideally suited for critical infrastructure such as power grids and advanced transportation systems, where durability and consistent performance are paramount. Invest in the CM1200DW-34T for a proven solution that empowers your most challenging power electronics projects.
