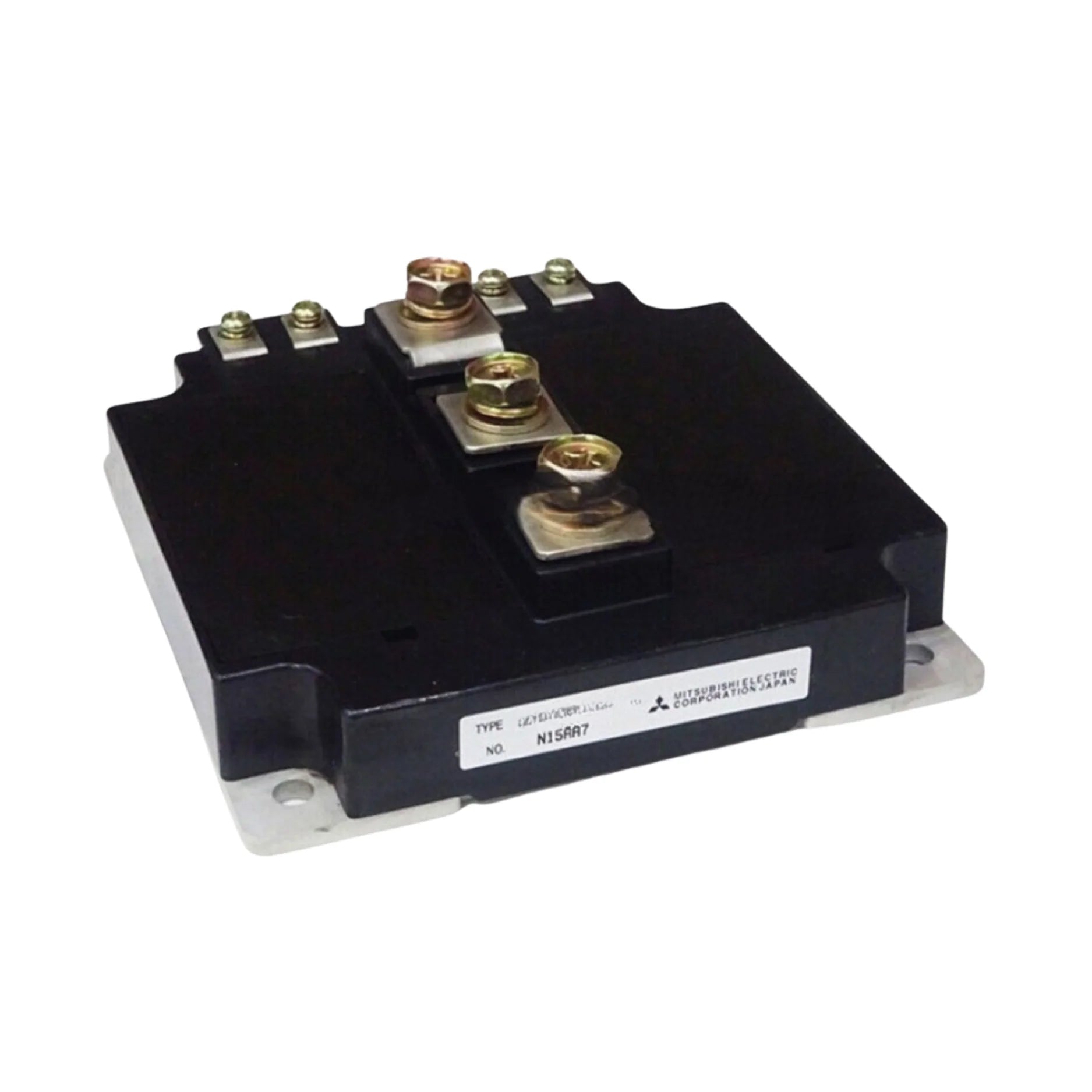

Mitsubishi CM1000E3UA-24D

Overview

The Mitsubishi CM1000E3UA-24D is a state-of-the-art dual-pack IGBT module meticulously engineered for the most demanding high-power applications. With an impressive rating of 1000 A and 1200 V, this module is a cornerstone for achieving unparalleled efficiency and reliability in large industrial systems. Its core design features an insulated base, enabling superior thermal management and robust performance even in strenuous operational environments. Ideal for critical functions in motor drives, advanced traction systems, and sophisticated power inverters, the CM1000E3UA-24D stands as a testament to Mitsubishi Electric's commitment to cutting-edge power electronics.

This IGBT module is strategically designed to minimize energy losses and enhance overall system longevity, making it a crucial component for modern industrial infrastructure aiming for sustainable and efficient operations. Experience the difference that premium Mitsubishi Electric engineering brings to your high-power applications.

Key Features

• High Voltage and Current Capability: Boasts a Collector-Emitter Voltage (Vce) of 1200 V and a Continuous Collector Current (Ic) of 1000 A, perfectly suited for heavy-duty power switching.
• Dual IGBT Configuration: Incorporates a dual IGBT architecture complete with built-in free-wheeling diodes, optimizing efficiency and simplifying circuit design.
• Advanced Thermal Management: Features an insulated base, providing exceptional heat dissipation and ensuring stable performance under varying thermal loads.
• Minimized Conduction Losses: Engineered with a low saturation voltage (Vce(sat) typical of ~2.1 V) to significantly reduce power loss during operation.
• Rapid Switching Characteristics: Designed for high-speed switching frequencies, facilitating dynamic and responsive power control in demanding applications.
• Robust and Reliable Package: Housed in a rugged, chassis-mountable package, ensuring durability and consistent performance in challenging industrial settings.
• Optimized for High-Frequency: Specifically ideal for high-frequency inverter applications, where stable and efficient power conversion is paramount.

Technical Specifications

• Part Number: CM1000E3UA-24D
• Manufacturer: Mitsubishi Electric
• Configuration: Dual-pack
• Vce (Max): 1200 V
• Ic (Rated): 1000 A
• Vce(sat): ~2.1 V typical
• Mounting Type: Chassis mount
• Package: Isolated base module
• Operating Temperature: –40 °C to +150 °C (Tj)
• Isolation Voltage: ≥2500 V
• Switching Frequency: Up to 10 kHz

Applications

The versatility and robust performance of the Mitsubishi CM1000E3UA-24D make it an indispensable component across a broad spectrum of high-power industrial and commercial applications:

• High-Power Inverters: Essential for converting DC to AC power in various industrial setups, ensuring stable and efficient energy flow.
• Industrial Motor Drives: Provides precise and efficient control for large industrial motors, enhancing performance and energy savings.
• Traction Systems and Electric Locomotives: Crucial for the reliable operation of electric transportation systems, from trains to heavy-duty vehicles.
• Renewable Energy Converters: Facilitates efficient power conversion in solar and wind energy systems, maximizing energy harvest.
• Power Grid and UPS Systems: Utilized in critical power infrastructure for grid stabilization and uninterruptible power supplies, ensuring continuous operation.

Why Choose This Model?

Opting for the Mitsubishi CM1000E3UA-24D IGBT module means investing in superior power management and long-term reliability. This module stands out due to several key advantages:

• Exceptional Current Handling: Engineered to support extremely high current switching, making it suitable for the most demanding power applications.
• Optimized Efficiency: The dual IGBT architecture with integrated free-wheeling diodes significantly enhances overall system efficiency, reducing operational costs.
• Built for Durability: Designed for extended operation under severe thermal stress, ensuring consistent performance and a prolonged lifespan in industrial environments.
• Industrial and Transportation Grade: Perfectly suited for robust industrial and transportation solutions where reliability and performance are non-negotiable.
• Mitsubishi Electric Quality: Benefits from Mitsubishi Electric's renowned expertise and proven track record in manufacturing high-quality, dependable power electronics.

Order Now

The high-performance Mitsubishi CM1000E3UA-24D IGBT module is readily available to elevate your industrial power applications. We offer worldwide shipping to ensure you receive this critical component no matter your location.

This product is a prime example of our Mitsubishi IGBT Modules collection, specifically curated for high-efficiency power conversion and unwavering reliability across various industrial automation tasks. We encourage you to explore our complete range of Mitsubishi IGBT Modules to discover more innovative solutions.

Furthermore, broaden your search within our main Power Electronics Components category, where you can find an extensive selection of diodes, thyristors, GTOs, MOSFETs, and other cutting-edge semiconductor solutions to meet all your power electronic needs.
