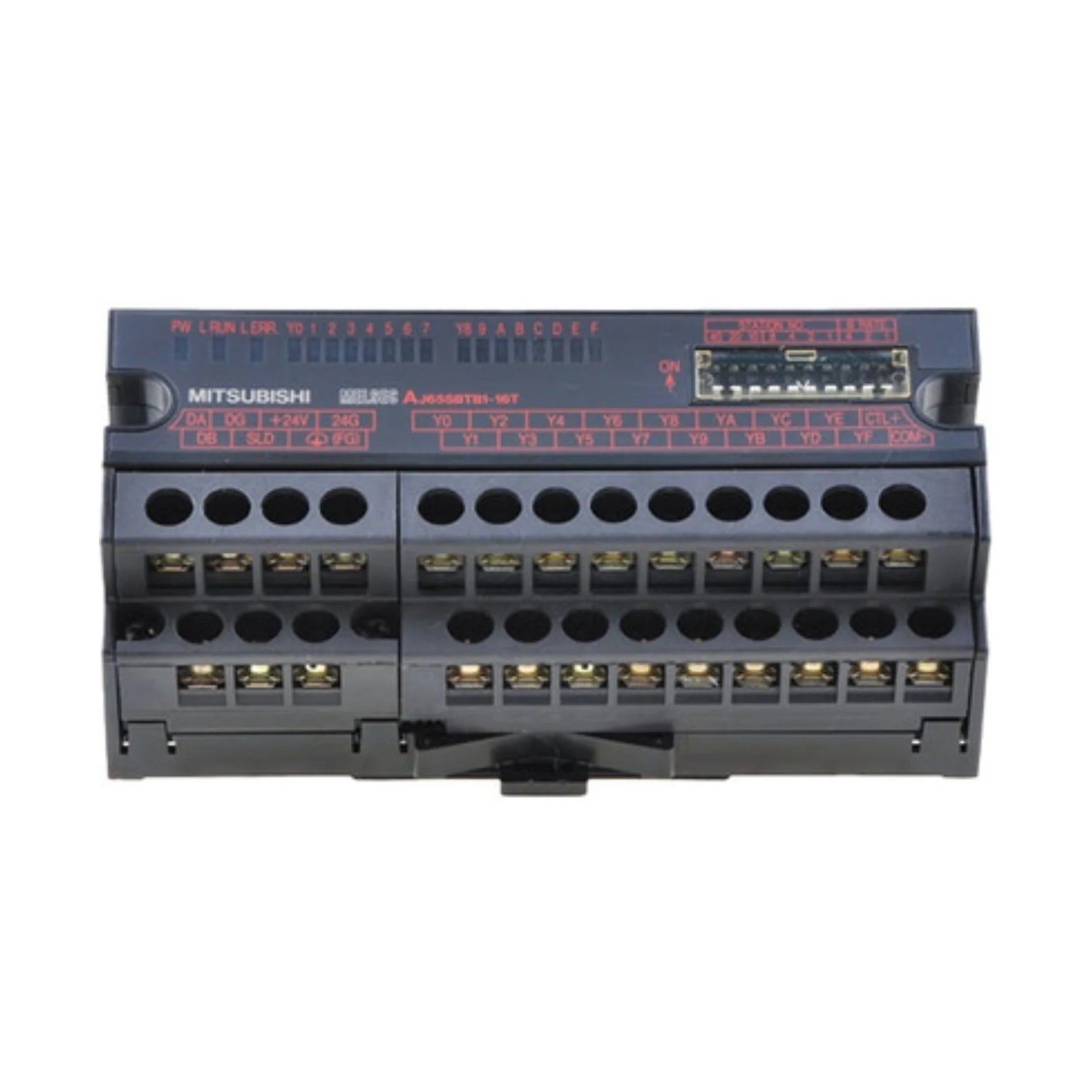

Mitsubishi AJ65SBTB1-16T

Overview

The Mitsubishi AJ65SBTB1-16T is a high-performance 16-point transistor output module engineered for seamless integration into CC-Link remote I/O systems. This robust module delivers precise and rapid output control, making it indispensable for a wide array of distributed automation applications. Its exceptionally compact design, coupled with convenient screw terminal connections, makes it an ideal solution for cabinet installations where space optimization is paramount without compromising on functionality or reliability.

Key Features

• Output Points: 16 digital outputs for comprehensive control.
• Output Type: Transistor (sink type) ensuring stable and efficient switching.
• Rated Load Voltage: Versatile 12/24V DC compatibility.
• Rated Load Current: Robust 0.5A per point, supporting various industrial loads.
• Maximum Current per Common: High capacity of 3.6A, enhancing system stability.
• Leakage Current when OFF: Ultra-low 0.25 mA or less, minimizing power waste and improving precision.
• Response Time: Rapid 1.5 ms, enabling quick and accurate system responses.
• Wiring: User-friendly screw terminal block for secure and straightforward connections.
• Mounting: Flexible DIN rail or panel mount options for diverse installation needs.
• Communication: Efficient CC-Link protocol, occupying just 1 station for optimized network usage.

Technical Specifications

• Model: AJ65SBTB1-16T
• Series: MELSEC CC-Link
• Power Supply: Standard 24V DC
• Internal Current Consumption: Low 50 mA for energy efficiency.
• Dimensions (W × H × D): Compact 118 × 50 × 40 mm, ideal for space-constrained environments.
• Weight: Lightweight at approximately 0.18 kg, facilitating easy handling and installation.
• Operating Temperature: Wide range from 0°C to 55°C, suitable for various industrial settings.
• Storage Temperature: Broad range from -25°C to 75°C, ensuring durability and longevity.
• Certifications: CE, UL, cUL, UKCA, EAC compliant, guaranteeing international safety and quality standards.
• Environmental Compliance: RoHS compliant, adhering to environmental protection directives.

Applications

• Advanced distributed control systems
• High-efficiency factory automation setups
• Precision machine control panels
• Reliable process control systems
• Seamless remote I/O expansion within existing CC-Link networks

Why Choose This Model?

The Mitsubishi AJ65SBTB1-16T stands out as a superior choice for modern industrial automation due to its exceptional combination of features and benefits. Its compact design is a critical advantage, dramatically saving valuable space within control panels and enabling more streamlined system layouts. The integration of high-speed CC-Link communication ensures not only rapid but also exceptionally reliable data exchange across your network, minimizing latency and enhancing overall system responsiveness. With flexible mounting options, including both DIN rail and panel mount, this module adapts effortlessly to various installation environments, offering unparalleled versatility. The inclusion of screw terminals facilitates straightforward connections, significantly reducing installation time and complexity. Furthermore, its robust performance, specifically designed to withstand demanding industrial environments, guarantees reliable output control and long-term operational stability, making the AJ65SBTB1-16T a wise investment for optimizing your automation infrastructure.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi AJ65SBTB1-16T transistor output module. Renowned for its reliability, compact form factor, and advanced features, this module is an essential component for any high-performance CC-Link system. We are pleased to offer this superior product with global shipping, ensuring that you can enhance your operations no matter your location. Secure your Mitsubishi AJ65SBTB1-16T today and experience the difference in precision and efficiency.
