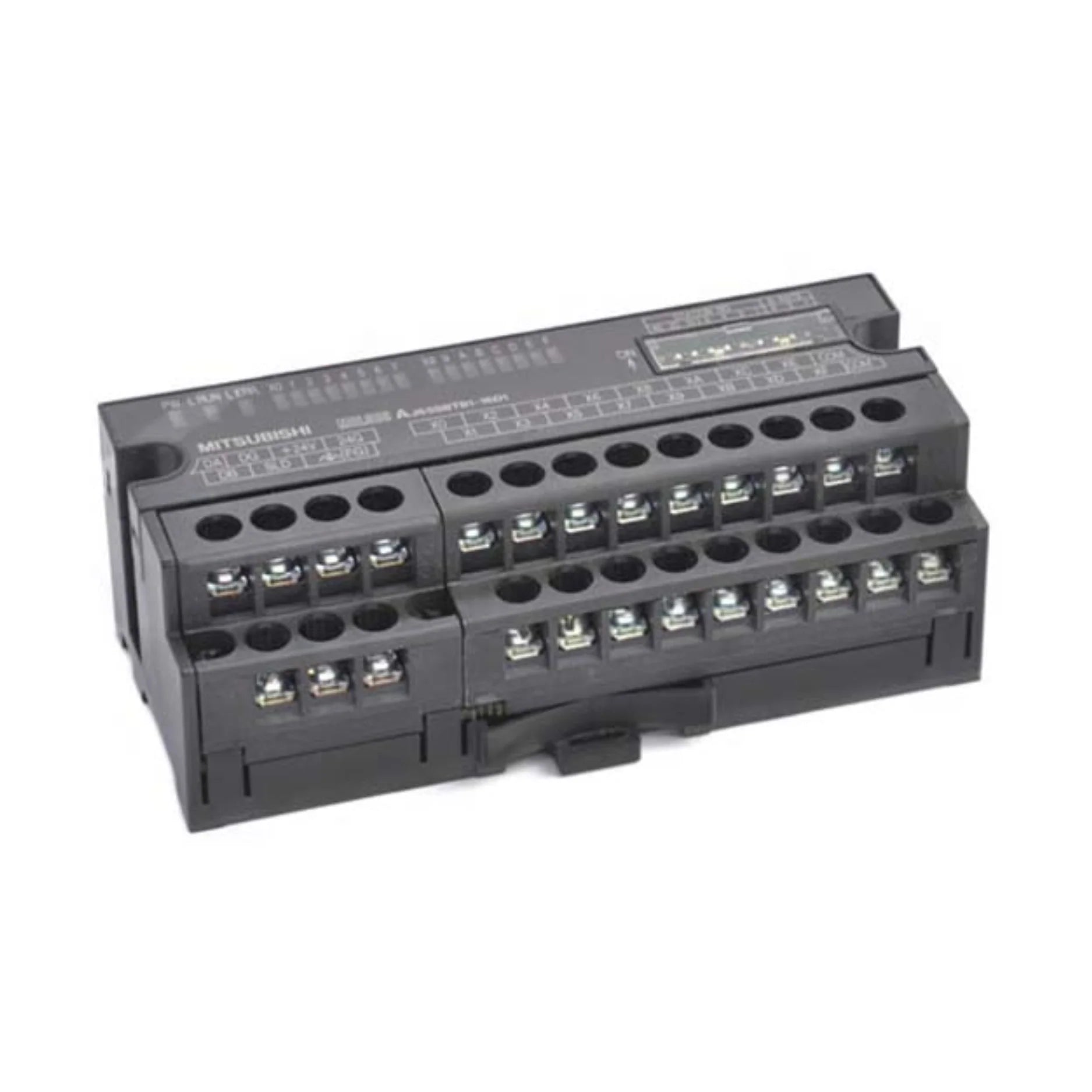

Mitsubishi AJ65SBTB1-16D

Overview

The Mitsubishi AJ65SBTB1-16D is a high-performance 16-point digital input module meticulously engineered for seamless integration into CC-Link remote I/O networks. This robust module operates efficiently at 24V DC and is designed to accommodate sink-type inputs, providing reliable data acquisition in diverse industrial environments. Its user-friendly screw terminal block simplifies wiring, ensuring quick and hassle-free installation. Compact in design and easily mountable on a DIN rail, the AJ65SBTB1-16D is the ideal solution for establishing efficient and distributed control systems within modern industrial automation setups. This module exemplifies Mitsubishi Electric's commitment to delivering advanced, dependable components that enhance operational efficiency and system integrity.

Key Features

• Series: AJ65SBTB1 (Specifically designed for CC-Link communication).
• Input Type: Digital, Sink type, ensuring compatibility with a wide range of industrial sensors and devices.
• Rated Voltage: 24V DC, a standard for industrial control systems, offering broad compatibility.
• Number of Inputs: 16 independent input channels, providing extensive connectivity for field devices.
• Connection Type: Robust screw-type terminal block for secure and straightforward wiring.
• Input Current: Approximately 7 mA per point, optimized for efficient power consumption.
• CC-Link Interface: Built-in, allowing for immediate and direct connection to CC-Link master stations.
• Response Time: Rapid response time of 10 ms or less, critical for time-sensitive applications.
• Mounting Method: Versatile DIN rail or direct panel mount options for flexible installation.
• Status Indication: Individual LED indicators for each input channel, facilitating easy diagnostics and status monitoring.

Technical Specifications

• Catalog Number: AJ65SBTB1-16D
• Rated Voltage: 24V DC ±10%
• Input Points: 16 (sink type)
• Input Current: 7 mA per point
• Common Terminal: 1 common per 16 points
• Response Time: ≤ 10 ms
• Insulation: Photocoupler isolation, providing enhanced protection against electrical noise and faults.
• Wiring Method: Screw terminal block
• Mounting: DIN rail or direct panel mount
• Operating Temperature: 0°C to 55°C
• Dimensions (Approx.): 173 x 63 x 33 mm
• Weight (Approx.): 0.3 kg
• Certifications: CE, UL, RoHS compliant, ensuring adherence to international quality and safety standards.

Applications

The versatility and robust design of the Mitsubishi AJ65SBTB1-16D make it suitable for a wide array of industrial applications, including:

• Distributed Input Acquisition: Ideal for collecting diverse sensor data across expansive industrial facilities.
• CC-Link Field Network Systems: A cornerstone component for building and expanding high-speed CC-Link communication networks.
• Packaging and Bottling Machinery: Enhances automation and control in high-speed manufacturing lines.
• Assembly and Conveyor Lines: Facilitates precise control and monitoring of materials handling and production processes.
• Factory Automation Input Modules: A fundamental building block for various factory automation tasks requiring reliable digital input processing.

Why Choose This Model?

Opting for the Mitsubishi AJ65SBTB1-16D digital input module brings a multitude of advantages to your industrial automation projects:

• Reliable Input Collection: With 16 dedicated digital channels, this module ensures accurate and consistent data acquisition from your field devices, minimizing errors and maximizing operational integrity.
• Seamless CC-Link Integration: Experience effortless connectivity and high-speed data exchange within your existing or new CC-Link remote I/O networks, leading to streamlined communication and improved system performance.
• Compact and Space-Saving Design: Its optimized footprint makes it an excellent choice for decentralized control panels and applications where space is at a premium, contributing to more efficient panel layouts.
• Simplified Wiring: The inclusion of a sturdy terminal block significantly simplifies the field installation process, reducing wiring time and potential for errors, thus saving valuable labor costs.
• Industrial-Grade Durability: Built to withstand the rigors of harsh industrial environments, featuring robust insulation and construction for long-term reliability and performance even in demanding conditions.

Order Now

Elevate your industrial control systems with the precision and reliability of the Mitsubishi AJ65SBTB1-16D remote input module. This essential component for advanced automation is readily available and ships worldwide, ensuring that your operational needs can be met wherever you are located. Enhance your system
