Lenze SM100

Overview

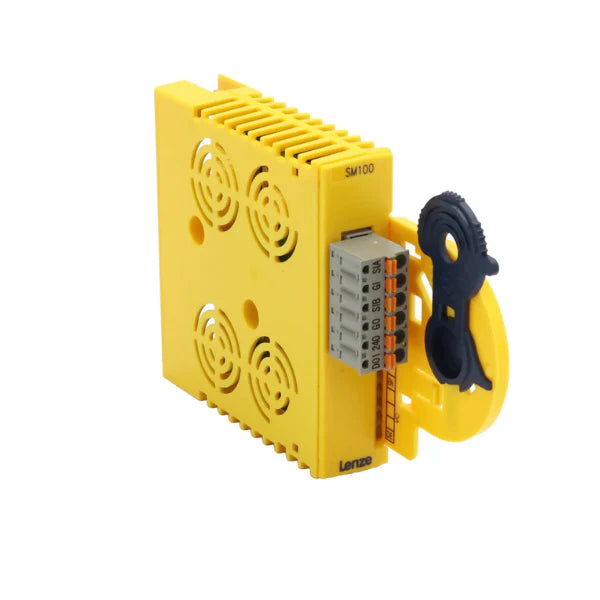

Unlock the full potential of your Lenze drive systems with the Lenze SM100 USB Diagnostic Interface Module. Engineered for precision and efficiency, the SM100 provides a crucial link between your PC and Lenze inverters, facilitating direct and robust communication. This essential tool is designed to streamline field commissioning, enable thorough diagnostics, and simplify firmware updates across various Lenze drive series. Seamlessly integrating with leading Lenze engineering software like EASY Starter and Engineer, the SM100 ensures a smooth and intuitive user experience, empowering technicians and engineers to maintain optimal drive performance with unparalleled ease.

Key Features

• Universal Connectivity: Equipped with a standard USB interface for seamless connection to your PC and an RJ port for direct communication with the drive's DIAG port.
• Broad Compatibility: Supports a wide range of Lenze drive series, including the 8200, 8400 StateLine/HighLine, and 9400 HighLine, offering a versatile solution for diverse applications.
• Plug-and-Play Driver Support: Achieves instant recognition and functionality when used with Lenze EASY Starter software, eliminating complex setup procedures.
• Intuitive Status Indicators: Features clear Power and communication LEDs, providing immediate visual feedback on the module's operational status.
• Optimized for Portability: Its compact and lightweight design makes it an ideal instrument for field service, allowing for easy transportation and use in various industrial environments.
• Self-Powered Convenience: Operates entirely via USB power, negating the need for external power adapters and simplifying on-site deployment.
• Robust Industrial Design: Housed in a durable casing, ensuring reliable performance and longevity even in demanding industrial settings.

Technical Specifications

• Model Number: SM100
• Interfaces:
  • USB 2.0 Type A (for connection to host PC)
  • RJ50 10-pin (for connection to Lenze DIAG port)
• Cable Compatibility: Fully compatible with EWL0071 and EWL0070 cable series for flexible connection options.
• Dimensions: Module body approximately 70 mm in length, plus an integrated cable for practical use.
• Operating Temperature: Designed to perform reliably within a temperature range of 0°C to 50°C.
• Weight: Approximately 0.15 kg, contributing to its extreme portability.
• Certifications: CE compliant, ensuring adherence to European safety, health, and environmental protection requirements.

Applications

• Precise Parameter Configuration: Facilitates accurate and efficient setup and adjustment of operational parameters for various Lenze drives.
• On-Site Service Diagnostics: Enables comprehensive diagnostic checks in the field, quickly identifying and resolving potential issues to minimize downtime.
• Seamless New Installation Commissioning: Essential for the swift and correct setup of new Lenze drive installations, ensuring optimal performance from day one.
• Reliable Firmware Flashing: Supports secure and efficient updating of drive firmware, keeping your systems current with the latest enhancements and features.
• Advanced Fault Management: Allows for real-time monitoring of fault codes, offering capabilities for timely resets and proactive maintenance.

Why Choose This Model?

The Lenze SM100 stands out as an indispensable tool for anyone managing Lenze drive systems. Its commitment to reliability ensures stable and fast communication, which is critical for accurate diagnostics and parameter access. Unlike other solutions, the SM100 offers tool-free setup, integrating instantly with Lenze software to save valuable time and effort. Its unparalleled support for multiple drive families—including the 8200, 8400, and 9400 series—means you only need one device to manage a diverse range of Lenze equipment. Furthermore, its lightweight and portable design makes it the ultimate field-ready companion, powered conveniently by USB to eliminate the need for external power sources. Invest in the SM100 for a streamlined, efficient, and robust solution to your drive management needs.

Order Now

Enhance your diagnostic capabilities and optimize your Lenze drive systems today. The Lenze SM100 USB Diagnostic Interface Module is readily available and poised for immediate worldwide shipping. Secure your unit now to experience superior drive management and ensure peak operational efficiency.
