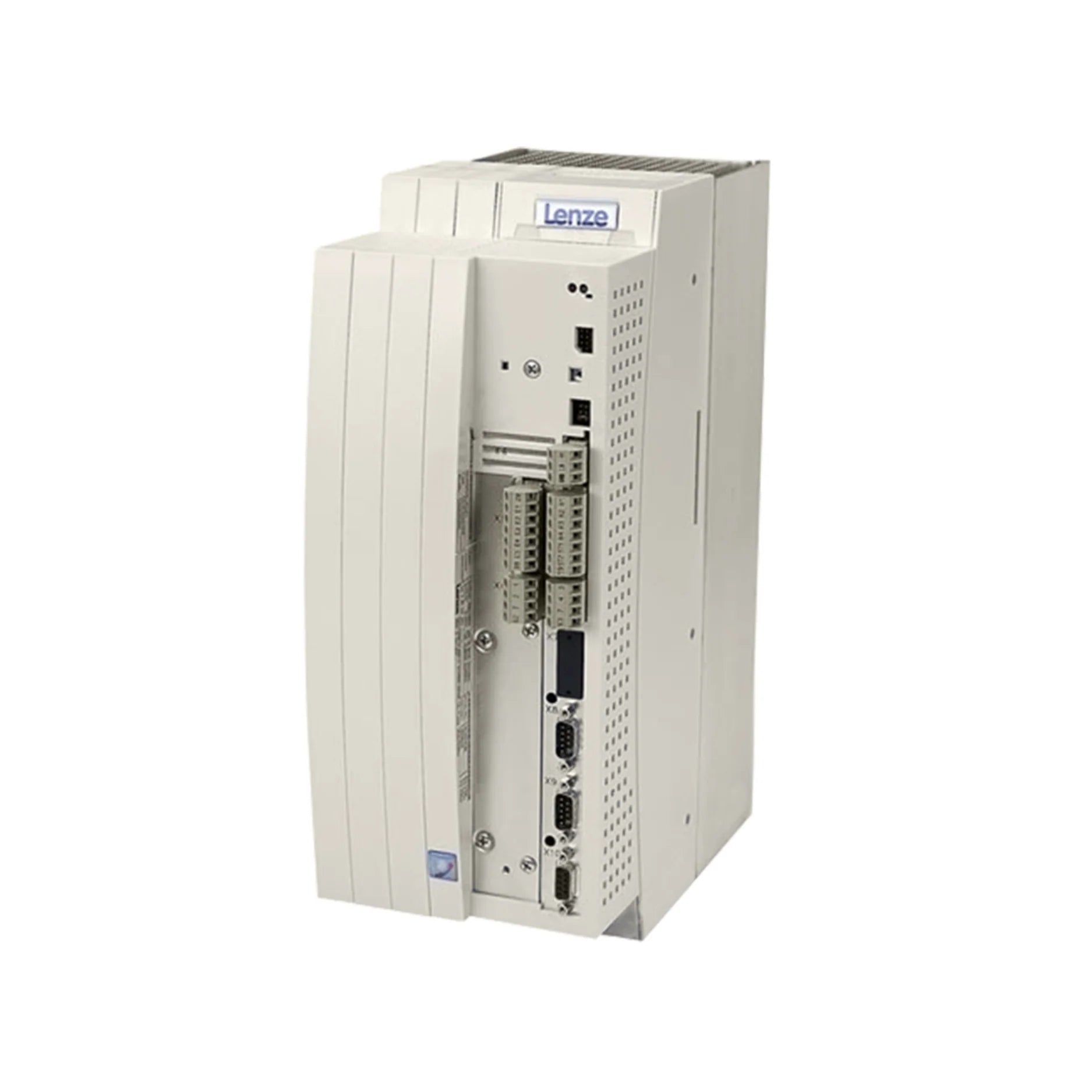

Lenze EVS9325-ESV004

Overview

The Lenze EVS9325-ESV004 is a state-of-the-art 5.5 kW servo drive, engineered for the most demanding industrial automation tasks. This compact and highly efficient unit provides precise control over three-phase AC motors, ensuring optimal performance and reliability across a wide range of applications. Designed for seamless integration into existing systems, the EVS9325-ESV004 combines advanced control capabilities with robust construction, making it an ideal choice for businesses seeking to enhance their operational efficiency and precision.

Its intelligent design focuses on delivering high power within a minimal footprint, contributing to space-saving solutions in control cabinets without compromising on power or functionality. With an input voltage range of 400–480 V AC, this servo drive is ready for global industrial environments, offering consistent and dependable operation.

Key Features

• Power Output: A substantial 5.5 kW (7.4 HP) for versatile motor control.
• Input Voltage: Highly compatible 3-phase, 400–480 V AC input for diverse industrial power grids.
• Output Current:
  • At 8 kHz: 13 A
  • At 16 kHz: 9.7 A
• Maximum Output Current:
  • At 8 kHz: 19.5 A
  • At 16 kHz: 14.6 A
• Braking Power:
  • Continuous: 11 kW, ensuring reliable deceleration.
  • Peak: 25 kW, for high-demand braking scenarios.
• Minimum Brake Resistance: 27 Ω ±10%, for optimal braking performance.
• Power Loss: Efficient operation with a power loss of only 260 W.
• Compact Dimensions: Measuring 350 mm (H) × 135 mm (W) × 250 mm (D), perfect for space-constrained installations.
• Lightweight Design: At just 7.5 kg, facilitating easier installation and handling.
• Enclosure: IP20 protection class, safeguarding against solid objects larger than 12.5 mm.
• Mounting: Designed for convenient panel-mounted installation.
• Cooling: Integrated cooling system to maintain optimal operating temperatures and extend lifespan.
• Permissible Motor Cable Length (Shielded): Up to 50 m, offering flexibility in system layout.

Technical Specifications

The Lenze EVS9325-ESV004 is engineered with precision to meet stringent industrial requirements. Its robust electrical and mechanical specifications ensure long-term reliability and superior performance in challenging industrial environments. This servo drive is a testament to Lenze's commitment to quality and innovation in industrial automation.

• Model Number: EVS9325-ESV004
• Brand: Lenze
• Product Type: Servo Drive
• Rated Power: 5.5 kW
• Input Phases: 3-phase
• Input Voltage Range: 400–480 V AC
• Operating Frequency: 8 kHz / 16 kHz
• Protection Class: IP20
• Mounting Type: Panel Mount
• Cooling Method: Integrated Cooling
• Compliance: Designed to meet relevant industrial standards for safety and performance.

Applications

The versatility and precision of the Lenze EVS9325-ESV004 make it an invaluable component across a multitude of industrial applications:

• Conveyor Systems: Providing smooth and accurate speed control for efficient material flow.
• Material Handling Equipment: Enhancing the precision and speed of robotic arms and automated guided vehicles (AGVs).
• Packaging Machinery: Ensuring high-speed and accurate synchronization for optimal packaging processes.
• Pumps and Fans: Delivering energy-efficient and precise flow control in various industrial fluid dynamics.
• General Industrial Automation: A cornerstone for any automation task requiring precise motion control and energy efficiency, from textiles to food processing.

Why Choose This Model?

Opting for the Lenze EVS9325-ESV004 means investing in unparalleled performance and reliability for your industrial operations. This servo drive stands out for several compelling reasons:

• Precise Motor Control: Experience industry-leading accuracy in speed and torque management, crucial for intricate processes.
• Energy Efficiency: Engineered to optimize energy consumption, significantly reducing operational costs and supporting sustainable practices.
• Compact Design: Its remarkably small footprint allows for greater flexibility in panel design and space optimization, a key advantage in modern industrial facilities.
• Robust Construction: Built with high-quality components and an IP20 enclosure, it withstands the rigors of demanding industrial settings, ensuring longevity and consistent performance.
• Flexible Integration: Designed for seamless compatibility and easy integration into a wide array of industrial automation systems, minimizing downtime during setup.
• Global Reliability: Backed by Lenze's reputation for quality and innovation, ensuring a dependable solution for your critical applications worldwide.

Order Now

Elevate your industrial automation capabilities with the Lenze EVS9325-ESV004 servo drive. Experience the perfect blend of precision, efficiency, and durability that only Lenze can offer. For more options in this range, explore our Lenze 9300 Servo Inverters EVS Series. Discover our comprehensive selection of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules, all designed for high-performance industrial applications.

Contact us today to place your order or to speak with one of our experts about how the Lenze EVS9325-ESV004 can meet your specific project requirements. We offer worldwide shipping to ensure your operations are powered by the best, wherever you are.
