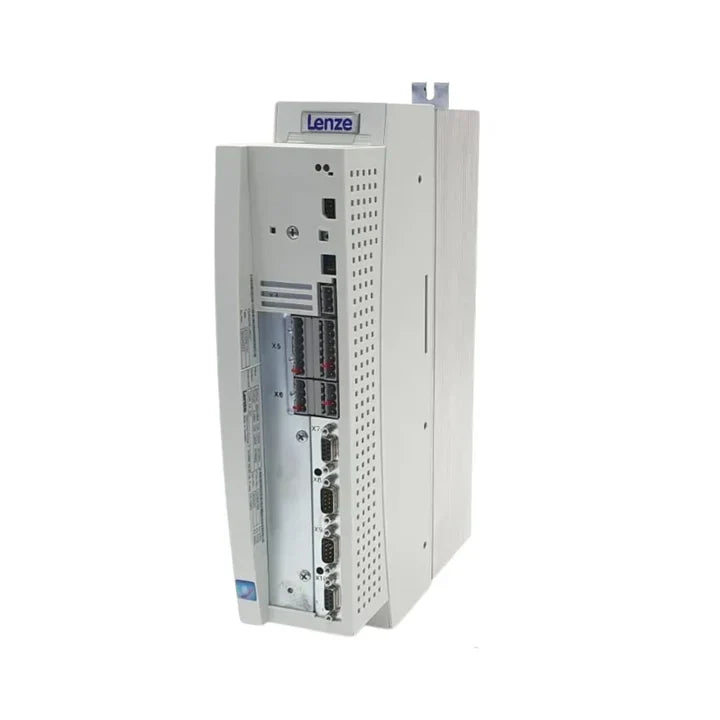

Lenze EVS9324-ERV004

Overview

The Lenze EVS9324-ERV004 is a high-performance 2.2 kW servo inverter from the acclaimed Lenze 9300 series, meticulously engineered for demanding industrial automation environments. This model boasts integrated resolver feedback, ensuring exceptional precision and reliability in motor control applications. Enhanced by the V004 firmware variant, it delivers extended functionality, making it an ideal solution for mid-power systems that require compact design, precise motion, and robust performance. Whether you are upgrading existing machinery or designing new automation solutions, this servo inverter provides the stability and control necessary for optimal operational efficiency. Its versatility and advanced features make it a cornerstone for a wide array of industrial applications, providing seamless integration and superior controllability.

Key Features

• Rated Power: 2.2 kW (3.0 HP) for efficient mid-range applications.
• Input Voltage: 3-phase 400 V AC, ensuring compatibility with standard industrial power supplies.
• Feedback Type: Resolver, offering stable and noise-resistant position detection.
• Variant: V004, providing an extended feature set for advanced and customized control strategies.
• Control Modes: Advanced resolver-based and sensorless vector control for flexible and precise motor management.
• Integrated Brake Chopper: Facilitates dynamic braking and improved safety.
• Compact IP20 Modular Housing: Space-saving design for efficient panel integration.
• High-Performance Regulation: Delivers superior motor regulation and comprehensive diagnostic capabilities.

Technical Specifications

• Catalog Number: EVS9324-ERV004
• Input Voltage: 3 × 400 V AC ±10%
• Output Frequency: 0–599 Hz
• Feedback Interface: Resolver
• Protection Class: IP20
• Cooling: Internal fan
• Mounting: Panel-mounted
• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)
• Certifications: CE, UL, cUL

Applications

• Mid-range Automation Systems: Perfectly suited for a variety of general industrial automation tasks.
• Resolver-Based Feedback Systems: Ideal for machines where stable and accurate position feedback is critical.
• Multi-Axis Systems: Enhances performance in complex machinery such as packaging, processing, and CNC applications.
• OEM Machines: Meets the demands of original equipment manufacturers requiring precise and repeatable motion control.
• Scalable Platforms: Offers flexibility through adaptable firmware variants for evolving system requirements.

Why Choose This Model?

The Lenze EVS9324-ERV004 stands out due to its unique combination of power, precision, and adaptability. The V004 firmware provides advanced customization options, allowing engineers to fine-tune operations to specific application needs. Its resolver input ensures unparalleled stability and noise immunity, a crucial factor in achieving consistent and accurate motion control in electrically noisy environments. With a robust 2.2 kW output, this inverter is designed to handle a wide range of versatile motion systems. Its modular and compact IP20 design maximizes panel space efficiency, making it an excellent choice for installations where footprint is a concern. As part of Lenze’s highly reliable 9300 automation platform, this model guarantees long-term durability and access to a comprehensive ecosystem of compatible components.

Order Now

Elevate your industrial automation capabilities with the Lenze EVS9324-ERV004 servo inverter. This precision-engineered device is readily available and ships worldwide, ensuring you can quickly implement advanced motion control into your systems. Browse our extensive range of Lenze industrial automation products, including an array of frequency inverters, high-performance servo drives, reliable motors, and sophisticated control modules to complete your high-performance industrial solutions. Contact us today to secure your order and enhance your operational efficiency.
