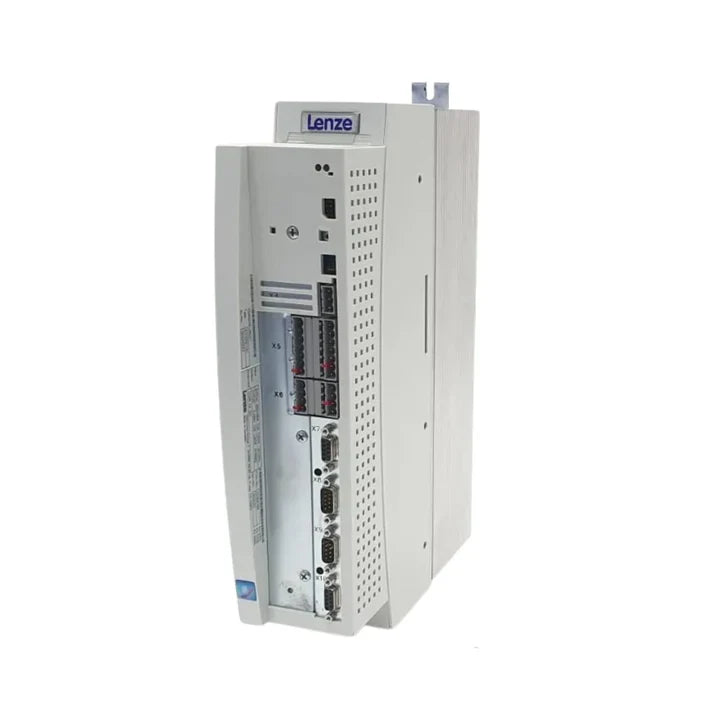

Lenze EVS9324-ER

Overview

The Lenze EVS9324-ER is a high-performance 2.2 kW servo inverter from the renowned 9300 series, meticulously engineered to meet the demands of advanced automation applications requiring precise resolver feedback. This sophisticated drive delivers exceptional accuracy and unwavering reliability, leveraging robust vector control to ensure optimal performance. Its compact design makes it an ideal solution for integration into space-constrained yet high-performance industrial automation systems. Experience unparalleled control and dynamic precision with this essential component for modern machinery.

Key Features

• Rated Power: 2.2 kW (3.0 HP) for versatile application suitability
• Input Voltage: 3-phase 400 V AC ensures broad compatibility
• Feedback Type: Resolver, providing robust and accurate position sensing
• Control Modes: Advanced sensorless vector and resolver-based control for superior motor management
• Integrated Brake Chopper: Enhances safety and control in dynamic braking situations
• Modular IP20 Housing: Offers flexible integration and protection
• High Responsiveness: Delivers rapid and accurate machine reactions
• Positioning Precision: Guarantees highly accurate and repeatable movements

Technical Specifications

• Catalog Number: EVS9324-ER
• Input Voltage: 3×400 V AC ±10%
• Output Frequency: 0–599 Hz
• Feedback Interface: Resolver
• Protection Class: IP20
• Cooling: Internal fan for efficient heat dissipation
• Mounting: Panel-mounted for straightforward installation
• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)
• Certifications: CE, UL, cUL, ensuring international compliance and safety standards

Applications

The Lenze EVS9324-ER servo inverter excels in a diverse range of critical industrial applications, providing optimized motion control and operational efficiency:

• Automated Machinery with Resolver Feedback: Perfectly suited for systems where precise position and speed control are paramount.
• Packaging and Material Handling Systems: Enhances throughput and accuracy in demanding conveying and packaging lines.
• Synchronized Motion in Industrial Lines: Ensures seamless coordination across multiple axes for complex production processes.
• OEM Machines Needing Compact and Reliable Inverters: An excellent choice for original equipment manufacturers seeking robust and space-saving solutions.
• Positioning Applications with High Control Accuracy: Delivers consistent and repeatable exact positioning for critical industrial tasks.

Why Choose This Model?

The Lenze EVS9324-ER stands out as a superior choice for your automation needs due to its blend of advanced technology and practical benefits:

• Resolver-Based Control: Provides exceptionally robust and reliable feedback, ideal for harsh industrial environments and applications demanding high accuracy.
• Optimal 2.2 kW Output: Perfectly matched for mid-sized applications, offering an ideal balance of power and efficiency without oversizing.
• Compact Design: Its small footprint allows for easy integration into control panels, maximizing cabinet space and facilitating system design.
• Part of the Modular Lenze 9300 Family: Benefits from the proven reliability and extensive compatibility of the renowned Lenze 9300 series, ensuring seamless integration and future scalability.
• Stable and Precise Motion Performance: Engineered for unparalleled stability and precision, guaranteeing consistent and high-quality results in all operational modes.

Order Now

Elevate your industrial automation capabilities with the Lenze EVS9324-ER servo inverter. This exceptional product is readily available for immediate acquisition and ships worldwide, ensuring that your critical projects can proceed without delay. For further exploration of options within this distinguished range, we invite you to return to the Lenze 9300 Servo Inverters EVS Series. Additionally, broaden your search by exploring our comprehensive selection of Lenze industrial automation products, which includes an array of advanced frequency inverters, powerful servo drives, efficient motors, and intelligent control modules—all designed to deliver high-performance solutions for the most demanding industrial applications.
