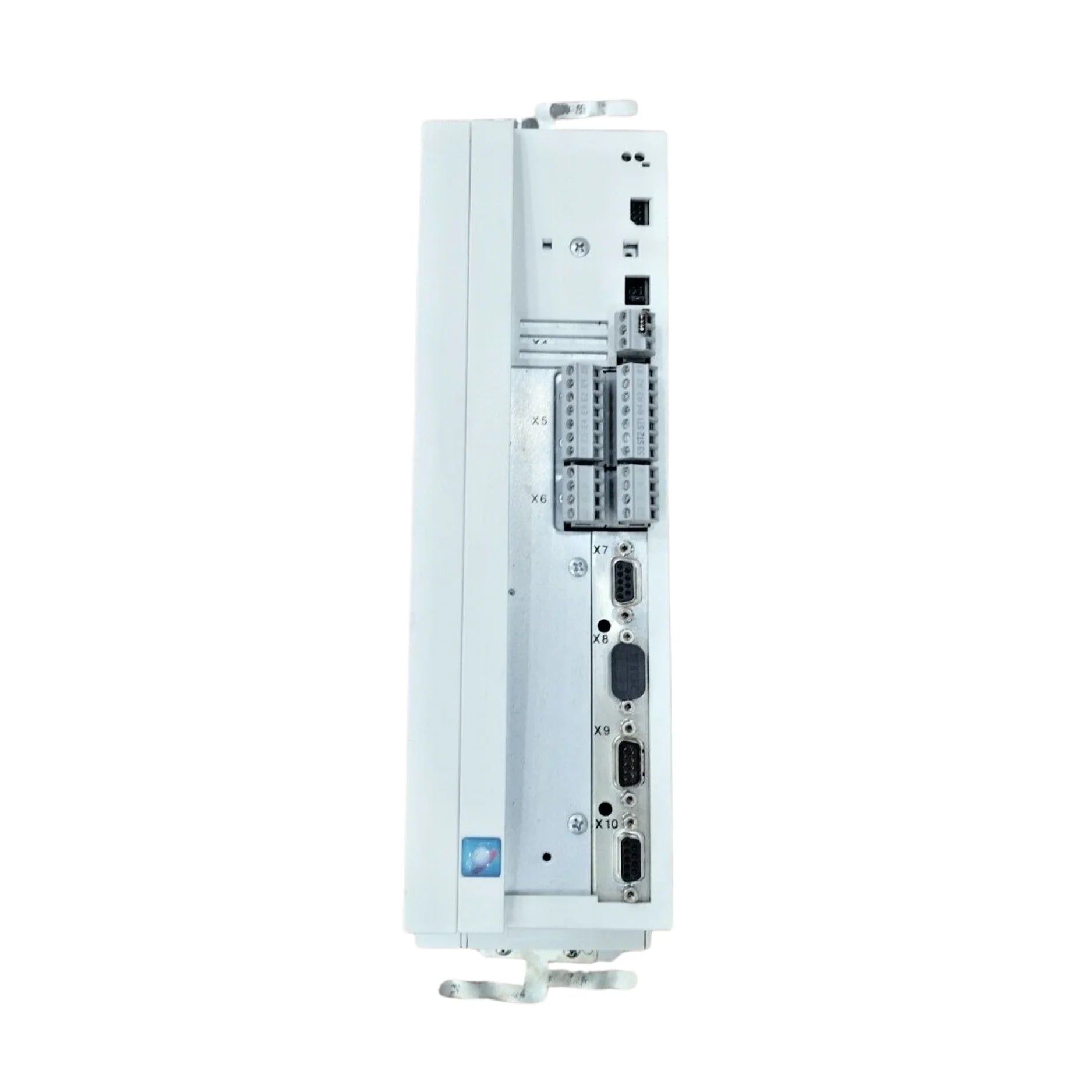

Lenze EVS9324-EK

Overview

The Lenze EVS9324-EK is a powerful and versatile 2.2 kW servo inverter, meticulously engineered as part of Lenze's renowned modular 9300 series. This particular model stands out with its integrated EK extension, significantly enhancing its communication capabilities and enabling seamless integration into complex industrial automation environments. Designed for the precise vector control of both synchronous and asynchronous motors, the EVS9324-EK delivers exceptional reliability and high performance, making it an ideal choice for applications demanding accurate motion control and scalability. Its robust design ensures consistent operation, while its advanced features provide the flexibility needed for modern manufacturing and processing lines. This servo inverter is built to optimize productivity and reduce operational complexities, offering a competitive edge in any industrial setting.

Key Features

• Rated Power: 2.2 kW (equivalent to 3 HP), providing ample power for a wide range of industrial tasks.
• Input Voltage: 3-phase 400 V AC, ensuring compatibility with standard industrial power supplies.
• Control Modes: Advanced vector control, supporting both encoder-based and encoderless operations for optimal motor performance and flexibility.
• EK Extension: Facilitates robust integration with diverse control systems through various fieldbus options, enhancing communication and data exchange.
• Integrated Brake Chopper: Enhances safety and control by managing regenerative energy efficiently.
• Built-in Motion Control Features: Offers advanced functionalities for precise and dynamic motion sequences.
• Modular IP20 Design: Optimized for convenient and secure cabinet installation, adhering to industrial protection standards.

Technical Specifications

• Catalog Number: EVS9324-EK – ensuring precise identification and ordering.
• Input Voltage: 3×400 V AC ±10%, accommodating typical industrial power fluctuations.
• Output Frequency: A broad range of 0–599 Hz, suitable for diverse motor speed requirements.
• Protection Class: IP20, suitable for controlled indoor environments.
• Cooling: Efficient internal fan system maintains optimal operating temperatures.
• Mounting: Designed for straightforward panel-mounted installation.
• Operating Temperature: Operates reliably from 0 °C to +45 °C, with extended functionality up to +55 °C possible with appropriate derating.
• Communication Options: Flexible communication depends on the specific EK interface utilized, supporting protocols like CANopen and RS232.
• Certifications: Complies with international standards, including CE, UL, and cUL, guaranteeing quality and safety.

Applications

The Lenze EVS9324-EK servo inverter is exceptionally versatile, making it perfectly suited for a multitude of demanding industrial applications:

• Small to Mid-Sized Automation Systems: Provides precise control for integrated automation solutions.
• Material Handling and Conveyor Systems: Ensures smooth, efficient, and reliable movement of goods.
• Robotics and Machinery with Integrated Communication: Enhances the performance and connectivity of advanced robotic systems.
• OEM Applications Requiring Modular Drive Solutions: Offers flexibility and customization for original equipment manufacturers.
• Packaging and Processing Lines: Delivers high-speed and accurate control for optimized production workflows.

Why Choose This Model?

Choosing the Lenze EVS9324-EK means investing in a solution that combines exceptional performance with intelligent design. This servo inverter delivers its full 2.2 kW of power with outstanding efficiency and precise control, crucial for applications where accuracy is paramount. The pivotal EK extension significantly broadens its utility, supporting a wide array of communication protocols and ensuring seamless integration into your existing or new control architecture. Its modular design is a cornerstone of its appeal, allowing for flexible system integration and adaptability to evolving industrial requirements. As a key component of Lenze’s trusted 9300 inverter platform, the EVS9324-EK benefits from a legacy of engineering excellence and reliability. It is an ideal choice for both demanding OEM applications and complex industrial environments seeking robust and future-proof motion control.

Order Now

Elevate your industrial automation capabilities with the Lenze EVS9324-EK servo inverter. This high-performance unit is readily available and can be shipped worldwide, ensuring that your operations can benefit from its advanced features without delay. For further exploration of compatible options, please return to our comprehensive selection of Lenze 9300 Servo Inverters EVS Series. Additionally, discover our full range of Lenze industrial automation products, including frequency inverters, servo drives, motors, and control modules, all designed to deliver unparalleled performance for your most critical industrial applications.
