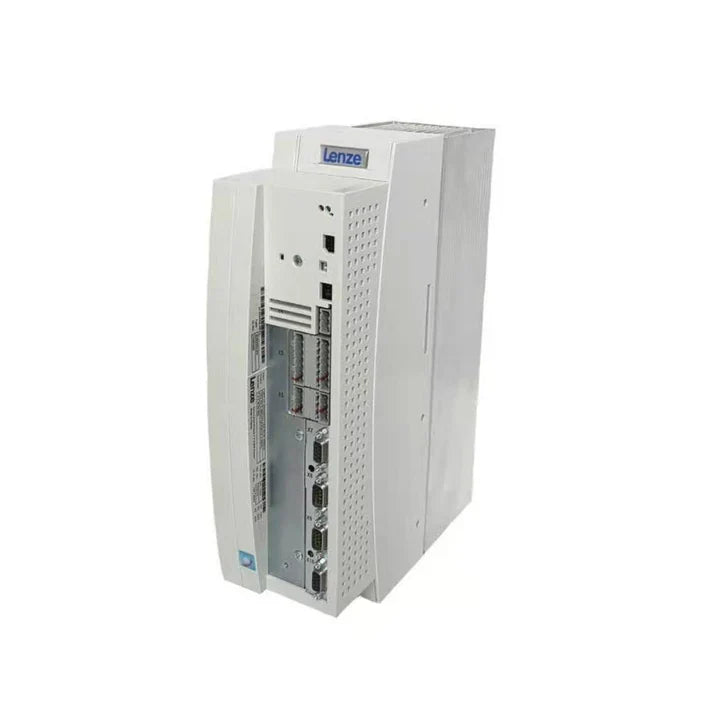

Lenze EVS9324-CSV003

Overview

The Lenze EVS9324-CSV003 is a state-of-the-art 2.2 kW servo inverter, an integral part of the renowned Lenze 9300 Servo Series. Engineered for superior motion control, this compact yet powerful unit boasts extended I/O capabilities, making it an exceptional choice for demanding industrial automation tasks. Its design prioritizes precision, flexibility, and seamless integration, offering a robust solution for a wide array of applications requiring meticulous control over speed, position, and torque.

This servo inverter is designed to excel in environments where space is at a premium, without compromising on functionality. It supports a variety of encoder types for precise feedback and offers modular fieldbus communication options, ensuring compatibility with modern automation networks. The integrated I/O significantly simplifies system architecture, reducing the need for external components and streamlining installation processes. The Lenze EVS9324-CSV003 represents a fusion of high performance, compact design, and versatile connectivity, delivering a reliable foundation for advanced motion control systems.

Key Features

• High-Performance Output: Delivers a substantial 2.2 kW (3.0 HP) of rated power for robust operation.
• Optimized Input Voltage: Operates efficiently on a 3-phase 400 V AC input, ensuring stable power delivery.
• Compact Design with Extended I/O: Features a space-saving compact form factor (CSV003 version) with integrated I/O expansion for enhanced system versatility.
• Versatile Control Modes: Supports precise control in position, speed, and torque modes, adaptable to various application requirements.
• Comprehensive Feedback Support: Compatible with both resolver and incremental encoders for accurate feedback and control.
• Integrated I/O Capabilities: Equipped with extended digital and analog connections, simplifying wiring and system integration.
• Flexible Communication Options: Includes fieldbus expansion slots, allowing for integration with common protocols like CANopen and Profibus.
• Durable & Easy to Install: Designed for panel-mounting with an IP20 protection rating, ensuring reliability in industrial environments.

Technical Specifications

• Catalog Number: EVS9324-CSV003
• Input Voltage: 3×400 V AC ±10%
• Output Frequency: 0–599 Hz
• Cooling Method: Integrated fan for efficient thermal management.
• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating options).
• Communication Interface: Expandable via modular fieldbus cards for seamless network integration.
• Protection Class: IP20, providing protection against solid objects.
• Certifications: CE, UL, cUL compliance, ensuring adherence to international safety and quality standards.
• Mounting: Designed for straightforward panel-mounted installation.

Applications

The Lenze EVS9324-CSV003 servo inverter is ideally suited for a diverse range of industrial applications demanding high precision, reliability, and expanded connectivity:

• OEM and Industrial Machines: Perfect for equipment requiring additional I/O functionality for complex control sequences.
• Robotics and Automation: Enhances the performance of robotic systems and automated processes with precise motion control.
• Conveyors and Material Handling: Provides accurate speed and position control for efficient material flow in logistics and manufacturing.
• Packaging Machinery: Ensures high-speed and precise operation in packaging lines, optimizing throughput and accuracy.
• Automation Systems with Encoder Feedback: Essential for systems that rely on accurate encoder-based feedback for closed-loop control.
• Space-Constrained Control Cabinets: Its compact design and integrated functionality make it an excellent choice for installations with limited physical space.
• Scalable Automation Networks: Supports modular communication protocols, enabling flexible integration into evolving automation infrastructures.

Why Choose This Model?

The Lenze EVS9324-CSV003 stands out as a superior choice for several compelling reasons:

• Unrivaled Precision: Delivers 2.2 kW of highly accurate servo control, ensuring optimal performance in critical applications.
• Enhanced System Versatility: The built-in I/O capabilities significantly improve system flexibility and reduce the need for external components, streamlining design and installation.
• Space-Saving Design: Its compact footprint is perfectly engineered for tight installation areas, allowing for more efficient use of cabinet space.
• Seamless Network Integration: Offers flexible communication options, making it easily adaptable to modern industrial automation networks and future expansions.
• Trusted Lenze Quality: Benefits from the proven reliability and performance excellence of Lenze's renowned 9300 servo platform, ensuring long-term operational stability.
• Global Availability & Support: As part of the Lenze product family, this model comes with the assurance of global availability and comprehensive technical support.

Order Now

Elevate your industrial automation capabilities with the Lenze EVS9324-CSV003 precision servo inverter. This high-performance unit is readily available and ships worldwide, ready to integrate seamlessly into your most demanding applications. Enhance your control systems with its advanced features, compact design, and reliable operation.

For additional options within this series, please refer to our full range of Lenze 9300 Servo Inverters EVS Series. Explore our extensive selection of Lenze industrial automation products, including cutting-edge frequency inverters, powerful servo drives, high-efficiency motors, and intelligent control modules, all designed for superior performance in high-stakes industrial environments.
