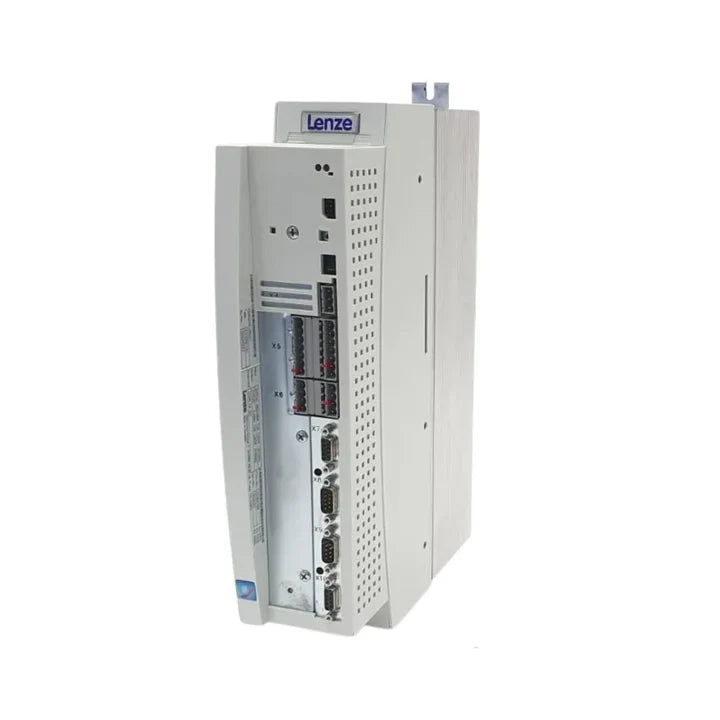

Lenze EVS9322-ERV004

Overview

The Lenze EVS9322-ERV004 represents a pinnacle of compact, high-performance servo control within the esteemed Lenze 9300 series. Designed for demanding automation tasks that require exceptional precision and reliability, this 0.75 kW servo inverter integrates advanced resolver feedback capabilities with the enhanced V004 firmware variant. It delivers unparalleled dynamic response and accurate motor positioning, making it an indispensable component for sophisticated motion control systems. Its robust design and versatile features ensure seamless integration and superior performance in diverse industrial applications, particularly where space is at a premium and precise speed and torque control are paramount. The EVS9322-ERV004 is engineered to optimize machine efficiency and productivity, providing a reliable foundation for your automation infrastructure.

Key Features

• Rated Power: 0.75 kW (1.0 HP) for efficient and compact drive solutions.
• Input Voltage: 3-phase 400 V AC, suitable for standard industrial power supplies.
• Feedback Type: Integrated resolver feedback for highly accurate and robust position control in harsh environments.
• Variant: V004 (extended application features), unlocking greater flexibility and advanced control options for complex applications.
• Control Modes: Supports both resolver-based and sensorless vector control, offering versatility for various motor types and application requirements.
• Integrated Brake Chopper: Enhances safety and performance by managing regenerative energy, crucial for applications with frequent braking.
• Modular IP20 Design: Provides robust protection against solid objects while maintaining a compact footprint for easy panel integration.
• Compact and Efficient: Optimized for panel mounting, saving valuable cabinet space and ensuring efficient heat dissipation for prolonged operational life.
• Global Compatibility: Designed to meet international standards, ensuring broad applicability and ease of deployment worldwide.

Technical Specifications

• Catalog Number: EVS9322-ERV004
• Input Voltage: 3×400 V AC ±10%
• Output Frequency: 0–599 Hz
• Protection Class: IP20
• Feedback Interface: Resolver
• Cooling: Internal fan
• Mounting: Panel-mounted
• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating)
• Certifications: CE, UL, cUL, assuring compliance with international safety and quality standards.

Applications

• Precision Machines with Resolver Feedback: Ideal for systems demanding exact synchronisation and positioning where resolvers are the preferred feedback device due to their ruggedness and accuracy.
• OEM Systems Needing Compact Automation: Perfect for original equipment manufacturers seeking a powerful yet space-saving drive solution for their machinery.
• Packaging, Handling, and Textile Equipment: Ensures smooth, fast, and precise movements for enhanced production efficiency and product quality.
• Synchronization of Small Motors in Multi-Axis Setups: Facilitates coordinated motion in complex automation lines, improving throughput and operational harmony.
• Entry-Level Robotics and CNC Platforms: Provides the fundamental control capabilities required for accurate and repeatable robotic actions and CNC machining.
• Material Handling Systems: Optimizes conveyor belts, sorting systems, and other material flow processes through precise speed and torque control.
• Automated Assembly Lines: Guarantees highly accurate component placement and assembly operations, reducing errors and increasing line efficiency.

Why Choose This Model?

The Lenze EVS9322-ERV004 stands out as an exceptional choice for a multitude of reasons, blending cutting-edge technology with practical industrial requirements. Its unique combination of enhanced V004 variant features provides unparalleled flexibility, allowing engineers to tailor the drive's performance to a wide array of application specifics. By leveraging resolver technology, this servo inverter guarantees superior motor control that is both highly accurate and remarkably robust, even in challenging industrial environments susceptible to electrical noise or extreme temperatures. With a robust 0.75 kW power rating, it is perfectly suited for managing small to medium-sized automation systems, offering a potent blend of efficiency and precision without over-engineering. Furthermore, its compact, modular design ensures ease of integration and implementation into existing or new control cabinets, minimizing installation time and maximizing operational space. As a proud member of the trusted Lenze 9300 drive family, the EVS9322-ERV004 benefits from Lenze's legacy of engineering excellence, reliability, and comprehensive global support, making it a wise and future-proof investment for any automation endeavor.

Order Now

Elevate your automation capabilities with the Lenze EVS9322-ERV004 servo inverter. This high-precision, versatile drive solution is readily available to enhance your operational efficiency and control accuracy. We are proud to offer worldwide shipping, ensuring that this essential component can reach your facility, wherever you are. Explore our extensive range of Lenze 9300 Servo Inverters EVS Series for additional options and configurations that meet your specific needs. Additionally, delve into our comprehensive selection of Lenze industrial automation products, which includes a wide array of frequency inverters, servo drives, motors, and sophisticated control modules, all designed to deliver unparalleled performance in the most demanding industrial applications. Secure your Lenze EVS9322-ERV004 today and take a definitive step towards optimized motion control and enhanced productivity.
