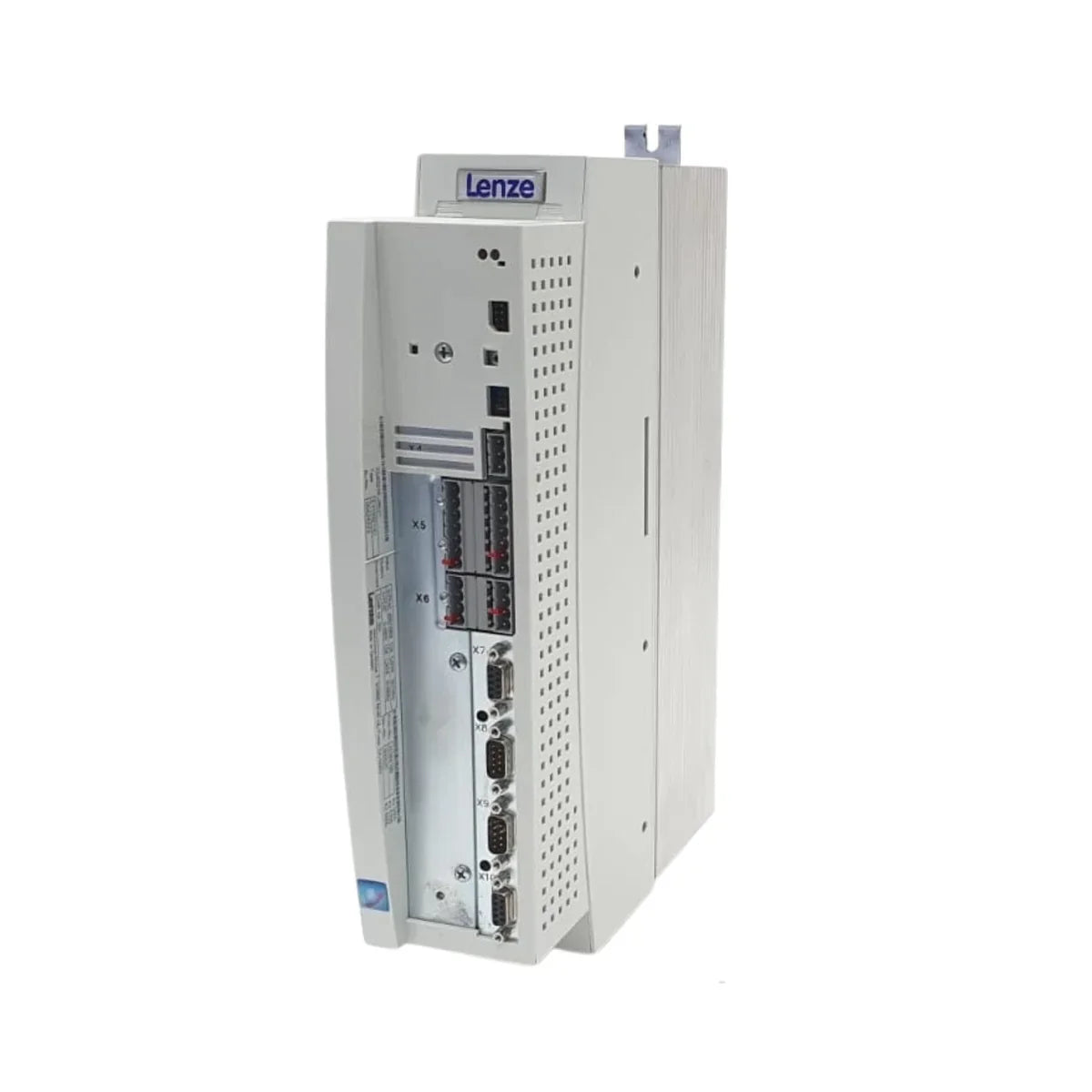

Lenze EVS9322-ER

Overview

The Lenze EVS9322-ER is a high-performance 0.75 kW servo inverter from the renowned 9300 modular series, meticulously engineered to deliver exceptional precision and dynamic control in resolver feedback systems. This compact and robust unit is an ideal solution for original equipment manufacturers (OEMs) and various automation environments where accuracy, reliability, and efficient space utilization are paramount. Its advanced design ensures seamless integration and superior operational performance, making it a cornerstone for sophisticated motion control applications.

Key Features

• Rated Power: 0.75 kW (1.0 HP) for efficient and powerful operation.
• Input Voltage: 3-phase 400 V AC, ensuring compatibility with standard industrial power supplies.
• Feedback Type: Resolver, providing robust and cost-effective position feedback.
• Control Modes: Advanced sensorless vector and resolver-based control for versatile application demands.
• Integrated Brake Chopper: Enhances safety and control in dynamic braking situations.
• Modular IP20 Housing: Compact design for easy integration into control cabinets.
• High Dynamic Performance: Delivers rapid response and precise motor control.
• System Flexibility: Adaptable to a wide range of industrial applications.

Technical Specifications

• Catalog Number: EVS9322-ER – The unique identifier for this advanced servo inverter.
• Input Voltage: 3×400 V AC ±10% – Ensures stable power input for consistent performance.
• Output Frequency: 0–599 Hz – Provides a broad range of speed control capabilities.
• Protection Class: IP20 – Offers basic protection against solid objects, suitable for enclosed environments.
• Cooling: Internal fan – Efficient heat dissipation for sustained operation.
• Mounting: Panel-mounted – Facilitates straightforward installation within control panels.
• Operating Temperature: 0 °C to +45 °C (up to +55 °C with derating) – Versatile for various industrial climates.
• Certifications: CE, UL, cUL – Guarantees compliance with international safety and quality standards.

Applications

The Lenze EVS9322-ER servo inverter is an extremely versatile component, perfectly suited for a multitude of industrial applications demanding precision and reliability:

• Compact Industrial Machines: Ideal for systems utilizing resolver encoders, where space is at a premium.
• Light-Duty Automation Systems: Provides accurate control for a variety of automated processes.
• Robotics, Textile Machines, and Conveyors: Ensures smooth and precise motion in these critical operational areas.
• OEM Applications: Perfect for original equipment manufacturers requiring tight control loops and robust performance.
• Systems Demanding Precision and Compact Integration: Where both accuracy and physical footprint are crucial considerations.

Why Choose This Model?

Choosing the Lenze EVS9322-ER means investing in superior motion control technology. Its resolver input offers a robust and cost-effective feedback solution, ensuring unwavering reliability even in demanding industrial settings. This servo inverter is celebrated for its ability to provide smooth and accurate motor control, which is essential for maintaining product quality and operational efficiency. It's an excellent choice for OEMs and machine builders looking to integrate high-performance and dependable drive solutions into their designs. As an integral part of the trusted Lenze 9300 drive series, the EVS9322-ER benefits from Lenze's legacy of innovation and engineering excellence, guaranteeing a product that meets rigorous industrial standards and offers long-term operational value and performance.

Order Now

The Lenze EVS9322-ER servo inverter is readily available and poised to enhance the precision and efficiency of your motion control systems. We offer worldwide shipping to ensure that this crucial component reaches your operations no matter where you are located. For additional options within this highly-regarded product line, we encourage you to return to the Lenze 9300 Servo Inverters EVS Series. Furthermore, explore our comprehensive selection of high-performance Lenze industrial automation products, which includes a wide array of frequency inverters, advanced servo drives, robust motors, and sophisticated control modules, all designed to meet the exacting demands of modern industrial applications.
