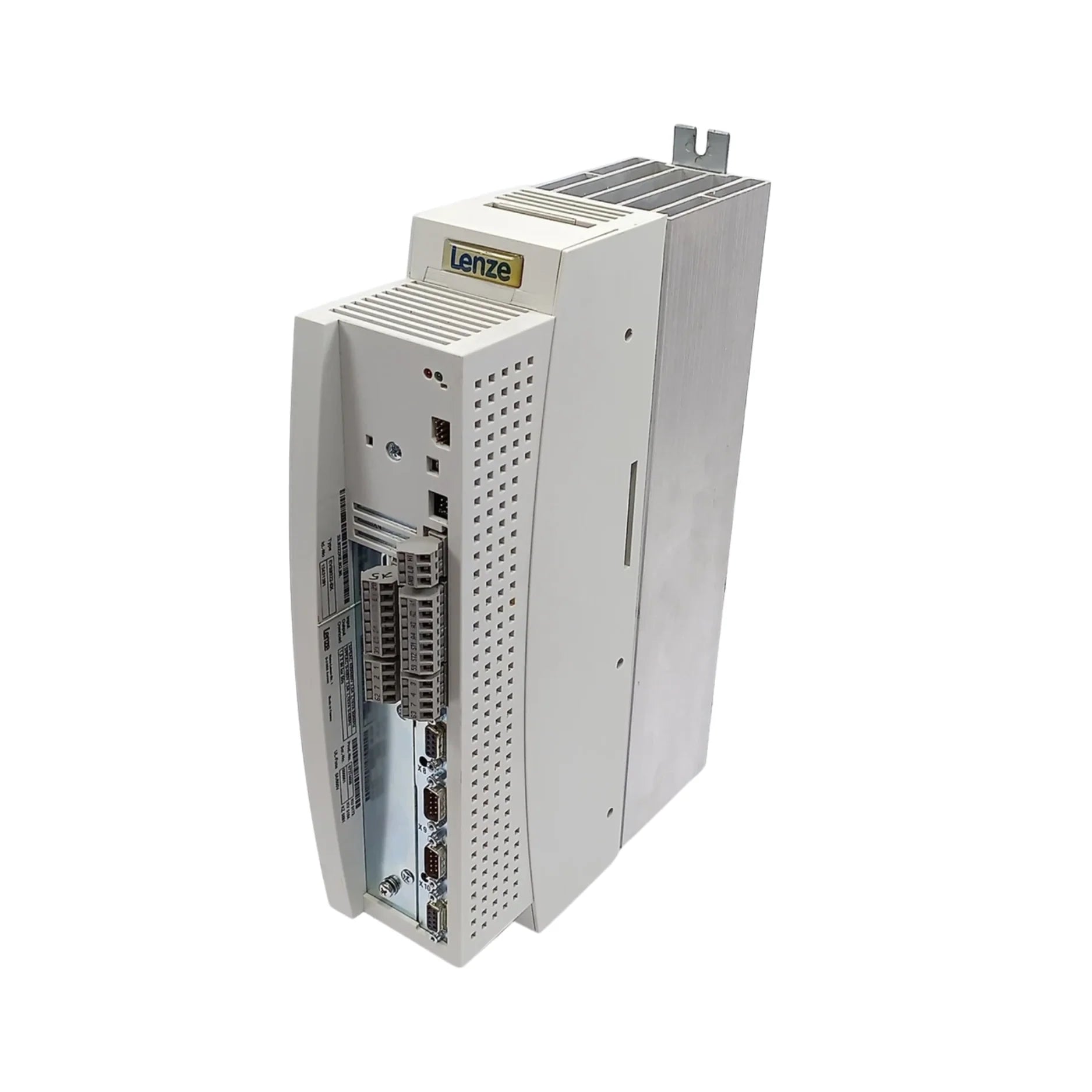

Lenze EVS9322-EK

Overview

The Lenze EVS9322-EK is a cutting-edge 0.75 kW servo inverter, an integral part of the renowned Lenze 9300 modular series. Engineered for precision and efficiency in compact automation systems, this model stands out with its integrated EK extension, providing unparalleled communication flexibility. Designed to deliver advanced vector control for both synchronous and asynchronous motors, it ensures optimal performance even in space-constrained industrial environments. This compact yet powerful inverter facilitates seamless integration into existing control networks, significantly enhancing system responsiveness and overall operational excellence. Whether upgrading an existing system or implementing a new one, the EVS9322-EK offers a robust and reliable solution for sophisticated motor control.

Key Features

• Rated Power: 0.75 kW (1 HP), ideal for a wide range of compact applications.
• Input Voltage: 3-phase 400 V AC, ensuring compatibility with standard industrial power supplies.
• Motor Compatibility: Versatile control for both synchronous and asynchronous motors.
• Control Modes: Features both sensorless vector and encoder-based control for superior accuracy and adaptability.
• EK Extension: Enables broad integration into diverse control systems through various interfaces, enhancing communication versatility.
• Integrated Brake Chopper: Provides essential braking capabilities, improving safety and precision.
• Motion Control Functions: Comprehensive built-in functions for precise and dynamic motion control.
• IP20 Housing: Robust design for reliable panel installation in demanding industrial settings.

Technical Specifications

• Catalog Number: EVS9322-EK
• Input Voltage: 3×400 V AC ±10%
• Output Frequency: 0–599 Hz
• Protection Class: IP20
• Cooling: Efficient internal fan cooling system.
• Mounting: Designed for convenient panel-mounted installation.
• Operating Temperature: 0 °C to +45 °C (operable up to +55 °C with derating).
• Communication Options: Flexible communication protocols depending on the specific EK module (e.g., CANopen, RS232).
• Certifications: CE, UL, cUL certified, ensuring compliance with international quality and safety standards.

Applications

• Compact Automation and Control Systems: Perfect for optimizing performance in confined industrial spaces.
• OEM Machinery with Integrated Communication Needs: Seamlessly integrates into original equipment manufacturer designs requiring sophisticated control.
• Light Conveyors and Positioning Drives: Provides precise and efficient control for material handling.
• Robotics and Packaging Machines: Ensures accurate and reliable operation for automated production lines.
• Entry-Level Industrial Motion Control Solutions: An excellent choice for foundational automation projects requiring dependable performance.

Why Choose This Model?

The Lenze EVS9322-EK servo inverter stands out as an exceptional choice for numerous reasons. Its efficient 0.75 kW drive offers substantial power within a compact design, making it ideal for applications where space is at a premium. The integrated EK extension vastly expands its communication capabilities, allowing for seamless integration with a variety of control protocols and enhancing its adaptability in complex systems. Built on the highly reliable and flexible 9300 modular platform, this inverter guarantees scalability and future-proofing for your automation investments. Designed for both precision and ease of integration, the EVS9322-EK minimizes setup time and maximizes operational efficiency, providing a robust solution that consistently delivers high-performance motor control. Its quality and certifications ensure a long lifespan and dependable operation, making it a valuable asset for any industrial setup.

Order Now

The high-performance Lenze EVS9322-EK servo inverter is readily available and ready for worldwide shipment. Enhance your automation systems today with this precise and reliable solution. For a comprehensive selection within the same range, please return to our Lenze 9300 Servo Inverters EVS Series. Furthermore, we invite you to explore our extensive catalog of Lenze industrial automation products, which includes a wide array of frequency inverters, servo drives, motors, and advanced control modules designed to meet the demands of the most challenging industrial applications.
