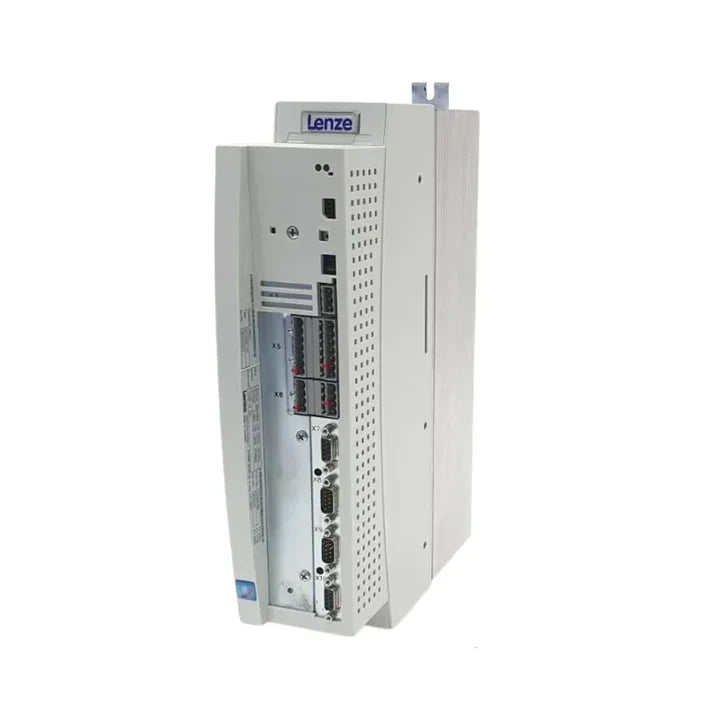

Lenze EVS9322-CKV003

Overview

The Lenze EVS9322-CKV003 is a high-performance 0.75 kW compact servo inverter, expertly engineered within Lenze's renowned 9300 Series. This sophisticated unit is specifically designed for applications demanding exceptional precision in motion control, featuring integrated V003 position control firmware. It seamlessly integrates speed, torque, and positional accuracy within an incredibly compact housing. This makes the EVS9322-CKV003 an optimal choice for advanced automation systems where physical space is at a premium but uncompromising accuracy and dynamic response are absolutely essential. Whether you're upgrading existing machinery or designing new, high-efficiency systems, this servo inverter delivers reliable, high-precision motion for a wide array of industrial tasks.

Key Features

• Rated Power: Potent 0.75 kW (1 HP) output for robust performance.
• Input Voltage: Operates efficiently on 3-phase 400 V AC power supplies.
• Version: CKV003 variant, denoting a compact design with advanced, integrated position control.
• Control Modes: Versatile operation with support for speed, torque, and highly accurate position control.
• Feedback Support: Reliable operation with integrated resolver feedback support for precise motion sensing.
• Communication: Offers modular communication capabilities, expandable through optional fieldbus modules to include protocols like CANopen and Profibus.
• Position Control: Enhanced precision via integrated V003 firmware for superior positional accuracy.
• Enclosure Rating: IP20-rated, ensuring suitability for secure cabinet installation within industrial environments.

Technical Specifications

• Catalog Number: EVS9322-CKV003
• Output Frequency: Wide operational range from 0 to 599 Hz.
• Voltage Tolerance: Stably operates within a ±10% voltage tolerance.
• Operating Temperature: Functional across 0 °C to +45 °C, with extended operation possible up to +55 °C with appropriate derating.
• Mounting: Designed for straightforward and secure installation inside control cabinets.
• Communication: Expandable communication options through optional fieldbus modules for seamless system integration.
• Certifications: Complies with industry-leading standards, including CE, UL, and cUL, guaranteeing safety and quality.

Applications

The Lenze EVS9322-CKV003 servo inverter is engineered for a diverse range of demanding applications where precision and dynamic control are critical:

• Pick-and-Place Systems: Ensures rapid and accurate component handling in automated assembly lines.
• Industrial Robotics and Automation: Provides the fundamental motion control for agile and precise robotic movements.
• High-Precision Conveyor Systems: Delivers smooth and accurate material transport, essential for advanced manufacturing.
• OEM Equipment: Ideal for integration into original equipment requiring superior position accuracy and reliable performance.
• Compact Machinery: Perfectly suited for designs where space is limited but resolver-based feedback is necessary for optimal control.

Why Choose This Model?

The Lenze EVS9322-CKV003 stands out as an exceptional choice for modern industrial automation for several compelling reasons:

• Optimized Design: It masterfully combines a highly compact physical design with sophisticated, advanced motion control capabilities, saving valuable cabinet space.
• Integrated Precision: The built-in V003 position control eliminates the need for external positioning modules, streamlining your system and enhancing precision for demanding tasks.
• Flexible Connectivity: Offers flexible fieldbus connectivity options, allowing for seamless integration into various industrial networks and control architectures.
• Targeted Performance: Specifically engineered for light to medium industrial automation applications, ensuring tailored performance without unnecessary complexity.
• Trusted Reliability: Benefits from the proven performance and robust engineering excellence synonymous with Lenze’s highly regarded 9300 Series.

Order Now

Elevate your automation systems with the superior precision and performance of the Lenze EVS9322-CKV003 servo inverter. This advanced unit is readily available and can be shipped worldwide to meet your project deadlines.
