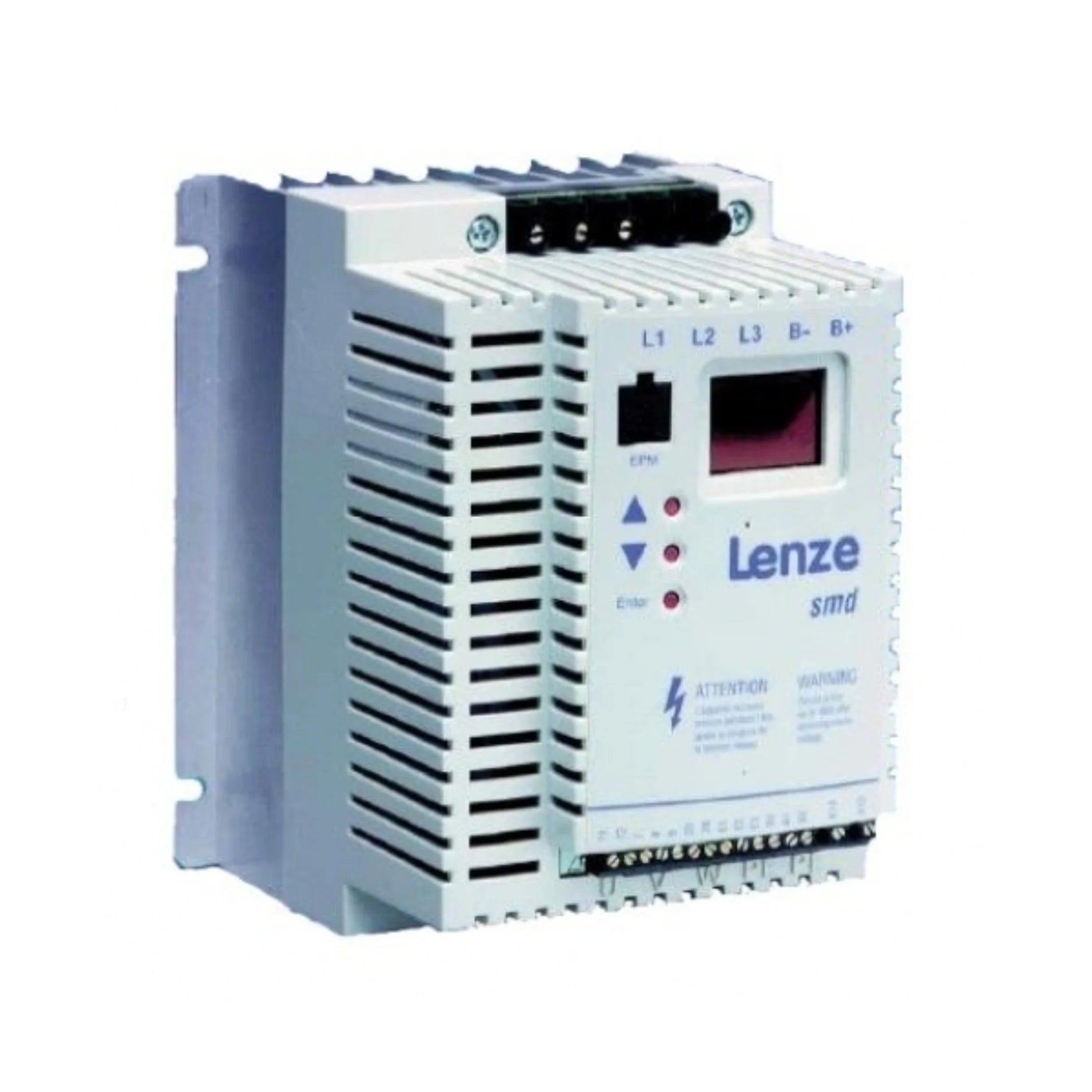

Lenze ESMD402L4TXA

Overview

The Lenze ESMD402L4TXA is a cutting-edge 4 kW frequency inverter from the renowned SMD series, meticulously engineered to provide superior, precise, and highly efficient motor control across a broad spectrum of industrial applications. Designed for robust performance, this inverter seamlessly integrates into modern automation systems, boasting support for 3-phase 400V AC inputs. Its reliable operation and advanced control capabilities ensure optimal performance for your machinery, enhancing productivity and reducing operational costs.

Key Features

• Power Rating: A powerful 4 kW (5 HP) for demanding industrial loads.
• Input Voltage: Specifically designed for 3-phase 400V AC input, ensuring broad compatibility.
• Output Voltage: Versatile 0–400V AC output to match various motor requirements.
• Output Frequency: Wide range of 0 to 500 Hz for flexible speed control.
• Control Method: Utilizes efficient V/f (Voltage/Frequency) control for optimal motor performance.
• Integrated Functions: Advanced features including DC braking for rapid stops, precise PID control, S-ramps for smooth acceleration and deceleration, fixed frequencies for repetitive tasks, and freely configurable inputs and outputs for tailored control.
• Protection Class: IP20 rated, providing essential protection for standard industrial environments.
• Cooling Method: Achieves reliable thermal management through natural convection, ensuring longevity.
• Compact Design: Exceptionally space-saving dimensions engineered for effortless installation even in constrained areas.
• Communication Interfaces: Expandable with optional modules to enhance connectivity and system integration.
• Display: Intuitive LED display for straightforward monitoring and configuration of operational parameters.

Technical Specifications

• Catalog Number: ESMD402L4TXA – easily identifiable for ordering and referencing.
• Input Voltage: 3-phase 400V AC, ensuring stable and consistent power delivery.
• Rated Output Power: 4 kW, providing ample power for a variety of industrial motors.
• Output Frequency: 0 to 500 Hz, offering extensive control over motor speed.
• Output Current: 10.6 A, optimized for efficient power transmission.
• Switching Frequency: Up to 10 kHz, contributing to precise motor control and reduced noise.
• Dimensions (H x W x D): Compact at 146 mm x 114 mm x 171 mm, ideal for tight installations.
• Weight: Approximately 2.0 kg, facilitating easy handling and mounting.
• Operating Temperature Range: Robust performance from 0°C to 55°C (32°F to 131°F).
• Certifications: Complies with CE, UL, and cUL standards, ensuring international acceptance and safety.

Applications

The versatility and robust design of the Lenze ESMD402L4TXA make it an ideal choice for a multitude of industrial applications:

• Conveyors and Material Handling Systems: Ensures smooth and controlled movement of goods, optimizing logistics.
• Packaging Machinery: Enhances precision and speed in packaging processes, boosting production efficiency.
• Pumps and Fans: Provides variable speed control to optimize fluid dynamics and airflow, leading to energy savings.
• HVAC Systems: Improves climate control efficiency and reduces energy consumption in heating, ventilation, and air conditioning.
• General Industrial Automation: A versatile solution for any application requiring reliable and efficient motor speed control.

Why Choose This Model?

The Lenze ESMD402L4TXA stands out as an exceptional choice for modern industrial environments due to its blend of performance, versatility, and efficiency:

• Efficient Motor Control: Its V/f control method guarantees optimal performance for a diverse range of motor types, maximizing their operational lifespan and effectiveness.
• Compact and Lightweight: Engineered for easy integration, its reduced footprint and low weight allow for flexible installation even in space-constrained machinery and control cabinets.
• Flexible Integration: The ability to connect with optional communication modules ensures seamless compatibility with existing and future automation systems, promoting enhanced control and data exchange.
• User-Friendly Interface: Featuring an intuitive LED display and configurable inputs/outputs, setup and operation are significantly simplified, reducing commissioning time and maintenance efforts.
• Energy Efficiency: By optimizing motor performance, this inverter actively contributes to lower energy consumption and significant reductions in operational costs, offering a rapid return on investment.

Order Now

Elevate your industrial automation capabilities with the Lenze ESMD402L4TXA Frequency Inverter. Engineered for precision, efficiency, and reliability, it’s the smart choice for optimizing motor control in your operations. Order today for immediate shipment and take the first step towards enhanced performance and energy savings.

Explore our extensive range of Lenze SMD Frequency Inverters for more options. Additionally, discover our full catalog of Lenze Industrial Automation Products, including an array of frequency inverters, servo drives, motors, and comprehensive motion control solutions tailored to meet every industrial challenge.
