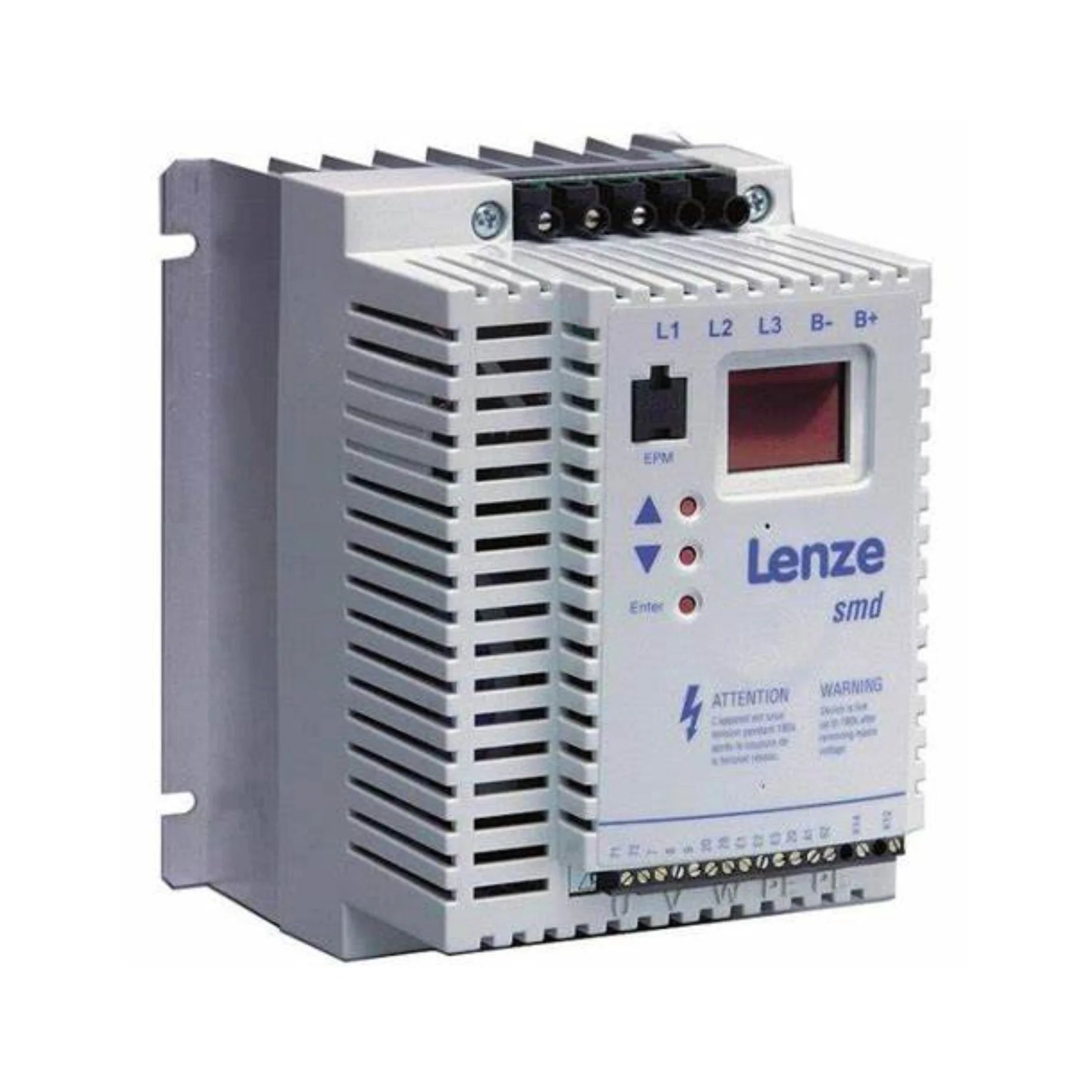

Lenze ESMD302L4TXA

Overview

The Lenze ESMD302L4TXA is a high-performance 3.0 kW (4.0 HP) frequency inverter from Lenze's renowned SMD series, meticulously engineered to deliver precise and reliable motor control across a diverse array of industrial applications. This robust drive is designed to optimize the efficiency and performance of your machinery, supporting 3-phase 400/480V AC inputs for broad compatibility. With its sophisticated V/f control capabilities, integrated protective features, and compact design, the ESMD302L4TXA provides a flexible and dependable solution for modern automation needs, ensuring smooth operation and enhanced productivity.

Key Features

• Powerful Performance: Delivers a substantial 3.0 kW (4.0 HP) output, making it suitable for demanding industrial tasks.
• Versatile Input Voltage: Operates efficiently with 3-phase 400/480V AC inputs, offering flexibility for various power grids.
• Optimized Output: Provides a steady 7.6 A output current for stable motor operation.
• Advanced Control Methods: Utilizes V/f control (linear or quadratic) for adaptable and precise motor speed regulation.
• Integrated Functionality: Boasts a suite of built-in features including DC brake function, fault history buffer, S-ramps for gentle acceleration/deceleration, fixed frequencies, and freely configurable inputs and outputs, reducing the need for external components.
• Robust Protection: Features an IP20 protection class, ideal for standard industrial environments, safeguarding against solid objects larger than 12.5mm.
• Efficient Cooling: Equipped with forced air cooling to maintain optimal operating temperatures and prolong device lifespan.
• Space-Saving Design: Its compact dimensions facilitate easy and efficient installation within control cabinets, maximizing panel space.
• Seamless Communication: Supports RS485 (Modbus RTU) and CAN-BUS interfaces for effortless integration into existing control systems.
• User-Friendly Display: A clear, legible LED display allows for easy monitoring of operational parameters and diagnostics.

Technical Specifications

• Catalog Number: ESMD302L4TXA
• Input Voltage: 3-phase 400/480V AC
• Rated Output Power: 3.0 kW
• Rated Output Current: 7.6 A
• Output Frequency Range: 0–240 Hz (standard), expandable up to 500 Hz for specialized applications.
• Dimensions (W x H x D): 114 mm x 146 mm x 171 mm
• Weight: 2.0 kg
• Operating Temperature Range: 0°C to 55°C (32°F to 131°F)
• Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
• Certifications: CE, cULus, C-Tick, ensuring compliance with international safety and quality standards.

Applications

The Lenze ESMD302L4TXA frequency inverter is an exceptionally versatile component, perfectly suited for enhancing the control and efficiency of a wide range of industrial equipment. Its robust design and adaptable functionality make it an ideal choice for:

• Conveyor Systems: Providing smooth and precise speed control for material transport, reducing wear and tear, and improving throughput.
• Packaging Machinery: Enabling accurate and repeatable movements for filling, sealing, and labeling processes, increasing production consistency.
• Material Handling Equipment: Optimizing the operation of hoists, cranes, and automated guided vehicles (AGVs) for safer and more efficient movement of goods.
• Pumps and Fans: Offering energy-efficient control by adjusting motor speed to match demand, leading to significant power savings and extended equipment life.
• General Automation Systems: A reliable core component for various automated processes where precise motor speed and torque control are paramount.

Why Choose This Model?

Opting for the Lenze ESMD302L4TXA means investing in a solution that combines German engineering excellence with practical, industrial-grade features. This model stands out for several compelling reasons:

• Unmatched Versatility: Its V/f control is expertly designed to manage a broad spectrum of motor applications, offering flexibility that translates into cost savings and simplified inventory.
• Cost-Effective Integration: With numerous integrated functions and a fault history buffer, this inverter reduces the need for additional external components, simplifying system design and minimizing overall project costs.
• Superior Space Efficiency: The compact footprint of the ESMD302L4TXA is a significant advantage, allowing for more efficient use of space within control panels and enclosures, a critical consideration in modern industrial setups.
• Effortless Integration: Support for standard industrial communication protocols like RS485 (Modbus RTU) and CAN-BUS ensures seamless integration into existing and new automation architectures, reducing setup time and complexity.
• Intuitive User Experience: Featuring a highly user-friendly LED display and configurable inputs/outputs, the ESMD302L4TXA simplifies operation, enabling quick adjustments and diagnostics without extensive training.
• Lenze Reliability: As a product from Lenze, a leader in motion control and automation, you are guaranteed a product built to the highest standards of quality, reliability, and performance, backed by excellent support.

Order Now

Enhance the efficiency and control of your industrial applications today with the Lenze ESMD302L4TXA frequency inverter. This essential component is available for immediate shipment to meet your urgent operational needs.
