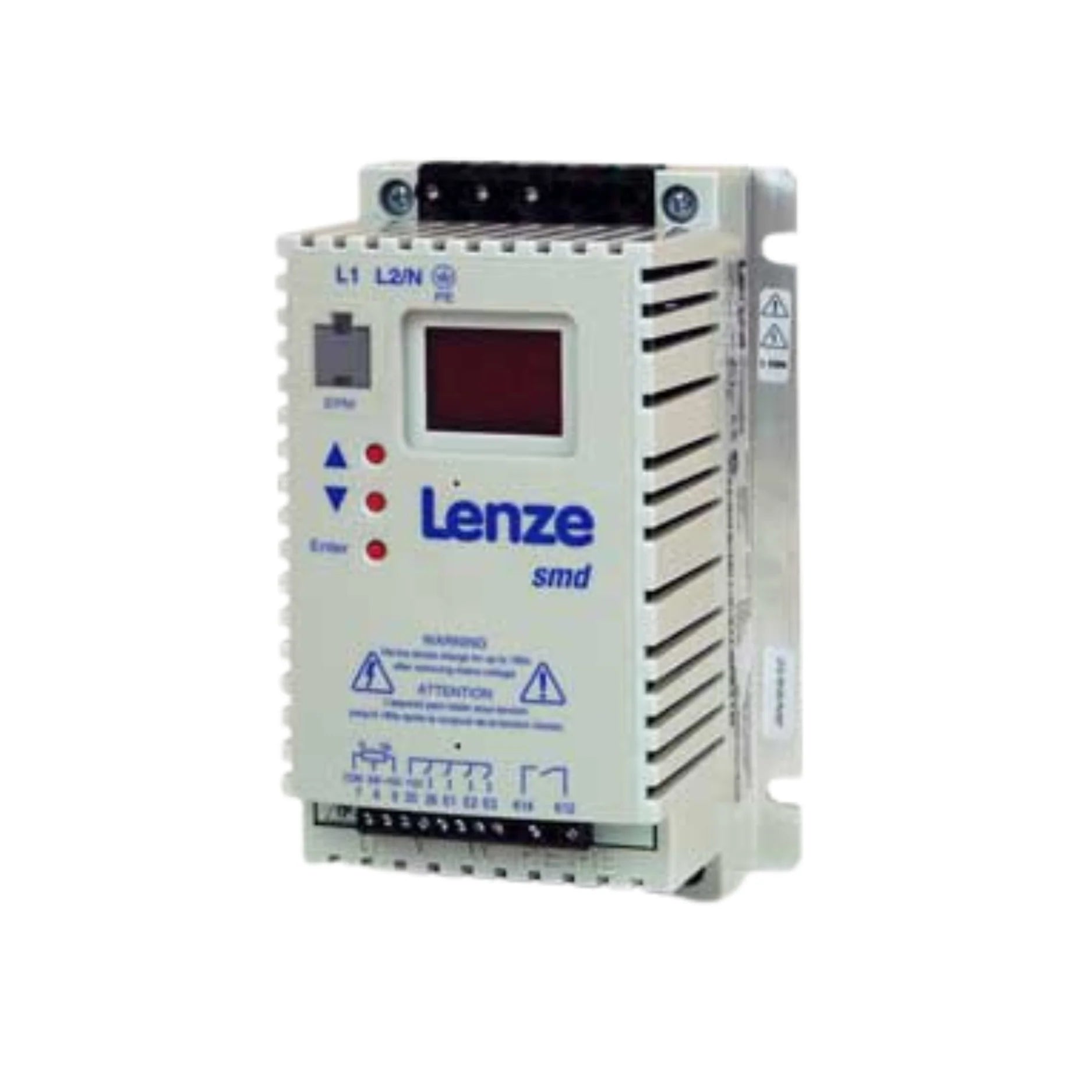

Lenze ESMD113L4TXA

Overview

The Lenze ESMD113L4TXA is a high-performance frequency inverter from the acclaimed SMD series, meticulously engineered to provide robust and versatile motor control across a broad spectrum of industrial applications. With a substantial power rating of 11 kW (15 HP) and designed for a 400V 3-phase input, this inverter is an ideal solution for optimizing the efficiency and performance of pumps, fans, conveyors, and various general-purpose machinery. Its advanced V/f control method ensures exceptionally smooth and precise motor operation, contributing to reduced wear and tear and enhanced system longevity. Encased in a compact IP20 enclosure, the ESMD113L4TXA is perfectly suited for seamless integration into control cabinets and protected industrial environments, offering reliable operation and space-saving advantages. This German-engineered device embodies Lenze's commitment to quality, offering a dependable and cost-effective solution for modern industrial automation needs.

Key Features

• Robust Power Output: Delivers 11 kW (15 HP) to capably manage demanding motor loads.
• Versatile Voltage Input: Compatible with 3-phase, 400/480V AC power supplies.
• Broad Frequency Control: Offers a standard output frequency range of 0–240 Hz, with a maximum capability of up to 500 Hz for specialized applications.
• Precision Control Method: Utilizes reliable V/f control (linear or quadratic) for optimal motor performance.
• Integrated Advanced Functions: Includes DC braking for rapid stopping, S-ramps for smooth acceleration/deceleration, multiple fixed frequency settings, a comprehensive fault history buffer for diagnostics, and a built-in PI controller for process optimization.
• Comprehensive Connectivity:
• 1 x Analog input (0–10V) for flexible sensor integration.
• 4 x Digital inputs for versatile control signals.
• 1 x Relay output for external device control.
• RS485 (Modbus RTU) and CAN-Bus communication capabilities for seamless integration into automation networks.
• Intuitive Display: Features an LED display for clear status indication and efficient diagnostics.

Technical Specifications

• Model Number: ESMD113L4TXA
• Series: SMD
• Rated Current: 24 A
• Overload Capacity: Sustains 150% overload for 1 minute, ensuring robust performance under fluctuating loads.
• Enclosure Protection: IP20, providing protection against solid objects larger than 12.5mm.
• Mounting: Designed for convenient DIN rail mounting, streamlining installation.
• Dimensions (W x H x D): Compact at 114 x 146 x 133 mm, optimizing panel space.
• Weight: A manageable 9 kg.
• Operating Temperature: Functions reliably within a 0°C to +55°C range.
• Storage Temperature: Can be stored safely from -20°C to +70°C.
• Certifications: Complies with CE, UL, and RoHS standards, affirming quality and environmental responsibility.
• Country of Origin: Germany, renowned for precision engineering.

Applications

• Pumps and Fans: Provides highly efficient speed control, leading to significant energy savings and optimized performance in HVAC systems, water treatment, and ventilation.
• Conveyors: Ensures smooth start-stop operations, gentle product handling, and precise speed regulation for enhanced efficiency in material handling and logistics.
• General Machinery: Offers versatile and reliable motor control for a wide array of industrial equipment, including mixers, stirrers, and processing machinery.
• OEM Equipment: An ideal component for original equipment manufacturers seeking a compact, reliable, and easily integratable drive solution for custom machinery.

Why Choose This Model?

• Optimized Space Utilization: Its compact design significantly reduces the footprint required in control panels, allowing for more streamlined and efficient system layouts.
• Effortless Operation: Features a user-friendly interface with an intuitive LED display, simplifying setup, monitoring, and diagnostic tasks for technicians.
• Unmatched Control Flexibility: Supports both analog and digital inputs, providing diverse control options to integrate seamlessly with existing control architectures.
• Proven Lenze Reliability: Built with Lenze's renowned engineering excellence, ensuring consistent and dependable performance in demanding industrial environments.
• Seamless System Integration: Equipped with advanced RS485 (Modbus RTU) and CAN-Bus communication capabilities, enabling straightforward integration into complex automation and control systems.
• Cost-Effective Efficiency: By optimizing motor speed and reducing energy consumption, the ESMD113L4TXA contributes to lower operational costs and a better return on investment.

Order Now

Elevate your industrial processes with the precision and reliability of the Lenze ESMD113L4TXA SMD Frequency Inverter. This robust and versatile drive is ready to optimize your applications, providing enhanced efficiency and control. Contact us today to place your order or to learn more about how this exceptional product can benefit your operations.

For additional options within this series, please explore our full range of Lenze SMD Frequency Inverters.

Discover our comprehensive selection of Lenze Industrial Automation Products, including frequency inverters, servo drives, motors, and other cutting-edge motion control solutions designed to meet the highest industry standards.
