Lenze ESMD112L4TXA

Overview

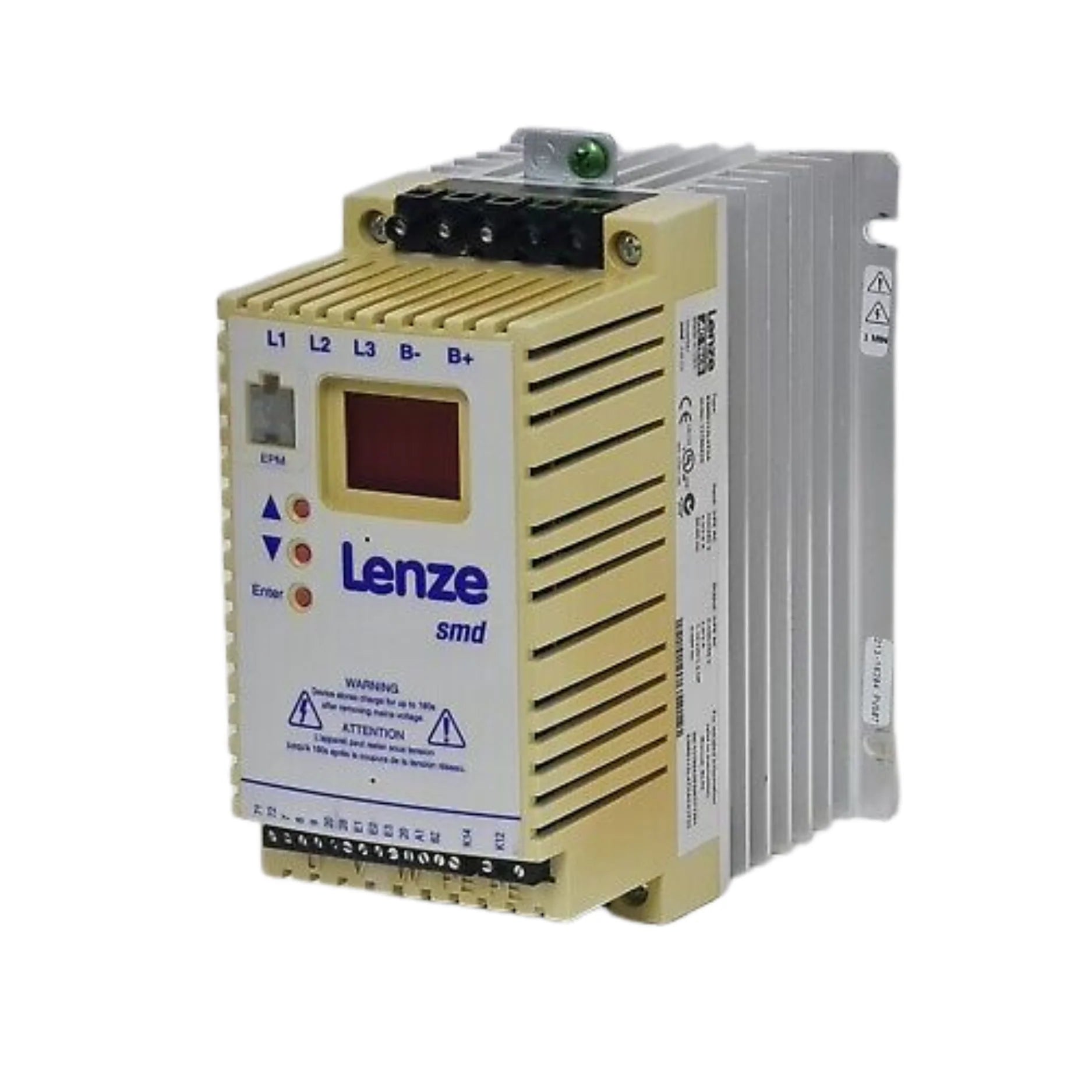

Unlock superior motor control capabilities with the Lenze ESMD112L4TXA, an advanced 11 kW frequency inverter from the acclaimed Lenze SMD series. Engineered for robust performance and exceptional efficiency, this compact unit is specifically designed to manage three-phase motors in diverse industrial settings. Its 11 kW power rating and 3-phase 400V input make it an ideal solution for optimizing a wide array of industrial automation applications, delivering both simplicity in operation and significant cost savings. The ESMD112L4TXA offers precise speed and torque control, enhancing the operational efficiency and longevity of your machinery while integrating seamlessly into existing systems.

Key Features

• Rated Power: 11 kW (15 HP) for robust performance demanding applications.
• Input Voltage: 3-phase 400V AC, ensuring compatibility with standard industrial power supplies.
• Output Voltage: 0–400V AC, providing flexible motor control across various speed ranges.
• Control Method: V/f (voltage/frequency) control, offering reliable and straightforward motor regulation.
• Frequency Range: 0 to 500 Hz, enabling precise speed adjustment for diverse operational needs.
• Integrated Functions:
  • PID controller for closed-loop process control.
  • DC braking for rapid and controlled motor stops.
  • S-ramps for smooth and gentle acceleration/deceleration, reducing mechanical stress.
  • Fixed frequency presets for quick configuration of common operating points.
  • Configurable I/O terminals for flexible integration with control systems.
• Protection Class: IP20, safeguarding internal components in industrial environments.
• Cooling: Efficient forced air cooling with an internal fan to maintain optimal operating temperatures.
• Communication: Expandable with optional external modules (RS485, CANopen) for advanced networking.
• User Interface: Intuitive basic LED display with keypad navigation for easy setup and monitoring.

Technical Specifications

• Model Number: ESMD112L4TXA
• Output Current: Approximately 25 A, suited for demanding motor loads.
• Switching Frequency: Up to 10 kHz, ensuring smooth motor operation and reduced motor noise.
• Mounting Style: Versatile wall or panel mount options for flexible installation.
• Dimensions (H x W x D): Approx. 290 x 207 x 155 mm, providing a compact footprint for space-constrained installations.
• Weight: Approx. 6.5 kg, facilitating easy handling and installation.
• Operating Temperature: 0°C to +45°C, ensuring reliable performance in typical industrial conditions.
• Certifications: CE, UL, RoHS compliant, affirming high standards of safety, quality, and environmental responsibility.

Applications

The Lenze ESMD112L4TXA is a highly versatile frequency inverter, perfectly suited for optimizing a broad spectrum of industrial applications. Its robust design and precise control capabilities make it indispensable for:

• Pumps and Fans: Achieving energy savings and precise flow/air volume control.
• Conveyor Systems: Ensuring smooth acceleration and deceleration, reducing wear and tear, and improving product handling.
• Industrial Mixers: Providing consistent mixing speeds for optimal process outcomes.
• Packaging Machinery: Enhancing operational speed and accuracy for increased throughput.
• Machine Tools: Offering precise spindle control for improved machining quality and efficiency.
• HVAC Systems: Optimizing fan and pump operations for enhanced energy efficiency and climate control.

Why Choose This Model?

The Lenze ESMD112L4TXA stands out as a premier choice for industrial motor control due to its compelling blend of performance, reliability, and cost-effectiveness.

• High Power in Compact Size: Maximizes space utilization by controlling powerful 11 kW motors within tight cabinet constraints, making it ideal for compact machine designs.
• Simple Configuration: Features a straightforward setup process with built-in parameters, significantly reducing installation and commissioning time, even for complex applications.
• Reliable Operation: Built with Lenze's renowned engineering excellence, ensuring proven durability and consistent, trouble-free performance in demanding industrial environments.
• Versatile Use: Exceptionally adaptable for both constant and variable torque loads, making it suitable for a wide range of machinery and industrial processes.
• Cost-Effective: Represents a practical and economical solution for standard drive control applications, offering excellent value without compromising on quality or features. Its efficiency contributes to energy savings, further enhancing its long-term cost benefits.

Order Now

Elevate your industrial automation with the reliable and efficient Lenze ESMD112L4TXA 11 kW frequency inverter. This high-performance unit is readily available and poised for global shipment, ensuring you can enhance your operations wherever you are.

For additional options and specifications within this series, we invite you to explore our comprehensive range of Lenze SMD Frequency Inverters. Should your needs extend beyond frequency inverters, delve into our full selection of Lenze Industrial Automation Products, which includes cutting-edge servo drives, robust motors, and innovative motion control solutions designed to meet the most stringent industrial demands.
