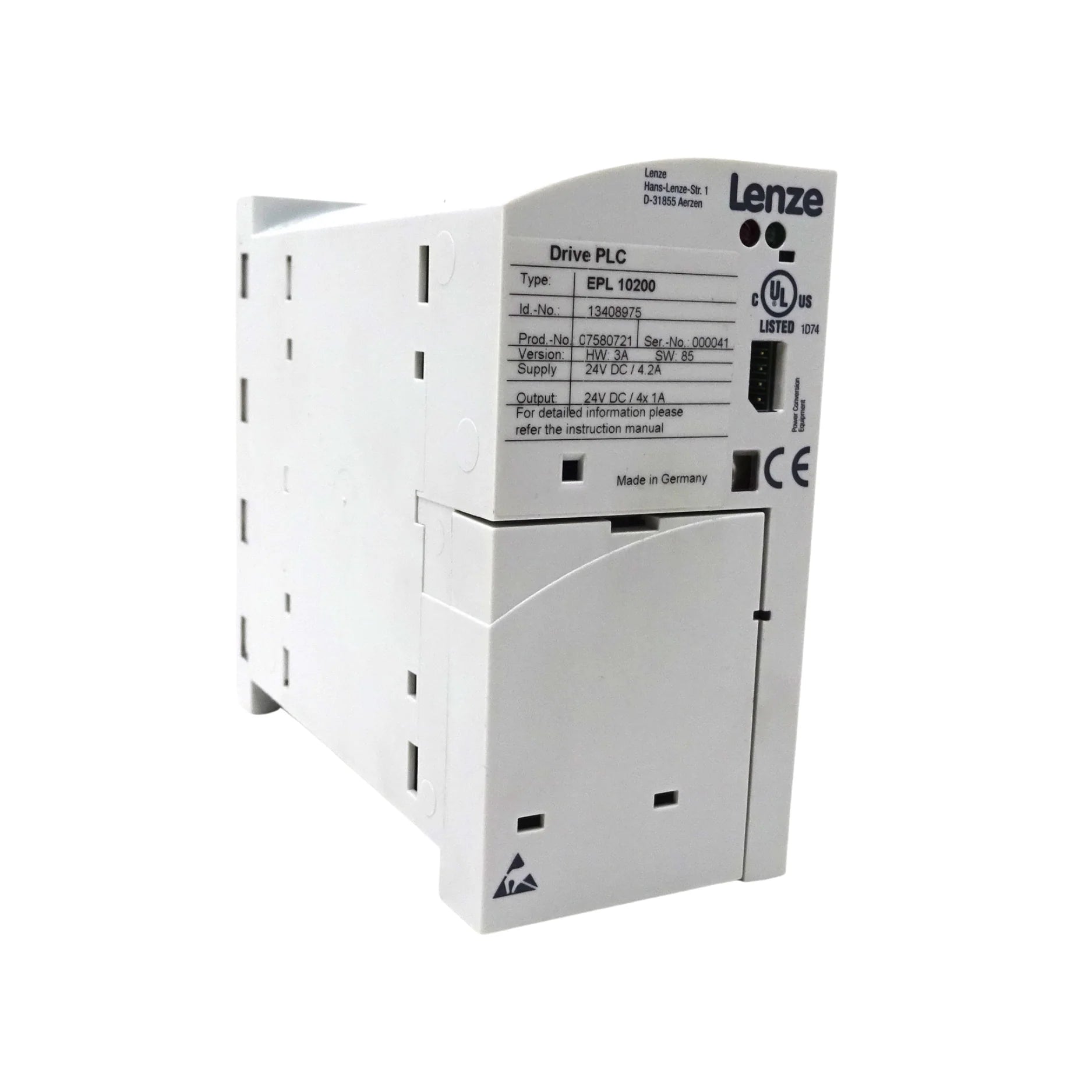

Lenze EPL-10200

Overview

The Lenze EPL-10200 Drive PLC Controller stands as a testament to advanced industrial automation, seamlessly integrating robust motion control with programmable logic capabilities. Engineered for environments demanding precision and efficiency, this compact unit operates reliably on a 24V DC power supply, making it an ideal solution for a multitude of industrial applications. Its innovative design consolidates the functionalities of a PLC and a drive into a single, space-saving device, streamlining system architecture and enhancing overall operational performance. The EPL-10200 is specifically crafted for those seeking to optimize their automation processes with a solution that offers both powerful control and significant space efficiency.

Key Features

• Power Supply: 24V DC for consistent and reliable operation in industrial settings.
• Output Current: A robust 4.2 A, ensuring ample power delivery for connected components.
• Digital Inputs: 8 channels, each supporting 24V DC and 8 mA, offering versatile external signal reception.
• Digital Outputs: 4 channels, 24V DC, with a maximum capacity of 1 A per output, providing flexible control over actuators and indicators.
• Analog Inputs: 3 channels with a range of ±10 V and 10-bit resolution, enabling precise monitoring of analog sensors.
• Analog Outputs: Includes one voltage output (±10 V, max. 2 mA, ±0.5% accuracy) and one current output (±20 mA, ±0.5% accuracy) for fine-tuned analog control.
• Control Modes: Comprehensive support for position, speed, and torque control, catering to diverse motion control requirements.
• Communication Interfaces: Integrated CANopen system bus facilitates high-speed and reliable data exchange within complex automation networks.
• Programming Language: Fully compliant with IEC 61131-3, ensuring standardized, user-friendly, and efficient programming.
• Protection Class: IP20 rated, providing protection against solid objects larger than 12.5mm.
• Mounting: Designed for convenient DIN rail compatibility, simplifying installation in control cabinets.
• Dimensions (H x W x D): Compact physical footprint of 167 mm x 60 mm x 140 mm.
• Weight: Lightweight at approximately 1.19 lbs (0.54 kg), aiding in easy handling and installation.

Technical Specifications

The Lenze EPL-10200 is engineered with meticulous attention to detail, ensuring superior technical performance. Its compact dimensions and light weight belie its powerful capabilities, making it an excellent choice for a wide array of industrial applications where space and performance are critical. The combination of precise analog and digital I/O, coupled with advanced control modes, allows for the creation of highly sophisticated and responsive automation systems. The inclusion of the CANopen interface underscores its readiness for integration into modern, networked industrial environments.

Applications

The versatility and robust features of the Lenze EPL-10200 make it ideally suited for optimizing performance across various industrial sectors:

• Conveyor Systems: Enhances speed and position control, leading to more efficient material flow.
• Packaging Machinery: Provides precise control for intricate packaging processes, minimizing errors and maximizing throughput.
• Material Handling Equipment: Improves coordination and responsiveness for automated guided vehicles (AGVs) and robotic systems.
• Machine Tools: Delivers accurate motion control for critical machining operations, ensuring high precision and repeatability.
• General Industrial Automation Systems: A foundational component for a broad spectrum of automated processes, offering reliability and adaptability.

Why Choose This Model?

Opting for the Lenze EPL-10200 offers distinct advantages that set it apart:

• Integrated Control: This model uniquely combines both PLC and drive functionalities, significantly simplifying system architecture, reducing wiring, and accelerating commissioning. This integration leads to a more compact footprint and enhanced overall system reliability.
• Compact Design: Its remarkably small form factor allows for installation in control cabinets with limited space, offering greater flexibility in machine design and layout without compromising performance.
• Flexible I/O Configuration: With a balanced mix of digital and analog inputs and outputs, the EPL-10200 can interface with a wide range of sensors and actuators, making it highly adaptable to diverse application requirements.
• Reliable Communication: The built-in CANopen interface ensures rapid, dependable, and error-free data exchange, critical for synchronized operations in complex automation systems.
• User-Friendly Programming: Adherence to the IEC 61131-3 standard means that programming the EPL-10200 is intuitive and straightforward, reducing development time and ensuring compatibility with widely accepted programming methodologies.

Order Now

Elevate your industrial automation capabilities with the Lenze EPL-10200 Drive PLC Controller. Engineered for superior performance, reliability, and ease of integration, this powerful unit is ready to transform your operational efficiency. The Lenze EPL-10200 is available for immediate shipment to meet your urgent project requirements.
