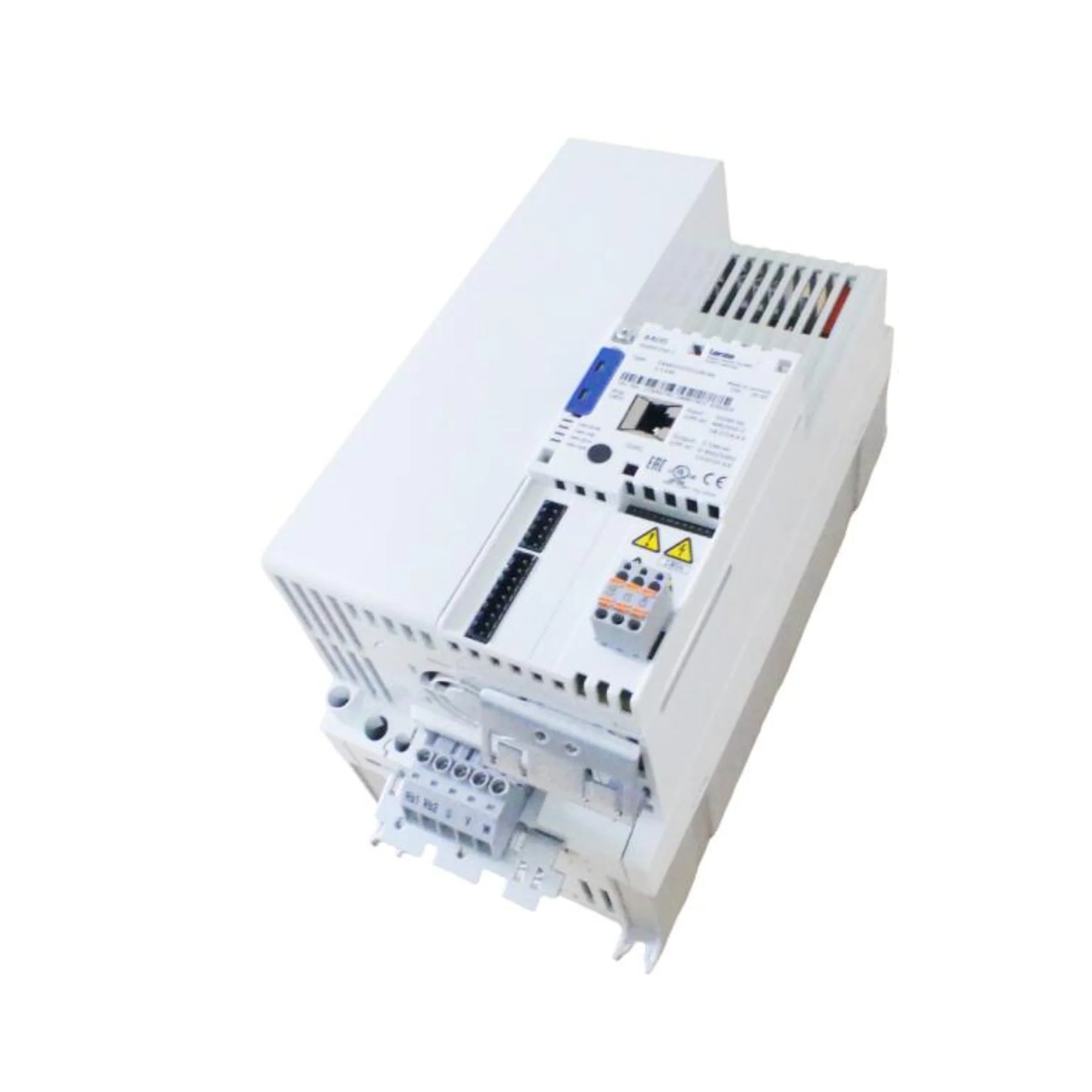

Lenze E84AVTCE5524VX0

Overview

The Lenze E84AVTCE5524VX0 is a high-performance 5.5 kW servo inverter, a core component of the advanced i700 series, meticulously engineered for multi-axis systems where unparalleled speed, torque accuracy, and precision are paramount. This state-of-the-art drive integrates sophisticated EtherCAT communication, offering real-time data exchange crucial for the most demanding automation tasks. Its compact, book-style footprint allows for efficient use of cabinet space, while intelligent safety functions ensure reliable and secure operation. Designed for industries ranging from robotics to packaging machinery, the E84AVTCE5524VX0 consistently delivers precise, dynamic, and synchronized motion control, making it an indispensable asset for modern industrial automation.

Key Features

• Rated Power: 5.5 kW for robust performance in demanding applications
• Input Voltage: 3-phase 400V AC, ensuring compatibility with standard industrial power supplies
• Communication Interface: Advanced EtherCAT for high-speed, deterministic real-time communication
• Control Modes: Versatile Position, Speed, and Torque Control for flexible application integration
• Safety Function: Integrated Safe Torque Off (STO) for enhanced machine and operator safety
• Cooling: Efficient integrated fan for optimal thermal management and prolonged lifespan
• Mounting: Space-saving DIN rail/book-style design for compact cabinet layouts
• Software Tools: Seamless commissioning with Lenze EASY Starter and Engineer software for streamlined setup
• Diagnostics: Comprehensive integrated status LEDs and parameter monitoring for quick troubleshooting

Technical Specifications

• Model Number: E84AVTCE5524VX0
• Series: i700
• Output Current: Approximately 15 A (configuration dependent)
• Switching Frequency: Up to 16 kHz for smooth and precise motor control
• Frequency Range: 0 to 599 Hz
• Feedback Support: Compatible with Resolver, incremental, and absolute encoders for diverse feedback requirements
• Protection Class: IP20
• Ambient Temperature: 0°C to +55°C operating range
• Dimensions (H x W x D): Approx. 270 x 90 x 230 mm, ideal for compact installations
• Certifications: CE, UL, RoHS-compliant, ensuring global standards adherence

Applications

The Lenze E84AVTCE5524VX0 servo inverter is engineered to excel in a wide array of industrial applications requiring superior precision and dynamic response:

• Robotics and Pick-and-Place Systems: Delivering exact positioning and rapid movements
• Synchronized Multi-Axis Automation: Ensuring perfect coordination across multiple driven axes
• Packaging Machinery: Enhancing speed and accuracy in filling, sealing, and labeling processes
• Printing and Textile Machinery: Providing consistent tension control and precise material handling
• Conveyor and Gantry Systems: Enabling smooth, controlled movement of goods and materials

Why Choose This Model?

The Lenze E84AVTCE5524VX0 stands out as a premier choice for demanding motion control applications due to its combination of advanced features and robust design:

• Precise Motion Control: Optimized for the most complex automation scenarios requiring real-time performance and absolute accuracy.
• Compact & Scalable Design: Its innovative book-style format is specifically engineered for high-density cabinet installations, making the most of available space without compromising performance.
• EtherCAT Communication: Leverage the benefits of high-speed, deterministic networking for superior synchronization and reduced cabling complexity.
• Integrated Safety: The built-in Safe Torque Off (STO) function helps meet stringent machine safety compliance standards, protecting both equipment and personnel.
• Engineering Efficiency: Seamless compatibility with Lenze’s comprehensive software ecosystem (EASY Starter and Engineer) ensures rapid setup, efficient commissioning, and simplified diagnostics, significantly reducing engineering time and costs.

Order Now

The Lenze E84AVTCE5524VX0 is currently available and poised for global shipment, ready to elevate your industrial automation systems. Secure this high-performance servo inverter today to experience unparalleled precision and efficiency.
