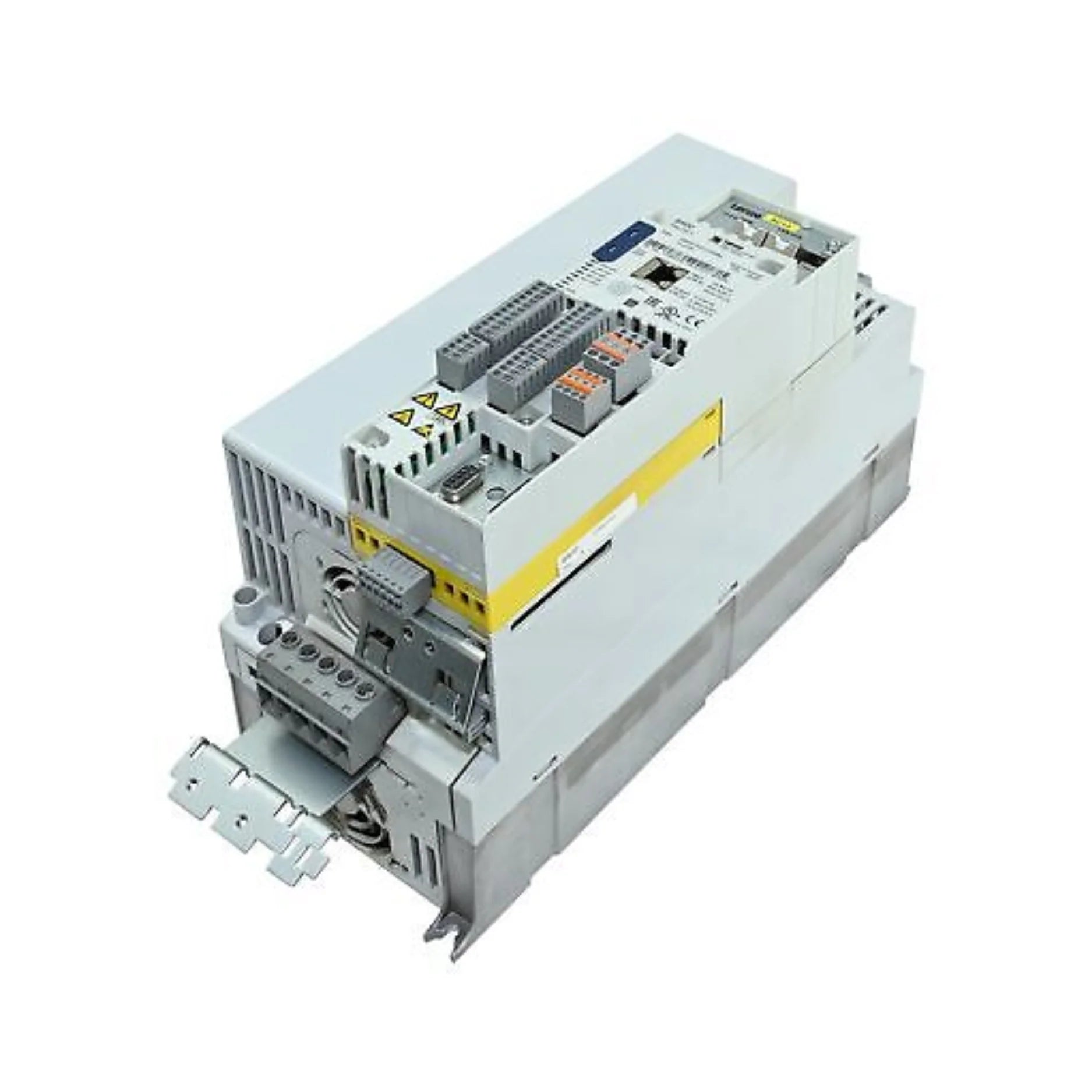

Lenze E84AVTCE1134SB0

Overview

The Lenze E84AVTCE1134SB0 is a high-performance 3.4 kW servo inverter from the esteemed i700 series, meticulously engineered for precision multi-axis motion control in demanding automation environments. This cutting-edge device is a cornerstone for machine builders and system integrators who require unparalleled speed, accuracy, and reliability from their servo drive solutions. Designed for fast cycle times and seamless integration through EtherCAT, its compact form factor ensures efficient space utilization in control cabinets, making it an ideal choice for a wide array of dynamic industrial applications.

Experience superior control and enhanced operational efficiency with a servo inverter that combines robust construction with intelligent features, ready to meet the challenges of modern industrial automation.

Key Features

• Rated Power: Delivering a commanding 3.4 kW for robust performance.
• Input Voltage: Operates efficiently on 3-phase 400V AC power supplies.
• Output Frequency: Supports dynamic motion control with frequencies up to 599 Hz.
• Fieldbus Interface: Integrated EtherCAT for high-speed, real-time communication and seamless network integration.
• Control Type: Advanced servo control encompassing precise torque, speed, and position control functionalities.
• Design: Ultra-compact book-style housing, optimized for space-saving cabinet installations.
• Cooling Method: Features integrated fan cooling to maintain optimal operating temperatures and ensure longevity.
• Safety: Equipped with an integrated Safe Torque Off (STO) function, enhancing machine and operator safety.
• Mounting: Versatile mounting options including DIN rail or direct panel mounting.
• Software Integration: Fully compatible with Lenze EASY Starter and Engineer tools for streamlined commissioning and configuration.

Technical Specifications

• Model Number: E84AVTCE1134SB0
• Series: i700
• Rated Output Current: Approximately 9 A (configuration dependent).
• Switching Frequency: Up to 16 kHz for smooth and precise motor control.
• Motor Feedback: Comprehensive support for various motor feedback systems, including encoders and resolvers.
• Ambient Temperature: Operational range from 0°C to +55°C, ensuring reliable performance in diverse industrial settings.
• Protection Class: IP20, providing protection against solid objects.
• Dimensions (H x W x D): Approximately 270 x 70 x 210 mm, highlighting its compact footprint.
• Certifications: Compliant with CE, UL, and RoHS standards, affirming quality and environmental responsibility.

Applications

The versatility and high-performance capabilities of the Lenze E84AVTCE1134SB0 make it suitable for a broad spectrum of industrial applications, including:

• High-Speed Packaging Machines: Enabling rapid and accurate packaging processes.
• Pick-and-Place Robotics: Delivering precision and speed for robotic manipulation tasks.
• Material Handling and Gantry Systems: Optimizing movement and positioning in logistics and manufacturing.
• Textile and Printing Automation: Ensuring synchronized and high-quality production in demanding environments.
• Synchronized Multi-Axis Systems: Perfect for complex systems requiring precise coordination across multiple axes.

Why Choose This Model?

• Unmatched Performance: Experience rapid response times and exceptionally precise control, essential for the most dynamic industrial applications.
• Space-Saving Design: Its ultra-compact, slim profile significantly reduces the required cabinet space, offering greater flexibility in machine design.
• Effortless EtherCAT Integration: Designed for seamless fieldbus communication, ensuring high-speed data exchange and simplified network architecture.
• Enhanced Safety: The integrated Safe Torque Off (STO) function provides a critical layer of safety, aiding in compliance with international machine safety standards.
• Simplified Engineering: Benefit from full support by Lenze's intuitive software tools, EASY Starter and Engineer, which streamline commissioning, parameterization, and diagnostics, significantly reducing setup time and effort.

Order Now

The Lenze E84AVTCE1134SB0 i700 servo inverter is currently in stock and available for immediate shipment, ready to integrate into your advanced automation solutions. Elevate your machinery's performance and efficiency today.
