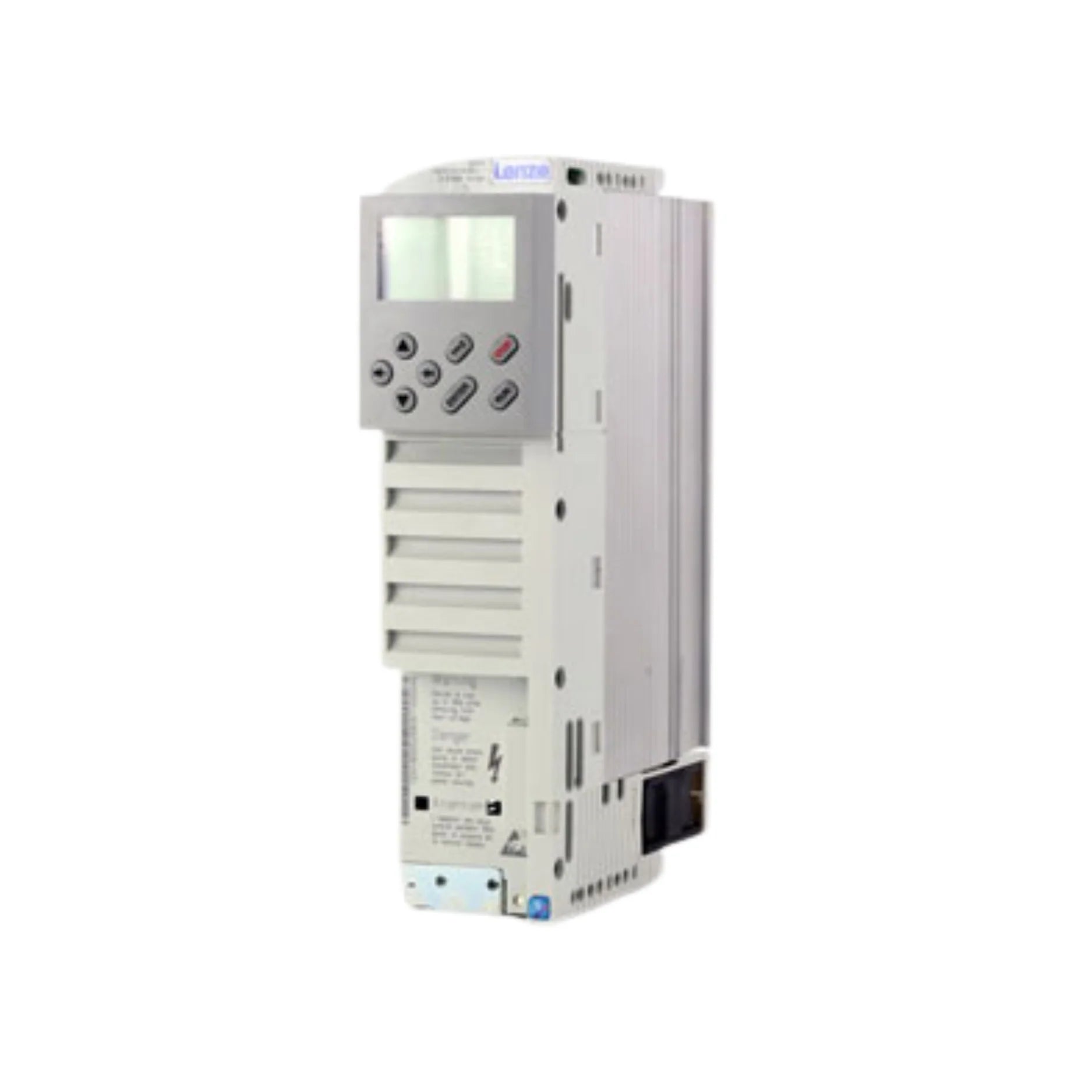

Lenze E82EV152K2C

Overview

The Lenze E82EV152K2C is a high-performance 1.5 kW frequency inverter from the esteemed 8200 Vector series, engineered to deliver unparalleled precision in motor control across a diverse range of industrial applications. This compact and highly efficient unit provides robust and reliable operation, perfectly suited for modern automation needs. With its versatile support for both single-phase and three-phase 230V inputs, the E82EV152K2C offers exceptional flexibility, making it an ideal solution for optimizing system performance and energy efficiency in demanding industrial environments.

Key Features

• Optimized Power Output: Delivers a consistent 1.5 kW (2.0 HP) for robust performance.
• Flexible Input Voltage: Compatible with 1-phase or 3-phase 230V AC ±10%, enhancing applicability.
• High Output Current: Features a rated output current of 7 A, with a maximum of 10.5 A for demanding loads.
• Precision Motor Control: Utilizes advanced vector control technology for exceptional accuracy in speed and torque regulation.
• Integrated Braking System: Includes a built-in brake transistor, enabling dynamic braking without the need for external components, simplifying installation and reducing costs.
• Durable Protection: Boasts an IP20 protection class, suitable for standard industrial environments.
• Efficient Cooling: Equipped with forced air cooling to ensure optimal operating temperatures and extended lifespan.
• Space-Saving Design: Its compact dimensions facilitate easy installation within control cabinets, maximizing valuable space.
• Modular Expandability: Supports a variety of plug-in modules for seamless communication and I/O expansion, future-proofing your system.

Technical Specifications

• Catalog Number: E82EV152K2C
• Input Voltage: 1/3-phase 230V AC ±10%
• Rated Output Power: 1.5 kW
• Rated Output Current: 7 A
• Maximum Output Current: 10.5 A
• Power Loss: Approximately 100 W
• Dimensions (H x W x D): 240 mm x 60 mm x 140 mm
• Weight: 1.6 kg
• Operating Temperature Range: -10°C to 45°C (14°F to 113°F)
• Certifications: CE, UL, cUL

Applications

The versatility and high-performance capabilities of the Lenze E82EV152K2C make it an ideal choice for a broad spectrum of industrial applications, including:

• Conveyor Systems: Ensuring smooth and precise material flow.
• Packaging Machinery: Enhancing efficiency and accuracy in packaging processes.
• Material Handling Equipment: Optimizing the movement and positioning of goods.
• Pumps and Fans: Providing efficient and controlled operation for fluid and air systems.
• General Automation Systems: A reliable solution for diverse industrial automation requirements.

Why Choose This Model?

The Lenze E82EV152K2C stands out as a superior choice for your industrial automation needs due to its exceptional features and robust design:

• Unmatched Precision: Advanced vector control technology guarantees accurate speed and torque regulation, leading to superior performance and process control.
• Installation Flexibility: Its compatibility with both single-phase and three-phase 230V supplies provides greater adaptability for various power infrastructures.
• Cost-Effective Integration: The integrated brake transistor simplifies wiring and reduces the need for additional components, thereby lowering installation costs and complexity.
• Future-Proof Modular Design: Easy expandability with communication and I/O modules allows for seamless integration into existing systems and future upgrades.
• Space-Efficient Footprint: Designed with a compact form factor, it maximizes space utilization within control panels and enclosures, critical in today's space-constrained industrial environments.
• Industrial Reliability: Built by Lenze, a leader in automation, ensuring long-term reliability and consistent performance in demanding industrial settings.

Order Now

The Lenze E82EV152K2C frequency inverter is available for immediate shipment, ready to enhance your industrial operations. Don't miss the opportunity to upgrade your systems with this high-performance and reliable solution.
