Keyence EH-114

Overview

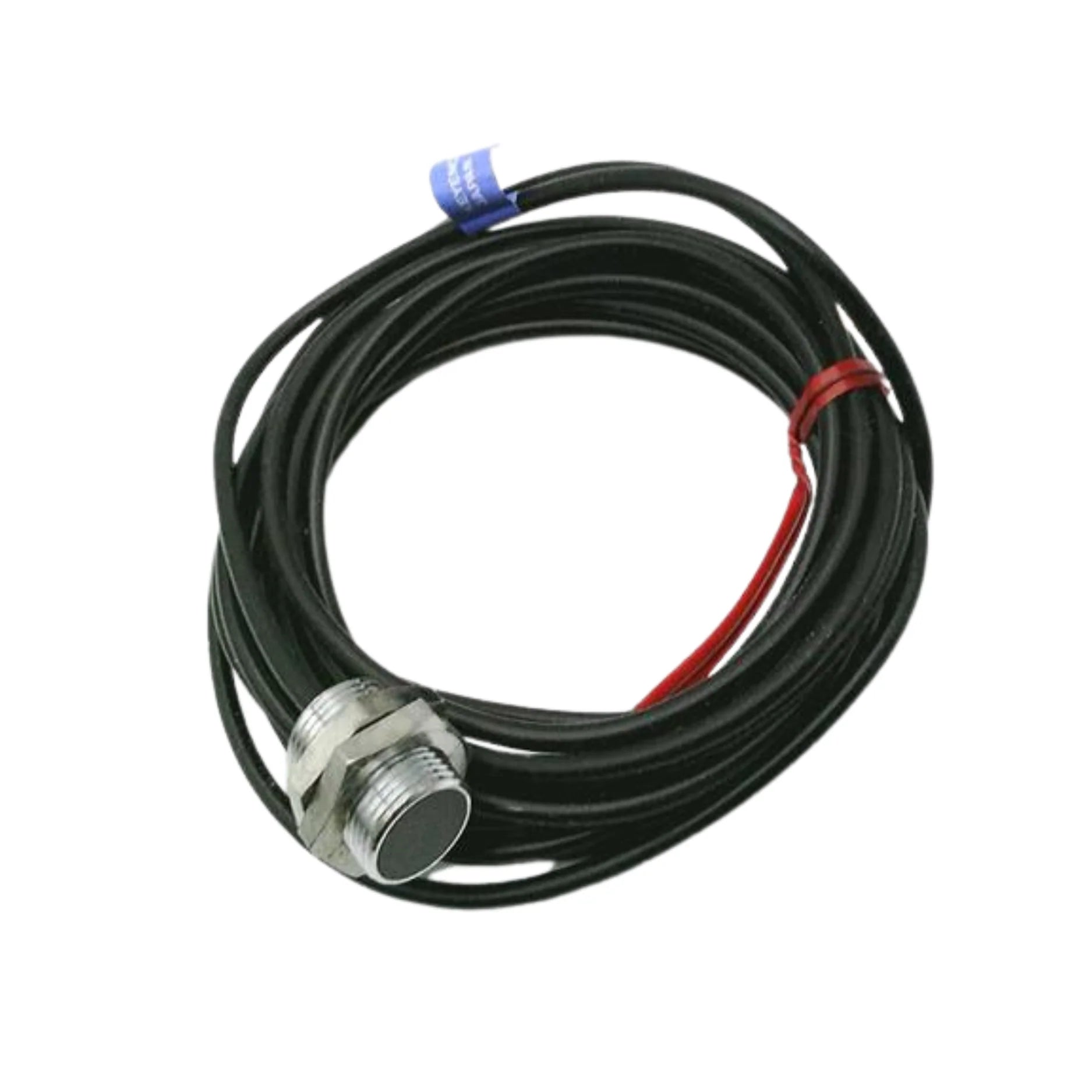

The Keyence EH-114 is an advanced, ultra-compact high-speed inductive proximity sensor head engineered for unparalleled precision in even the most restrictive environments. Designed to seamlessly integrate with Keyence's renowned amplifier units, such as the EG Series, this sensor head delivers rapid response times and exceptional detection accuracy. It is the perfect solution for demanding applications in high-speed automation, intricate positioning systems, and critical quality control where space is at a premium and reliability is paramount. Constructed with a focus on durability and consistent performance, the EH-114 stands out in harsh industrial settings, ensuring precise micro-level detection without compromise.

Key Features

• Ultra-Compact Design: Its remarkably small footprint allows for effortless integration into machinery and setups with limited space, optimizing overall system design.
• Blazing High-Speed Detection: With an impressive response time of 10 µs or less (when paired with a compatible amplifier), the EH-114 enables real-time sensing and control, critical for dynamic industrial processes.
• Exceptional Precision: Engineered for detecting minute objects and subtle movements, this sensor head guarantees superior accuracy, making it indispensable for intricate applications.
• Robust Stainless Steel Housing: The premium stainless steel construction provides outstanding resistance to corrosion, wear, and impact, ensuring a prolonged operational lifespan in challenging industrial environments.
• Seamless Amplifier Compatibility: Fully compatible with a wide range of Keyence amplifier units, including the versatile EG Series (e.g., EG-547, EG-550), allowing for flexible system configurations.
• Versatile Mounting Options: Featuring an M8 threaded cylindrical design, the EH-114 offers multiple installation approaches, facilitating easy and secure integration into diverse mechanical assemblies.
• IP67 Protection Rating: This high level of protection ensures the sensor head is impervious to dust and can withstand temporary immersion in water, safeguarding its functionality in wet or dusty conditions.

Technical Specifications

• Model: EH-114
• Sensing Range: 0 to 0.8 mm
• Sensor Type: Inductive proximity sensor head
• Housing Material: High-grade Stainless Steel
• Cable Length: 2 meters
• Response Time: ≤ 10 µs (with compatible amplifier)
• Operating Temperature: –10 to +60°C
• Protection Rating: IP67 (Dust tight and protected against temporary immersion)
• Mounting Type: M8 threaded cylindrical type
• Compatible Amplifiers: EG-547, EG-550, and other Keyence EG Series amplifiers

Applications

The Keyence EH-114's combination of speed, precision, and compact design makes it highly versatile for a multitude of industrial applications:

• Precise Part Positioning: Crucial for accurate alignment and micro-detection in automated assembly and robotic systems.
• High-Speed Automation Equipment: Ideal for rapid and repeatable presence checks, ensuring continuous and efficient operation in automated manufacturing lines.
• Quality Verification in Assembly Lines: Provides precise sensing for defect detection, component verification, and quality assurance during production.
• Electronics & Small Parts Handling: Reliably detects minute changes and ensures precise handling of delicate or very small components in electronics manufacturing and similar industries.
• Machine Tooling: Accurate tool detection and positioning.
• Medical Device Manufacturing: High-precision sensing for critical component handling.

Why Choose This Model?

The Keyence EH-114 is the optimal choice for engineers and manufacturers seeking a superior sensing solution due to its compelling advantages:

• Unmatched Precision in Compact Spaces: Its ability to deliver highly accurate detection within extremely confined areas makes it invaluable for modern, space-constrained machinery.
• Fast and Reliable Performance: Engineered for critical automated setups, it guarantees consistent and rapid operation, minimizing downtime and maximizing productivity.
• Built for Durability and Long-Term Stability: The robust stainless steel construction combined with its IP67 rating ensures exceptional resilience against environmental stressors, leading to extended operational life and reduced maintenance.
• Enhanced Productivity: By providing quick and accurate feedback, the EH-114 helps to streamline processes, improve throughput, and reduce errors in production.
• Keyence Brand Assurance: As a product from Keyence, a leader in industrial automation, the EH-114 comes with the assurance of cutting-edge technology, reliability, and excellent technical support.

Order Now

Elevate your automation and precision sensing capabilities with the Keyence EH-114 High-Speed Proximity Sensor Head. This superior sensor is ready for immediate dispatch, ensuring you can quickly implement its benefits into your operations. Take advantage of our fast worldwide delivery options and secure your competitive edge in precision and efficiency. Contact us today to place your order or to learn more about how the EH-114 can transform your industrial applications!
