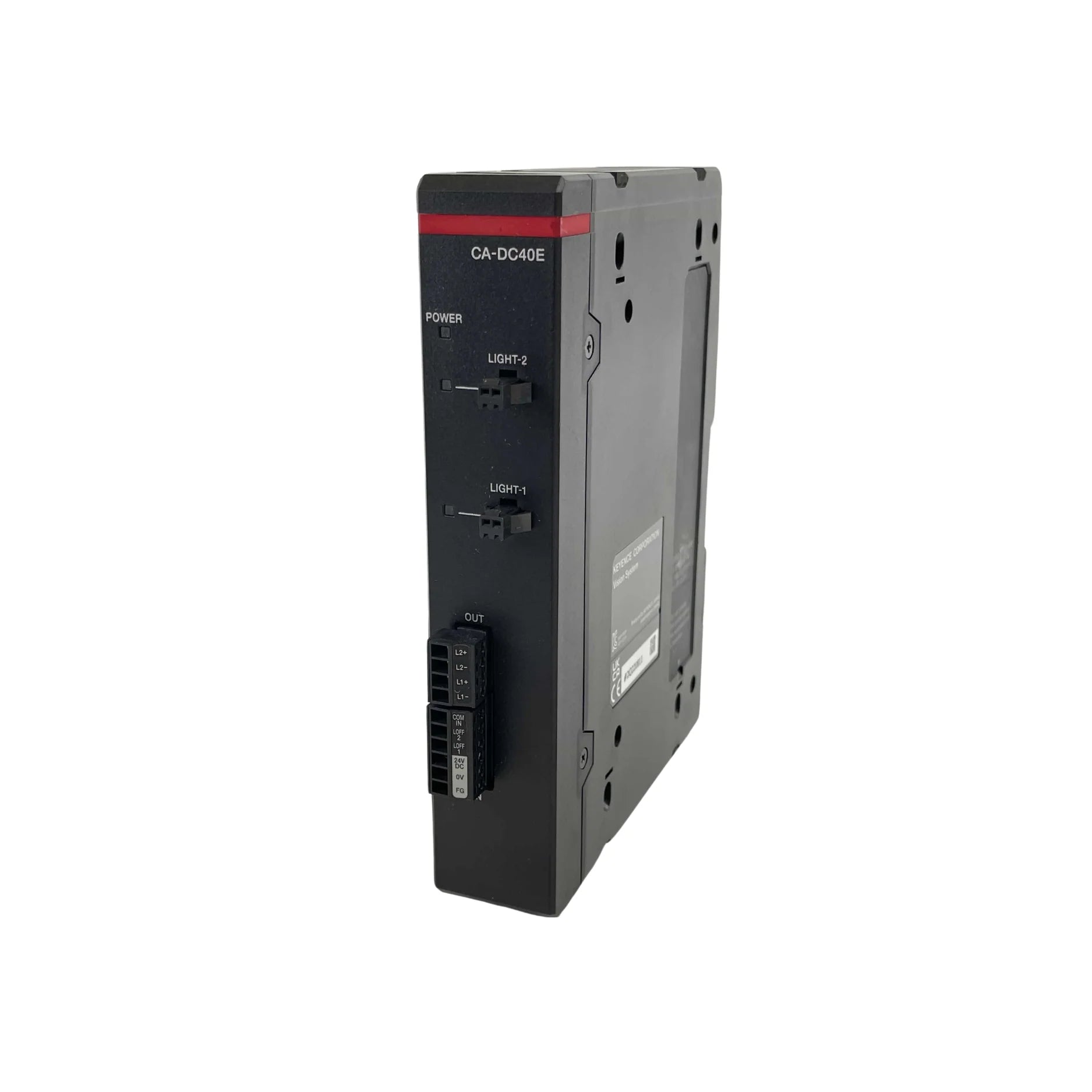

Keyence CA-DC40E

Overview

Elevate your machine vision applications with the Keyence CA-DC40E Multi-Channel LED Lighting Controller. Engineered for unparalleled precision and versatility, this advanced 4-channel controller provides robust and programmable illumination, crucial for consistent, high-quality image acquisition in even the most demanding industrial environments. Seamlessly integrate the CA-DC40E with Keyence's acclaimed CA series lighting units to achieve synchronized, stable light output, essential for accurate inspection, measurement, and automation tasks. Its resilient design and flexible control options make it the cornerstone for superior visual inspection systems.

Key Features

• 4 Independent Lighting Channels: Gain complete control over multiple lighting units simultaneously, streamlining complex setups and enhancing inspection capabilities.
• Adjustable Brightness Control: Precisely fine-tune light intensity across each channel from 0-100% digitally, ensuring optimal contrast and clarity for diverse inspection objects and environments.
• Strobe and Continuous Modes: Adapt to various inspection needs with flexible lighting modes, supporting both continuous illumination for general viewing and high-speed strobe for capturing fast-moving targets without blur.
• Synchronized Triggering: Achieve perfect harmony between your camera and lighting. This feature ensures illumination is precisely timed with camera exposure, eliminating image inconsistencies and maximizing data accuracy.
• Seamless Integration: Designed for effortless compatibility, the CA-DC40E integrates flawlessly with existing Keyence vision systems, simplifying setup and accelerating deployment.
• Compact DIN Rail Mounting: Optimize control panel space with the controller's compact form factor and convenient DIN rail or panel mounting options, facilitating a tidy and efficient system layout.
• Robust Industrial Design: Built to withstand the rigors of industrial settings, ensuring reliable performance and longevity in challenging operational conditions.

Technical Specifications

• Model: CA-DC40E
• Number of Channels: 4
• Output Current: Max. 800 mA per channel
• Lighting Mode: Continuous / Strobe
• Trigger Input: External (camera sync supported)
• Brightness Control: 0–100% (digital adjustment)
• Power Supply: 24 VDC ±10%
• Communication Interface: RS-232C (for parameter setting)
• Mounting: DIN rail or panel
• Operating Temperature: 0 to +50°C
• Dimensions: Approx. 130 × 38 × 105 mm
• Weight: Approx. 400 g

Applications

• Precision Machine Vision Systems: Provides accurate and repeatable light control, critical for high-stakes inspection and measurement tasks where image consistency is paramount.
• High-Speed Automated Inspection: Ideal for demanding automated inspection lines requiring strobe-synchronized illumination to capture clear images of rapidly moving objects and detect subtle defects.
• Complex Multi-Lighting Setups: Centralize control for diverse lighting configurations, including dome, ring, and bar lights, simplifying management and enhancing flexibility in advanced vision applications.
• Industrial Production Lines: Ensures unwavering operational stability in continuous or trigger-driven inspection processes, contributing to enhanced product quality and increased throughput.

Why Choose This Model?

The Keyence CA-DC40E stands out as the premier choice for professionals seeking a high-performance multi-channel lighting controller. Its ability to provide stable, precise, and flexible lighting control across four independent channels within a compact unit makes it an indispensable tool for optimizing machine vision system performance. From its robust industrial design to its seamless integration capabilities and advanced synchronization features, the CA-DC40E is engineered to meet and exceed the stringent demands of modern industrial automation and inspection. Invest in the CA-DC40E to achieve superior imaging results, improve inspection accuracy, and enhance the overall efficiency of your production line.

Order Now

Unlock the full potential of your machine vision system with the Keyence CA-DC40E. Experience fast, worldwide shipping and benefit from easy system integration. Contact us today to secure your unit and elevate your inspection capabilities.
