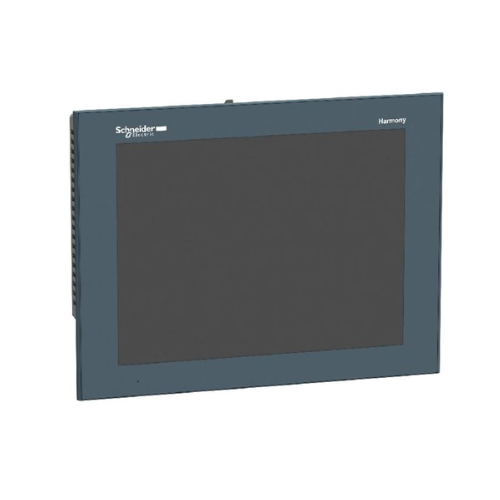

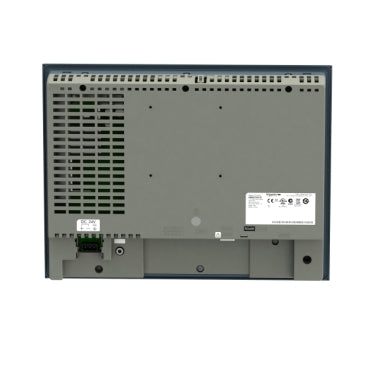

Schneider Electric HMIGTO6310

Overview

Elevate your industrial control with the Schneider Electric HMIGTO6310, a sophisticated 12.1-inch Human Machine Interface from the esteemed Magelis GTO series. Engineered for critical machine interface applications, this HMI provides operators with an intuitive and powerful platform for system oversight and control. Its vibrant TFT color display, coupled with extensive communication capabilities and a durable construction, ensures reliable operation in even the most challenging industrial settings. The HMIGTO6310 is the ultimate solution for tasks demanding precise real-time data visualization, comprehensive system diagnostics, and seamless operator interaction.

Key Features

• Expansive Display: A spacious 12.1-inch TFT color touchscreen offers ample screen real estate for intricate graphics and data.
• Sharp Resolution: Boasting an 800 x 600 pixel (SVGA) resolution, it delivers clear, crisp visuals for enhanced operational insight.
• Responsive Touch: Precision-engineered resistive touchscreen technology guarantees accurate and reliable input with every touch.
• Rich Color Palette: Experience 65,536 colors (65K) for detailed graphical representations and immediate visual feedback.
• Versatile Connectivity Suite:
  • Two (2) Serial ports (RS232/RS485) for legacy and specialized equipment integration.
  • One (1) high-speed Ethernet port (10/100 Mbps) for seamless network integration and data exchange.
  • Two (2) USB ports (Type A & Mini-B) facilitating peripheral connections and data transfers.
  • One (1) SD card slot for expanded storage or program updates.
• Ample Memory: Equipped with 96 MB of Flash memory for application storage and 64 MB of RAM for smooth performance.
• Enduring Backlight: A robust backlight designed for a minimum of 50,000 hours of continuous operation.
• Integrated Software Support: Fully configurable using the powerful Vijeo Designer software, streamlining development and deployment.

Technical Specifications

• Model Identifier: HMIGTO6310
• Product Line: Magelis GTO Series
• Display Diagonal: 12.1 inches
• Screen Resolution: 800 x 600 (SVGA standard)
• Touch Technology: Analog resistive type
• Core Processor: High-performance RISC-based architecture
• Operating System: Optimized Magelis embedded OS
• Power Requirements: 24V DC (with an allowable tolerance of ±20%)
• Maximum Power Draw: 22 Watts
• Operational Temperature Range: 0°C to +50°C
• Humidity Rating: 10–90% relative humidity, non-condensing
• Environmental Protection: IP66 at the front panel for dust and water resistance; IP20 at the rear.
• Mounting Method: Designed for straightforward panel installation.
• Physical Dimensions (W x H x D): 315 mm x 241 mm x 56 mm
• Nominal Weight: Approximately 3.2 kg

Applications

• Advanced Industrial Automation: Serves as the central operational interface for complex machinery and integrated systems.
• Manufacturing Production Lines: Enables real-time visualization and control of production metrics, ensuring peak efficiency.
• Precise Process Control: Offers critical visualization and essential command functionalities for sensitive industrial processes.
• Energy & Utility Management: Provides essential display and control capabilities for critical infrastructure systems.

Why Choose This Model?

The Schneider Electric HMIGTO6310 stands out as an exceptional choice for a multitude of reasons, making it a pivotal component in any modern industrial application:

• Expansive Visual Workspace: The generous 12.1-inch display is not just large; it's designed to provide an expansive and clear visual workspace, perfect for complex schematics, detailed monitoring dashboards, and intuitive operator controls. This reduces the need for constant screen switching and enhances situational awareness.
• Comprehensive Connectivity Options: Beyond standard ports, the HMIGTO6310 integrates seamlessly into diverse control architectures. With dual serial, Ethernet, and USB ports, plus an SD card slot, it offers unparalleled flexibility for connecting to PLCs, VFDs, sensors, and network infrastructure, ensuring your system is always connected and data-rich.
• Engineered for Endurance: Built with a focus on durability, this HMI is not merely "rugged" but specifically engineered to withstand the demanding conditions of industrial environments. Its IP66 front panel rating signifies superior protection against dust and water ingress, ensuring long-term reliability and reducing downtime in challenging factories or process plants.
• Streamlined Integration: Leveraging Schneider Electric's ecosystem, the HMIGTO6310 integrates effortlessly with other Schneider components, especially PLCs. Configuration through Vijeo Designer is intuitive, allowing for rapid deployment and minimizing setup complexities, ensuring your automation system is up and running in no time.

Order Now

Upgrade your operational control today. Benefit from our fast shipping and reliable worldwide delivery options. Explore our full range of Schneider Electric HMIs and industrial PCs to find complementary solutions.
