GE IC695CMM002

Overview

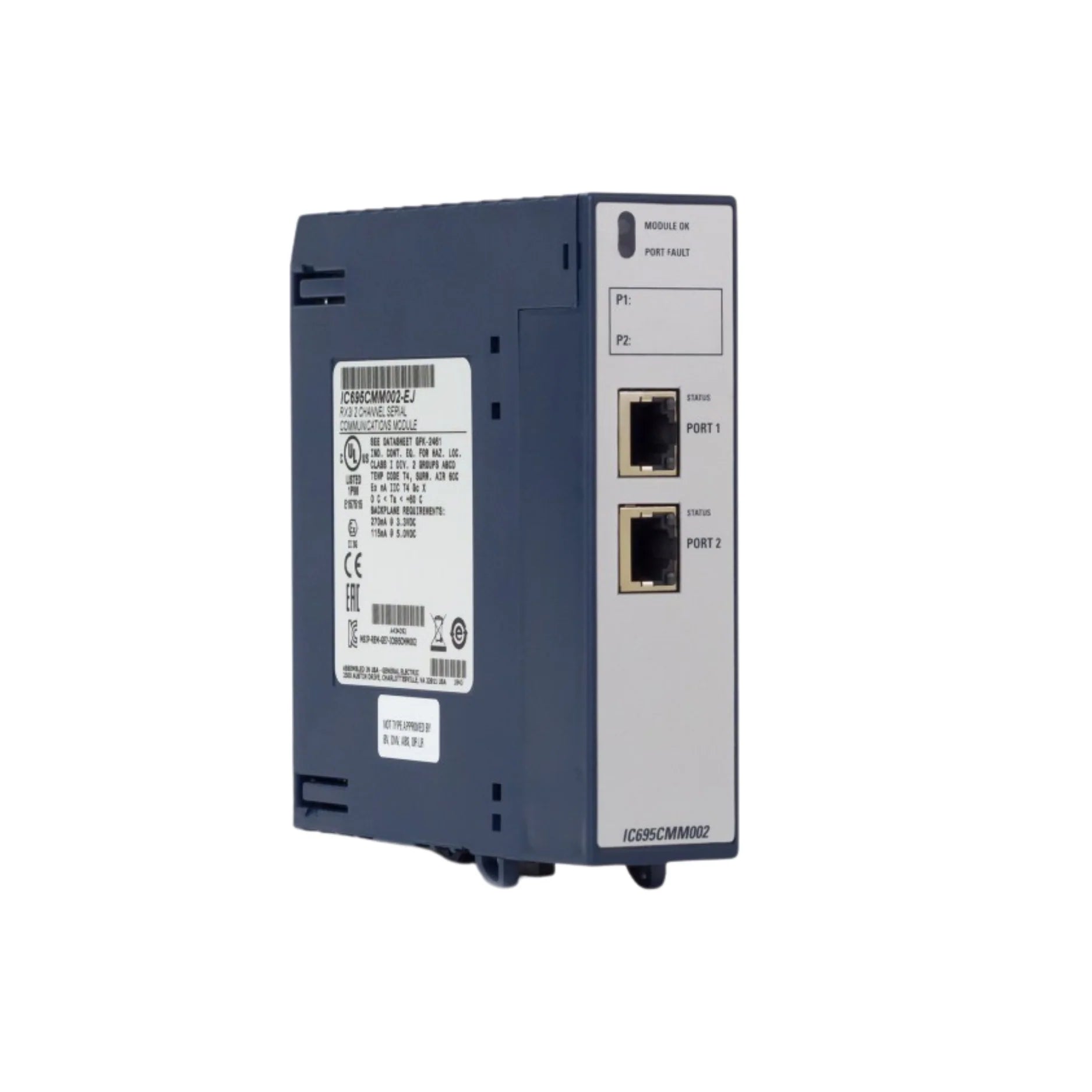

The GE Fanuc IC695CMM002 RX3i Serial Communication Module stands as a pivotal component for modernizing and expanding industrial control systems. Engineered specifically for the PACSystems RX3i series, this module provides robust and flexible serial communication capabilities. With two independently configurable serial ports supporting both RS-232 and RS-485 standards, the IC695CMM002 facilitates seamless and reliable data exchange between your RX3i PLC and a diverse array of external devices. From barcode scanners and Human-Machine Interfaces (HMIs) to motor drives and essential legacy controllers, this module ensures your system remains connected and efficient.

Key Features

• Dual Independent Serial Channels: Offers two distinct ports for simultaneous and flexible communication.
• Versatile Communication Standards: Supports both RS-232 and RS-485, providing broad compatibility with industrial equipment.
• Configurable Baud Rates: Ranging from 300 to 115.2 kbps, allowing for precise speed adjustments to match various device requirements.
• Extensive Protocol Support: Compatible with SNP, RTU, Modbus Master/Slave, and ASCII protocols, enhancing integration possibilities.
• Enhanced Port Isolation: Features 500V isolation between each port and the system logic, ensuring electrical integrity and protection.
• Diagnostic Status LEDs: Includes TX/RX activity indicators per channel for quick and easy troubleshooting.
• Hot-Swappable Capability: Designed for convenience and minimal downtime, allowing replacement in supported RX3i configurations without powering down the system.

Technical Specifications

• Model Number: IC695CMM002
• Baud Rate Range: 300 to 115.2 kbps
• Data Format: Supports 7/8 data bits, 1/2 stop bits, and odd/even/none parity settings for adaptable communication.
• Port Isolation: 500V optically isolated, ensuring robust electrical separation and noise immunity.
• Power Requirements: Efficient operation at 5V @ 250 mA.
• Connector Type: Industry-standard RJ-45 for secure and reliable connections.
• Operating Temperature: Designed to perform optimally in industrial environments, with a range of 0°C to 60°C.
• Certifications: Achieves UL, CE, and RoHS compliance, affirming its quality and safety standards.

Applications

The GE IC695CMM002 module is an indispensable tool across various industrial applications, including:

• Establishing robust connections between RX3i PLCs and a wide array of legacy serial devices.
• Seamless integration with Modbus RTU networks, functioning effectively as a master or slave.
• Executing ASCII command communication for precise control over drives or sensors.
• Providing a reliable serial interface for essential equipment such as HMIs, industrial printers, and barcode readers.

Why Choose This Model?

Opting for the GE IC695CMM002 RX3i Serial Communication Module means investing in unparalleled reliability and flexibility for your industrial automation needs. Its dual-port design offers exceptional versatility, allowing you to connect various devices simultaneously using either RS-232 or RS-485 standards. The extensive protocol support, including SNP, RTU, Modbus, and ASCII, ensures broad compatibility and simplifies integration challenges. Built for demanding industrial environments, the IC695CMM002 features robust construction and onboard diagnostic LEDs, minimizing downtime and streamlining troubleshooting. Future-proof your operations and ensure continuous, efficient data flow with this high-performance module.

Order Now

Enhance your industrial control system with the advanced capabilities of the GE Fanuc IC695CMM002 RX3i Serial Communication Module. This essential component is currently in stock and available for immediate dispatch, with worldwide shipping options. Secure your module today to ensure uninterrupted and efficient operation of your integrated systems.
