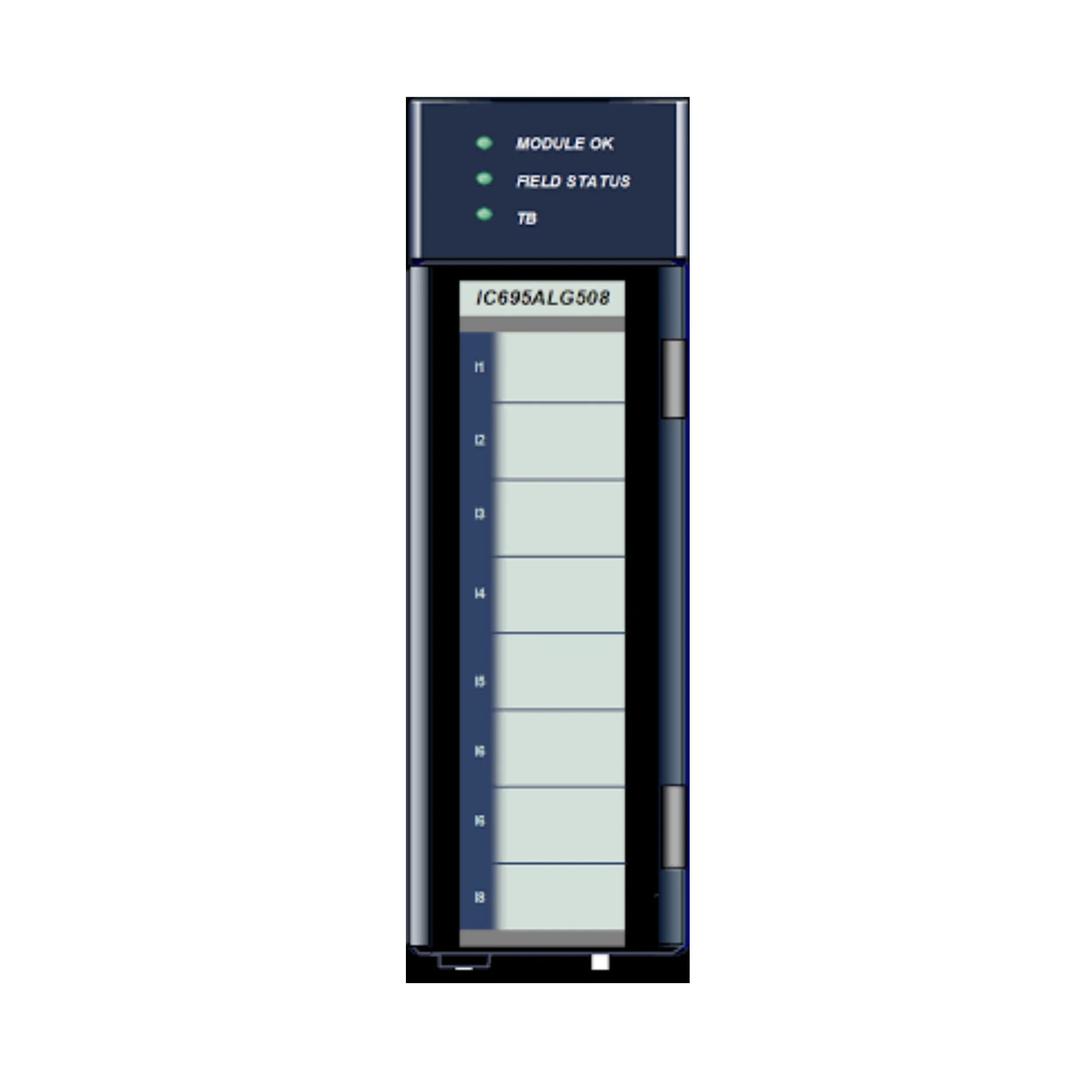

GE IC695ALG508

Overview

Elevate the precision and versatility of your industrial automation with the GE Fanuc IC695ALG508 RX3i Analog Output Module. Specifically engineered for the robust PACSystems RX3i platform, this 8-channel module provides an unparalleled level of control for diverse analog applications. Each of its eight outputs can be independently configured for either voltage or current signals, granting you the flexibility to seamlessly integrate with a wide array of industrial actuators, drives, and instrumentation. Boasting a high-resolution 15-bit digital-to-analog converter (DAC) and vital group isolation, the IC695ALG508 ensures exceptional signal accuracy, reliability, and system integrity, making it an indispensable component for critical control environments.

Key Features

• Versatile Output Types: Supports configurable voltage outputs (±10V, 0–10V) and current outputs (0–20mA, 4–20mA) to meet varied application requirements.
• Eight Independent Channels: Offers 8 individually configurable analog outputs, maximizing control flexibility and scope.
• High-Resolution Precision: Equipped with a 15-bit DAC, guaranteeing superior accuracy and fine control over analog signals.
• Robust Group Isolation: Provides enhanced signal integrity and protection through group isolation from the backplane and logic.
• Integrated Diagnostics: Features built-in open-wire detection and sophisticated fault monitoring for proactive maintenance and reduced downtime.
• Hot-Swappable Capability: Designed for hot-swappable installation in supported RX3i configurations, enabling seamless module replacement without system disruption.

Technical Specifications

• Model Number: IC695ALG508
• Output Ranges:
  • Voltage: 0–10V, ±10V
  • Current: 0–20mA, 4–20mA
• Resolution: 15-bit
• Accuracy: ±0.1% of full scale
• Minimum Load:
  • Voltage: ≥ 1 kΩ
  • Current: ≤ 750 Ω
• Power Requirements: 5V @ 150 mA, 24V @ 250 mA
• Operating Temperature: 0°C to 60°C
• Certifications: UL, CE, RoHS compliant

Applications

• Precision analog control within demanding process equipment and instrumentation systems.
• Sending accurate control signals to variable speed drives, sophisticated control valves, and signal converters.
• Integration into OEM systems requiring highly adaptable multi-format analog output capabilities.
• Enhancing industrial control systems where precise and reliable signal output is paramount for operational efficiency.

Why Choose This Model?

The GE Fanuc IC695ALG508 stands out as a superior choice for any RX3i control system requiring exceptional analog output performance. Its High-Resolution Output delivers the precision necessary for the most critical fine-tuning applications, ensuring your processes operate with optimal control. The module's Versatile Signal Configuration, supporting both current and voltage formats, provides unparalleled adaptability, reducing the need for multiple specialized modules. Crucially, Group Isolation from the backplane and logic significantly enhances signal integrity, protecting against interference and contributing to overall system safety and longevity. Furthermore, the Integrated Diagnostics with open-wire detection and fault monitoring drastically simplifies troubleshooting and maintenance, ensuring maximum uptime and operational efficiency. Choosing the IC695ALG508 means investing in a reliable, high-performance module that perfectly balances flexibility, precision, and robust design.

Order Now

Secure your competitive edge in industrial automation. The GE Fanuc IC695ALG508 RX3i Analog Output Module is currently in stock and available for immediate dispatch. Benefit from our fast, reliable worldwide shipping and upgrade your control system today. Explore our extensive selection of GE Industrial Automation Products, including a comprehensive range of PLCs, I/O modules, power supplies, CPUs, communication modules, and other advanced industrial control solutions to complement your system.
