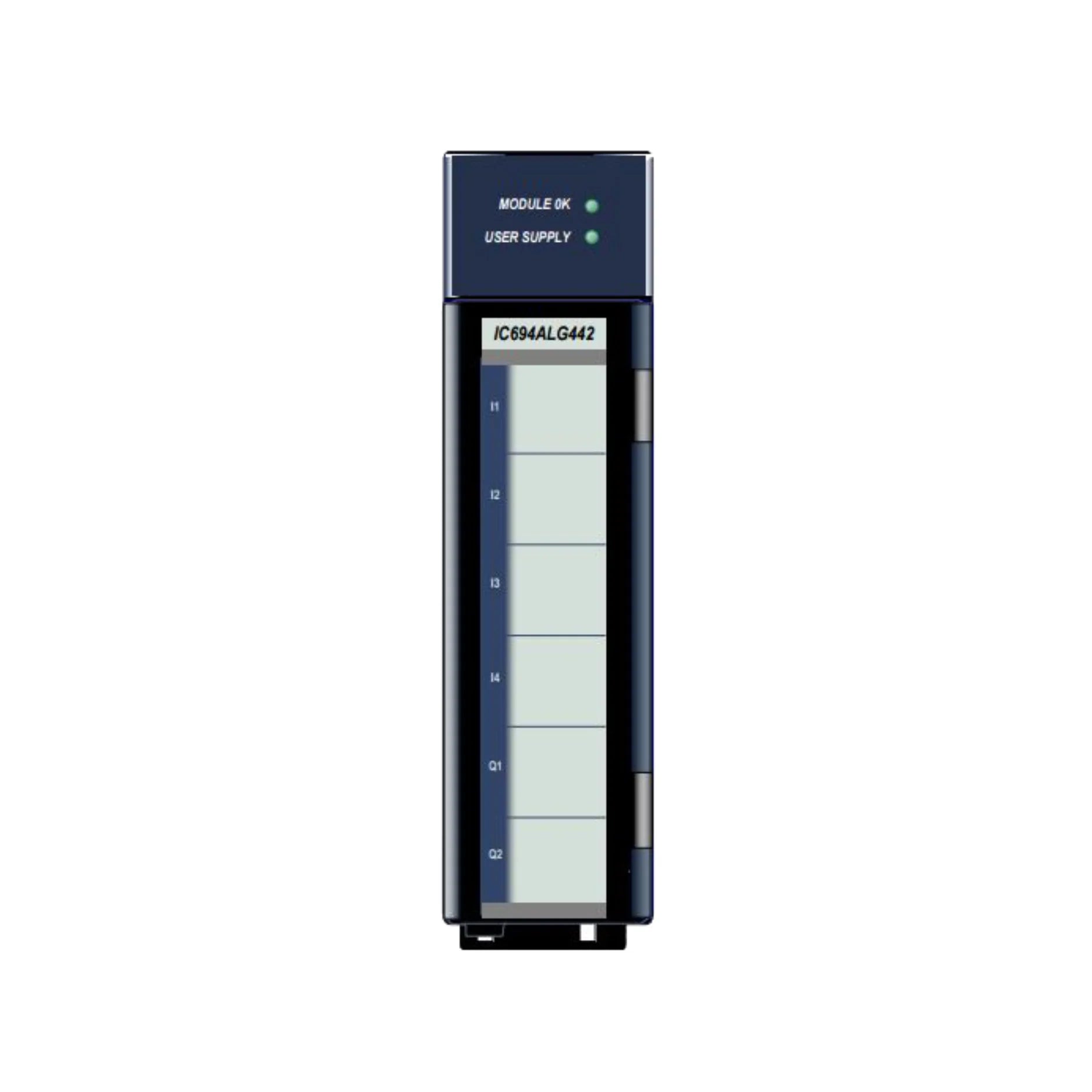

GE IC694ALG442

Overview

The GE Fanuc IC694ALG442 is a high-performance 4-channel analog voltage output module meticulously engineered for the robust PACSystems RX3i series. This versatile module offers exceptional precision and control, supporting user-configurable output ranges of either 0–10V or ±10V. This flexibility allows for seamless integration and precise command over a diverse array of industrial devices, including drives, actuators, and analog indicators. Designed with a focus on high-resolution output and unwavering industrial reliability, the IC694ALG442 stands as an indispensable component for a broad spectrum of analog signal control applications.

Key Features

• Output Type: Analog voltage, offering both 0–10V and ±10V configurable ranges for maximum versatility.
• Channels: Four independent channels, enabling multi-device control from a single module.
• Resolution: High-precision 16-bit D/A conversion ensures accurate and granular control over output signals.
• Accuracy: Boasts an impressive ±0.1% of full scale accuracy, critical for sensitive industrial processes.
• Isolation: Features group isolation from logic and field, enhancing system integrity and reducing interference.
• Status Indicators: Equipped with a module-level LED for quick and efficient diagnostic checks.
• Hot-Swappable: Supports hot-swapping when utilized in compatible RX3i racks, minimizing downtime during maintenance.

Technical Specifications

• Model Number: IC694ALG442
• Output Ranges: Selectable per channel, providing 0–10V or ±10V to meet specific application requirements.
• Load Resistance: Optimized for load resistances of ≥2 kΩ, ensuring stable performance.
• Update Rate: Achieves a rapid update rate of less than 2 ms per channel, vital for real-time applications.
• Power Requirements: Efficient power consumption at 5V @ 80 mA and 24V @ 60 mA.
• Operating Temperature: Designed for demanding industrial environments with an operating temperature range of 0°C to 60°C.
• Certifications: Complies with global standards, including UL, CE, and RoHS, guaranteeing safety and environmental responsibility.

Applications

The GE IC694ALG442 module's robust design and precise control capabilities make it ideal for a wide array of industrial applications, including:

• Accurate analog voltage control for industrial drives and various actuators.
• Seamless interfacing with analog meters, indicators, and diverse third-party controllers.
• Integral component in process control systems leveraging voltage-based I/O.
• Essential for OEM equipment demanding highly precise voltage outputs for optimal operation.

Why Choose This Model?

The GE IC694ALG442 stands out in the market for several compelling reasons:

• Flexible Voltage Ranges: Its ability to configure voltage ranges for each channel offers unparalleled adaptability to different control scenarios.
• High Accuracy & Resolution: The 16-bit output coupled with superior accuracy ensures exceptionally precise and reliable control over critical processes.
• Compact Design: Delivering four powerful outputs within a single-slot RX3i module, it optimizes panel space and simplifies system architecture.
• Reliable Operation: Built for the rigors of continuous industrial use, ensuring long-term stability and performance in challenging environments.

Order Now

Elevate your industrial control systems with the GE Fanuc IC694ALG442 RX3i Analog Output Module. This indispensable component is readily available and poised for fast global shipping to meet your project deadlines and operational needs.
