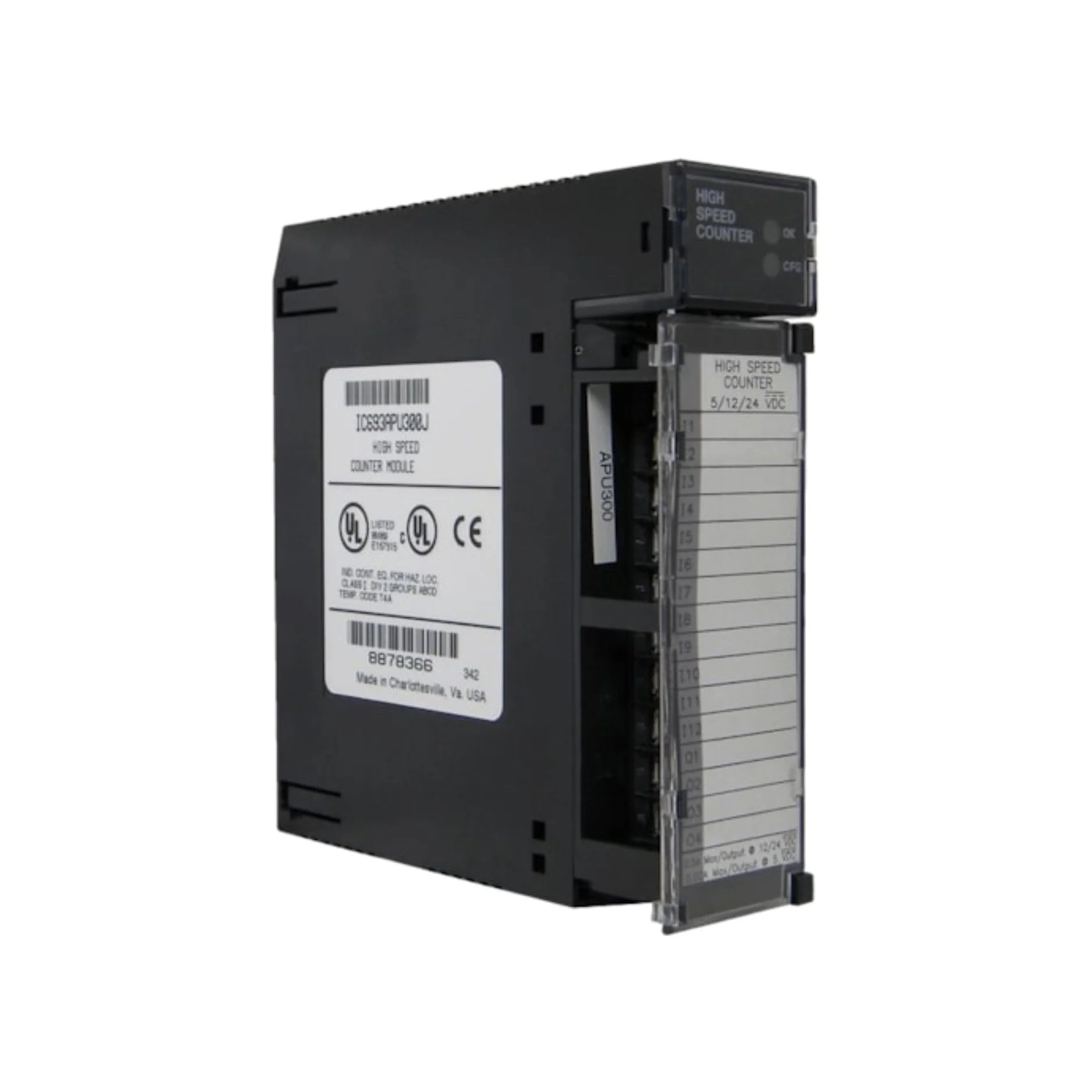

GE IC693APU300

Overview

Unlock unparalleled precision and speed for your industrial automation tasks with the GE IC693APU300 Series 90-30 High-Speed Counter Module. Engineered by GE Fanuc (now part of Emerson), this robust module is an essential component for any Series 90-30 PLC system requiring accurate real-time counting and positioning. It comes equipped with two independent, configurable input channels, supporting frequencies up to an impressive 500 kHz. Compatibility with both pulse and quadrature signals makes the IC693APU300 exceptionally versatile, seamlessly integrating with various encoders and advanced motion control systems. Whether you're enhancing an existing setup or designing a new high-performance application, this module delivers the reliability and accuracy GE Fanuc is known for.

Key Features

• Module Type: High-Speed Counter (HSC) for precise industrial applications.
• Input Channels: 2 independently configurable channels, offering flexible application design.
• Input Voltage: Wide compatibility with 12–24VDC systems.
• Maximum Frequency: Supports inputs up to 500 kHz for high-speed data acquisition.
• Input Types:
  • Pulse (single pulse and direction)
  • Quadrature (X1, X2, X4 decoding for enhanced resolution)
• Supported Modes:
  • Up/Down counting
  • A/B quadrature counting
  • Single or dual counter mode operation
• Brand & Series: Genuine GE Fanuc (Emerson) Series 90-30 module.

Technical Specifications

• Model Number: IC693APU300
• Input Voltage Range: 12–24VDC
• Input Frequency: Up to 500 kHz
• Input Isolation: 1500V field-to-logic isolation for enhanced safety and noise immunity.
• Backplane Power Draw: 5V @ 320 mA
• Output Signals: No discrete outputs (input-only module).
• Operating Temperature: Designed for industrial environments, 0°C to 60°C.
• Configuration: Easily configured via standard GE programming software such as Logicmaster 90 or Proficy ME.
• Certifications: UL Listed, CE Compliant, RoHS Compliant, ensuring global standards adherence.

Applications

The GE IC693APU300 is an indispensable tool across a diverse range of industrial applications requiring high-accuracy counting and positioning:

• Rotary Encoder Input: Perfect for precise position feedback in robotics, machinery, and automated assembly lines.
• Linear Measurement & Length Control: Essential for cut-to-length systems, material processing, and quality control.
• Industrial Packaging: Optimizes speed and accuracy in filling, sealing, and sorting operations.
• Material Handling Systems: Enhances conveyor belt control, item tracking, and automated storage and retrieval (AS/RS) systems.
• High-Speed Process Monitoring: Accurately totalize events, measure flow rates, and monitor production cycles in real-time.
• Motion Control Systems: Provides critical feedback for servo and stepper motor control, improving dynamic positioning.

Why Choose This Model?

The GE IC693APU300 stands out in the market for several compelling reasons:

• Superior High-Speed Performance: With support for up to 500 kHz input frequency, it effortlessly handles the most demanding high-speed counting applications, ensuring no pulses are missed.
• Exceptional Flexibility: Its ability to decode pulse, direction, and quadrature encoding (X1, X2, X4) offers unparalleled adaptability to various sensor types and application requirements.
• Independent Dual-Channel Design: The two independently configurable channels allow for simultaneous monitoring of two separate processes or redundant measurement for critical applications, maximizing efficiency.
• Unmatched Precision Counting: Engineered for real-time motion and speed applications, this module guarantees the precise data needed for intricate control and accurate feedback, reducing errors and improving operational efficiency.
• Trusted Brand Quality: As a product from GE Fanuc (Emerson), you're investing in a legacy of industrial automation excellence, ensuring reliability, longevity, and superior performance.
• Seamless Integration: Designed specifically for the Series 90-30 PLC platform, integration is straightforward, minimizing setup time and maximizing uptime.

Order Now

Elevate your automation capabilities with the GE IC693APU300 Series 90-30 High-Speed Counter Module. This essential component is currently available and ready for fast, reliable global shipping to get your systems upgraded without delay. Don't compromise on precision or speed – choose the trusted solution.
