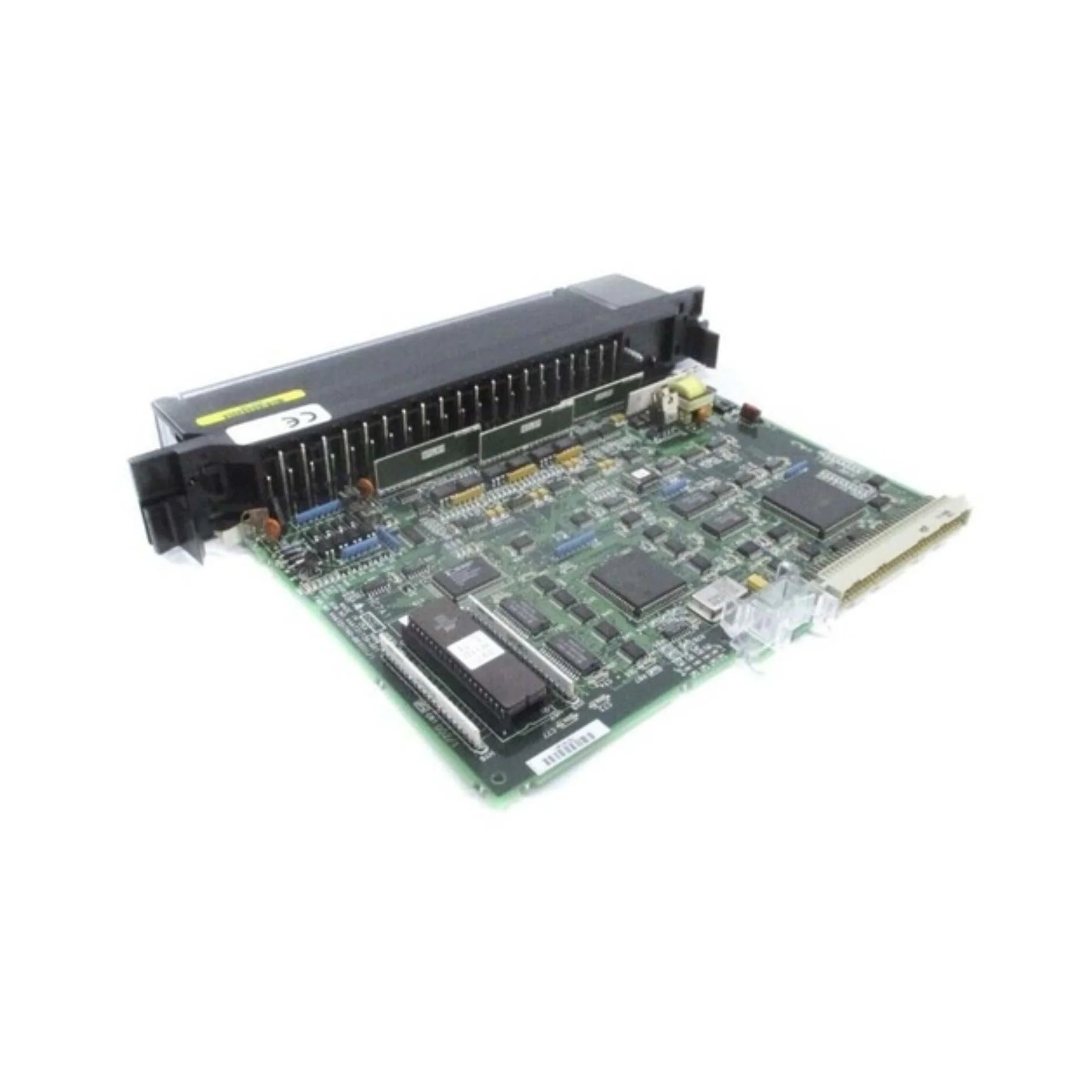

GE IC697HSC700

Overview

Unlock superior precision and speed in your industrial automation with the GE Fanuc IC697HSC700 High-Speed Counter Module. Engineered specifically for the robust GE Fanuc Series 90-70 PLC system, this advanced module is indispensable for applications demanding rapid pulse detection and input response. Featuring two independent, high-speed counting channels, the IC697HSC700 is a critical component for optimizing performance in dynamic environments such as high-speed packaging lines, intricate material handling systems, and sensitive motion control applications. Its ability to accurately track fast-changing signals ensures unparalleled operational efficiency and data integrity, making it a cornerstone for modern industrial control.

Key Features

• Channels: Two independent high-speed counting channels, providing versatile application capabilities.
• Input Voltage: Operates seamlessly with both 12VDC and 24VDC input power sources.
• Input Frequency: Supports an impressive input frequency of up to 100 kHz for rapid data acquisition.
• Counter Modes: Offers flexible counting operations including Up/Down, Quadrature, and Single Counter modes to suit diverse control needs.
• Diagnostics: Equipped with intuitive LED indicators for real-time channel status and error monitoring, ensuring quick troubleshooting.
• Input Isolation: Features robust optical isolation between the field and logic to protect against electrical noise and provide reliable operation.
• Mounting: Designed for easy integration into a standard slot within the Series 90-70 I/O base.

Technical Specifications

• Model Number: IC697HSC700
• Number of Inputs: Four discrete inputs per channel (A, B, Z, and Gate) for comprehensive signal acquisition.
• Input Voltage Range: Wide input voltage compatibility from 10.2V to 30VDC.
• Input Current: Efficient power consumption, typically 7 mA at 24VDC.
• Maximum Frequency: Capable of handling up to 100,000 pulses per second, ideal for high-speed processes.
• Isolation: Superior 1500V isolation between field and logic circuitry for enhanced system protection.
• Backplane Power Consumption: Consumes 5V @ 800 mA from the backplane.
• Operating Temperature: Designed to perform reliably in a broad temperature range from 0°C to 60°C.
• Certifications: Complies with industry-leading safety and quality standards, including UL and CE certifications.

Applications

The GE Fanuc IC697HSC700 is engineered for a wide array of demanding industrial applications where precise and high-speed counting is paramount:

• Position Tracking with Encoders: Essential for accurate feedback in robotic systems, CNC machines, and automated assembly lines.
• Pulse Counting from Flowmeters or Speed Sensors: Provides critical data for process control, volume measurement, and motor speed regulation.
• High-Speed Event Monitoring: Ideal for detecting and reacting to rapid occurrences in manufacturing and quality control processes.
• OEM Motion Control and Machine Feedback Systems: A vital component for original equipment manufacturers seeking robust and responsive control solutions.

Why Choose This Model?

The GE Fanuc IC697HSC700 stands out as a premier choice for enhancing your Series 90-70 PLC system, offering a compelling blend of performance, flexibility, and reliability:

• Unmatched High-Speed Performance: With input frequencies up to 100 kHz, this module ensures that even the fastest industrial processes are accurately monitored and controlled without compromise.
• Exceptional Flexibility: The availability of Up/Down, Quadrature, and Single Counter modes provides the versatility needed to adapt to complex application requirements, minimizing the need for multiple specialized modules.
• Engineered for Durability: Built to withstand the rigors of industrial environments, the IC697HSC700 guarantees long-term reliability and consistent performance, even in challenging operating conditions.
• Seamless Integration: As a native component of the GE Series 90-70 family, it integrates effortlessly with existing CPUs and I/O racks, ensuring a smooth setup and operation with minimal configuration effort.

Order Now

Elevate your automation capabilities today with the GE Fanuc IC697HSC700 High-Speed Counter Module. This essential component is currently in stock and available for immediate global shipment, ensuring that your critical projects can proceed without delay. For more solutions within this series, please refer to our comprehensive range of GE IC697 PLC Series 90-70 products. Additionally, explore our extensive inventory of GE Industrial Automation Products, which includes a wide selection of PLC systems, I/O modules, Human-Machine Interfaces (HMIs), advanced servo drives, and robust power solutions to meet all your industrial control needs.
