GE IC694MDL241

Overview

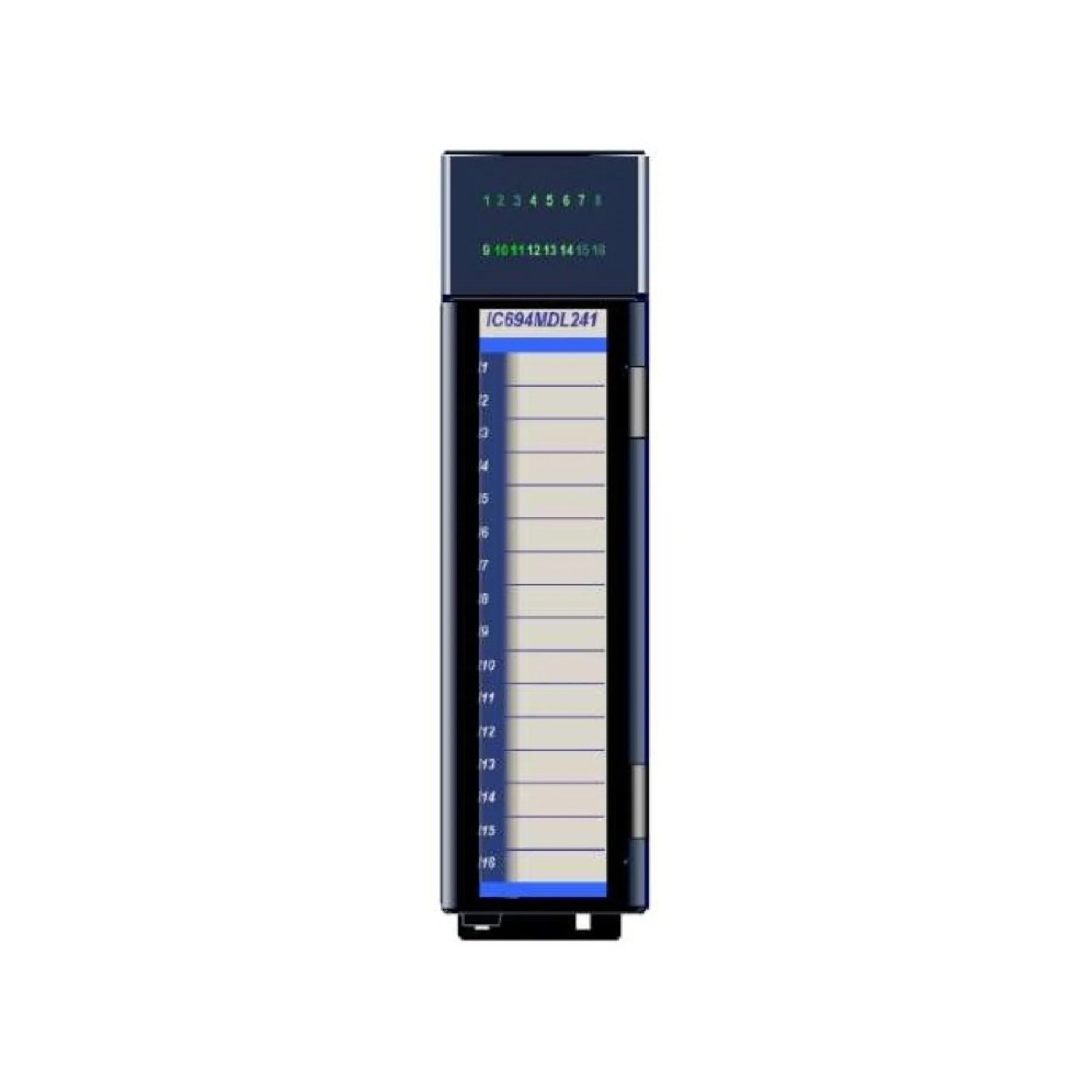

Unleash the full potential of your industrial automation systems with the GE Fanuc IC694MDL241, a high-performance 16-point discrete output module meticulously engineered for the PACSystems RX3i platform. This robust module is your go-to solution for reliable control of DC loads, delivering 24VDC sourcing outputs (positive logic) perfectly suited for driving a wide array of industrial components such as solenoids, indicators, and relays. Designed with versatility in mind, its outputs are intelligently arranged into two isolated groups of eight, providing unparalleled flexibility in wiring configurations and significantly enhancing noise immunity for mission-critical applications. Experience seamless integration and exceptional performance with a module built for the demands of modern industrial environments.

Key Features

• Output Type: Precision 24VDC sourcing (positive logic) for dependable DC load control.
• Output Channels: Sixteen individual channels, strategically organized into two isolated groups of eight, ensuring enhanced electrical protection and application flexibility.
• Current per Output: Capable of delivering a robust current of up to 0.5A per point, catering to diverse power requirements.
• Total Module Load: Supports a substantial total load of up to 4A per isolated group, handling demanding applications with ease.
• Protection: Integrated overcurrent and short-circuit protection safeguards your system against electrical anomalies, ensuring long-term reliability.
• Indicators: Equipped with 16 intuitive LEDs, one for each channel, providing real-time output status for quick and efficient diagnostics.
• Hot-Swappable: Designed for convenience, this module is hot-swappable when utilized within RX3i systems, minimizing downtime during maintenance or upgrades.

Technical Specifications

• Model Number: IC694MDL241
• Voltage Range: Operates efficiently within a broad range of 19.2–28.8 VDC.
• Nominal Voltage: Optimized for a nominal voltage of 24 VDC.
• Output Current (max): Delivers a maximum of 0.5A per channel, with an impressive 4A maximum per group.
• Minimum Load Current: Ensures reliable operation even with a minimum load current of 1 mA.
• Voltage Drop (ON): Exhibits minimal voltage drop of <0.25 V at rated load, ensuring consistent power delivery.
• Isolation: Provides robust 250V isolation between groups and logic, enhancing safety and preventing interference.
• Power Requirements: Efficiently operates with power requirements of 5V at 130 mA.
• Operating Temperature: Engineered to perform flawlessly across a wide operating temperature range of 0°C to 60°C.
• Certifications: Compliant with industry-leading UL and CE certifications, guaranteeing quality and safety.

Applications

The GE Fanuc IC694MDL241 is a versatile component essential for a multitude of industrial applications, including but not limited to:

• DC-Powered Relay Control: Precisely controlling DC relays for various switching tasks.
• Solenoid and Actuator Control: Driving solenoids and actuators with accuracy for automated processes.
• Panel Indicators and Pilot Lamps: Illuminating panel indicators and pilot lamps for clear operational feedback.
• Machine Control in OEM and Industrial Automation Systems: Forming the backbone of intricate machine control within both Original Equipment Manufacturer (OEM) setups and broader industrial automation environments.

Why Choose This Model?

The GE Fanuc IC694MDL241 stands out as an exceptional choice for your industrial automation needs due to its unparalleled combination of reliability, flexibility, and advanced features:

• Reliable Sourcing Outputs: Engineered to provide consistent and dependable positive logic DC load control, ensuring your operations run smoothly and without interruption.
• Group Isolation: The innovative group isolation feature not only offers greater flexibility in wiring your systems but also provides superior electrical protection, safeguarding sensitive components and enhancing overall system integrity.
• Diagnostic LEDs: Equipped with bright, individual LED indicators, this module allows for effortless and immediate channel-level troubleshooting, significantly reducing diagnostic time and streamlining maintenance.
• Compact Design: Despite its powerful capabilities, the IC694MDL241 boasts a compact design, integrating 16 high-performance outputs into a single-slot module. This space-saving feature optimizes panel real estate and simplifies system expansion.
• Brand Trust: As a product from GE Fanuc (Emerson), you are investing in a legacy of industrial excellence and innovation, ensuring a product that meets the highest standards of quality and performance.

Order Now

Elevate your industrial control systems today with the GE Fanuc IC694MDM241 16-point 24VDC Sourcing Output Module. This essential component is readily available and poised to enhance the efficiency and reliability of your operations. Experience swift and secure delivery as we proudly offer worldwide shipping to meet your global demands. Secure yours today and take the next step in optimizing your industrial automation!
