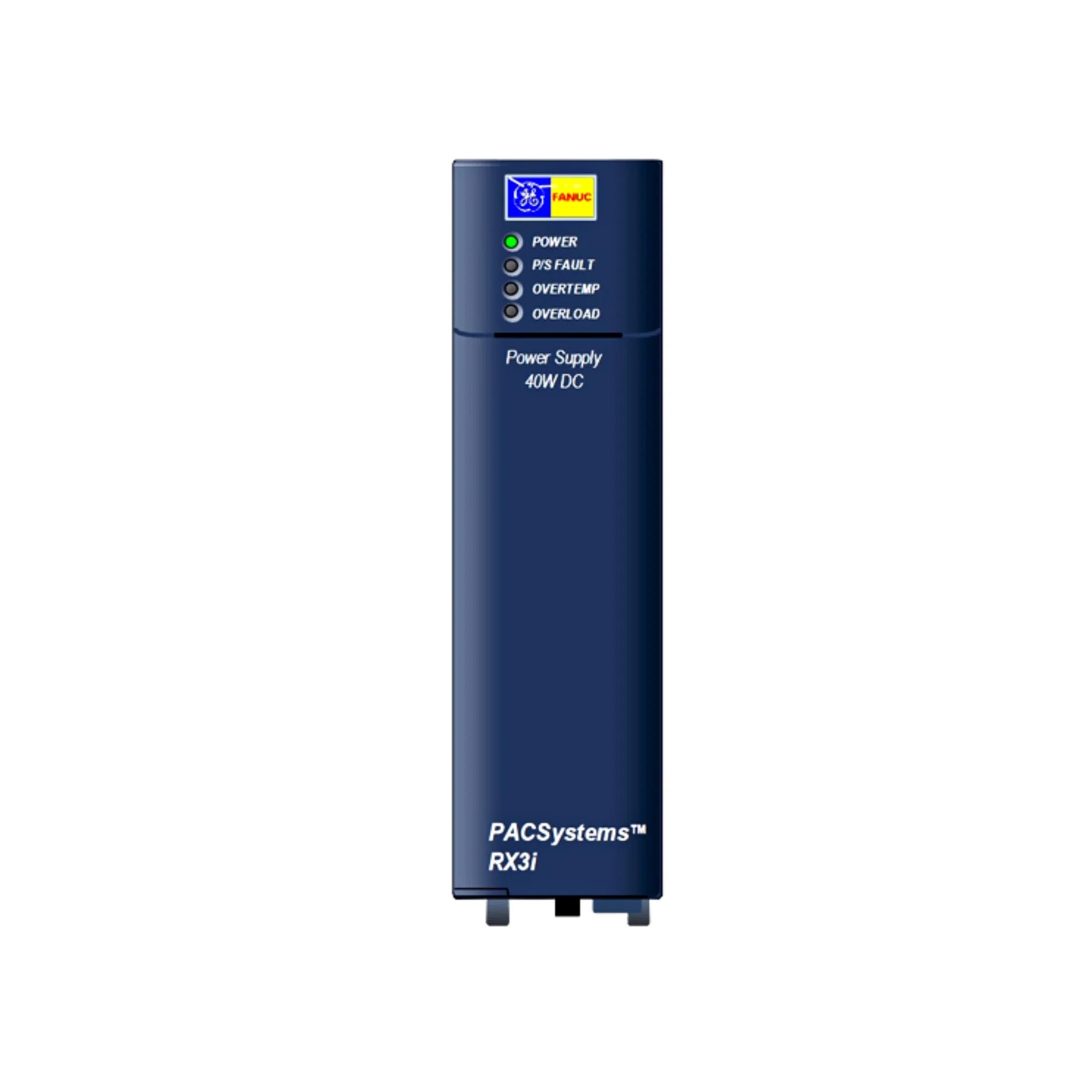

GE IC695PSD140

Overview

The GE Fanuc IC695PSD140 is a robust 40-watt power supply module specifically engineered for the advanced PACSystems RX3i series. This unit is designed to meet the rigorous demands of industrial and utility environments, accepting a nominal 125VDC input. It efficiently converts this to stable regulated outputs of +5VDC, +3.3VDC, and +24VDC for relay power, ensuring reliable operation of your critical systems. A key feature of the IC695PSD140 is its capability for redundant configurations, significantly enhancing system uptime and reliability when paired with another identical module. Its expansive operating temperature range further solidifies its suitability for deployment in the most challenging conditions, making it an indispensable component for high-reliability applications.

Key Features

• Input Voltage: 125VDC nominal (wide operating range of 100–150VDC)
• Output Power: Generous 40W total output capacity
• Multiple Outputs:
  • +5VDC at 4A
  • +3.3VDC at 0.5A
  • +24VDC for relay power
• Redundancy Support: Fully supports dual-redundant configurations for enhanced system reliability
• Status Indicators: Equipped with clear Power OK and Fault LEDs for quick diagnostics
• Hot-Swappable: Not hot-swappable
• Mounting: Designed for seamless integration into any universal RX3i baseplate slot
• Wide Operating Temperature: Exceptional operating range from –40°C to +70°C, suitable for extreme environments

Technical Specifications

• Model Number: IC695PSD140
• Input Voltage Range: 100–150VDC
• Efficiency: Greater than 70%
• Protection: Integrated overcurrent and overvoltage protection for secure operation
• Isolation: Features input to output isolation to ensure safety and prevent electrical interference
• Power Consumption: Approximately 40W, dependent on the connected load
• Certifications: Complies with UL, CE, and RoHS standards, ensuring international acceptance and environmental responsibility
• Compatibility: Fully compatible with PACSystems RX3i CPUs, I/O modules, and communication modules, preserving ecosystem integrity

Applications

• Critical utility substations and power generation facilities requiring stable and reliable power
• High-reliability industrial automation systems where continuous operation is paramount
• Redundant power configurations for mission-critical systems where downtime is unacceptable
• RX3i racks deployed in extreme environments, including outdoor and harsh industrial settings
• Manufacturing plants and process control systems demanding robust power solutions

Why Choose This Model?

The GE Fanuc IC695PSD140 stands out as an exceptional choice for demanding industrial applications due to its specialized features. It is meticulously Designed for Redundancy, enabling you to construct fault-tolerant systems that maintain uninterrupted uptime, a critical factor in sensitive operations. The specific 125VDC Input capability makes it an ideal fit for integration within established power plants and utility systems, providing direct compatibility with existing infrastructure. Its remarkable Wide Temperature Range ensures reliable performance in extreme conditions, whether in freezing outdoor installations or high-heat industrial furnace controls. Finally, its Universal Integration into the RX3i system guarantees a seamless fit, simplifying installation and maintenance while maximizing compatibility with your existing GE PACSystems architecture. Choosing the IC695PSD140 means investing in a power supply that delivers longevity, performance, and peace of mind.

Order Now

Elevate the reliability and performance of your industrial control systems with the GE Fanuc IC695PSD140 RX3i Power Supply. This essential component is currently available and ready for immediate shipment to locations worldwide, ensuring quick deployment for your critical projects. For additional options within this product family, please return to our GE IC695 PLC Series 90-30 page. To explore a comprehensive array of industrial control solutions, including a full range of PLCs, I/O modules, power supplies, CPUs, and communication modules, we invite you to browse our complete collection of GE Industrial Automation Products.
