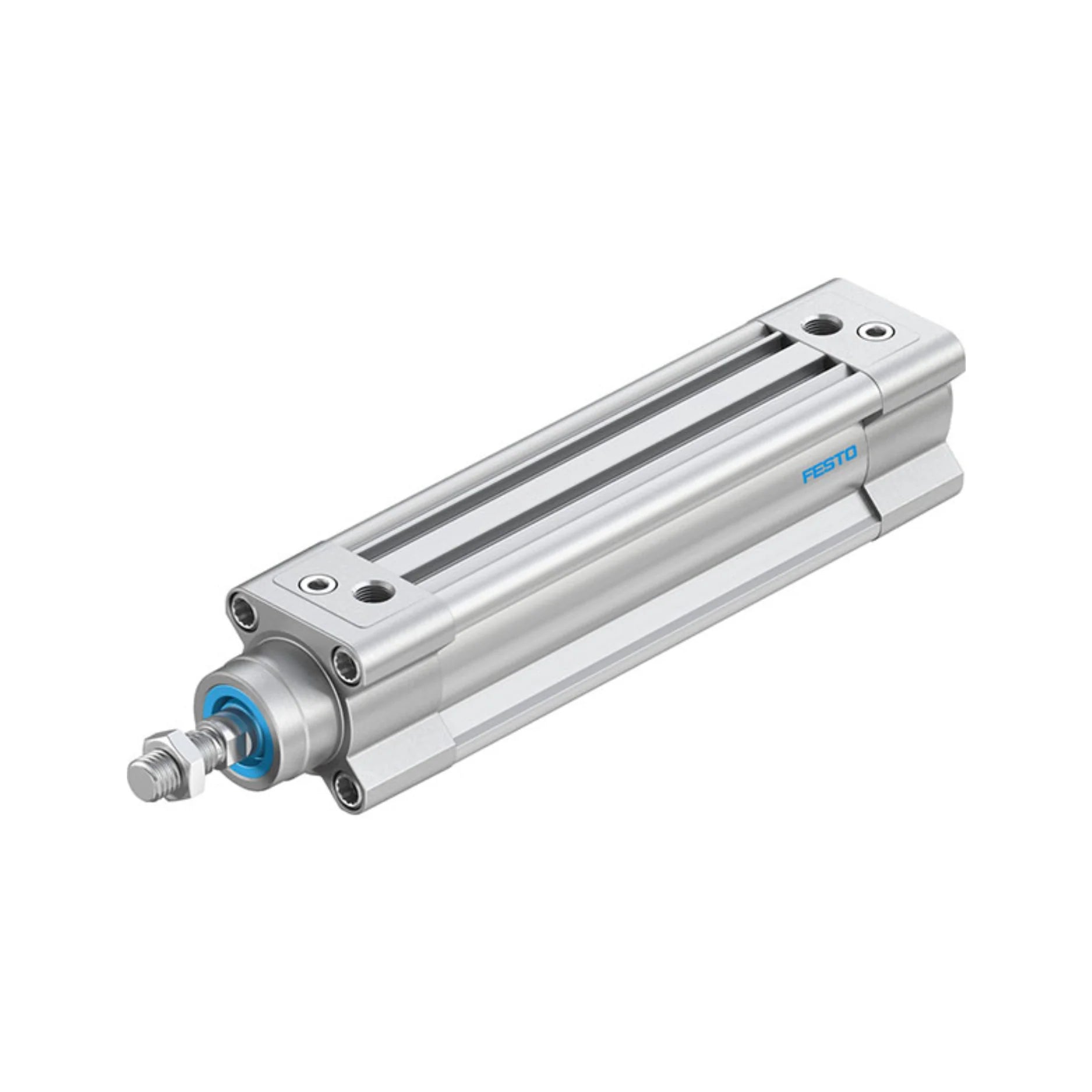

DSBC-32-100-PPVA-N3

Overview

The Festo DSBC-32-100-PPVA-N3 stands as a premium ISO 15552-compliant pneumatic cylinder, meticulously engineered to deliver unparalleled precision and reliability in diverse industrial automation environments. This robust and versatile cylinder is specifically designed to provide seamless linear motion control, ensuring optimal performance and extending the lifespan of your automated systems. With its 32 mm bore size and 100 mm stroke length, it offers efficient force output and ample reach for a multitude of applications. The integrated adjustable pneumatic cushioning (PPVA) is a cornerstone of its design, allowing for finely tuned deceleration and shock absorption, which translates to smoother operation, significantly reduced impact forces on machinery, and enhanced component longevity. Crafted from high-quality anodized aluminum, the DSBC-32-100-PPVA-N3 combines lightweight characteristics with exceptional durability, making it an indispensable component for demanding industrial settings.

Key Features

• Standard Compliance: Adheres strictly to ISO 15552, guaranteeing universal compatibility and effortless integration into existing pneumatic systems.
• Optimal Bore Size: A 32 mm bore ensures strong, consistent force generation for effective actuation.
• Extended Stroke Length: A 100 mm stroke provides generous travel for a wide array of linear motion tasks.
• Precision Cushioning: Features adjustable pneumatic cushioning (PPVA) for smooth, controlled end-position damping, minimizing noise and vibrations.
• Durable Construction: Fabricated from anodized aluminum, offering an excellent balance of low weight and high resistance to wear and corrosion.
• Versatile Mounting: Designed with multiple mounting configurations to facilitate flexible and straightforward installation in various orientations.
• Corrosion-Resistant Piston Rod: Ensures prolonged operational life and consistent performance even in challenging industrial atmospheres.
• Advanced Sealing System: Equipped with premium-grade seals to prevent air leakage, maintaining system efficiency and reliability.

Technical Specifications

• Bore Diameter: 32 mm
• Stroke Length: 100 mm
• Operating Pressure: Engineered to perform flawlessly within standard industrial pneumatic operating pressures.
• Operating Medium: Compatible with compressed air conforming to ISO 8573-1:2010 [7:4:4].
• Cushioning: Adjustable pneumatic cushioning (PPVA) for customized deceleration profiles.
• Operating Temperature Range: Built to withstand a wide range of temperatures, suitable for diverse industrial environments.
• Material Composition:
  • Cylinder Barrel: Anodized aluminum
  • End Caps: High-strength aluminum alloy
  • Seals: Industrial-grade elastomer for maximum sealing integrity

Applications

• Factory Automation: Essential for precise and repeatable linear movements in automated assembly lines and production processes.
• Pneumatic Actuation: Provides consistent and controlled force for operating valves, clamps, and other machinery components.
• Manufacturing & Assembly Lines: Enhances the efficiency and accuracy of pick-and-place operations and material handling.
• Robotics & Motion Control: Supports the execution of intricate and high-precision movements in robotic systems and advanced motion control setups.
• Packaging Machinery: Ideal for pushing, pulling, lifting, and sorting tasks within packaging equipment.

Why Choose This Model?

Opting for the Festo DSBC-32-100-PPVA-N3 means investing in a solution that is synonymous with reliability, performance, and longevity. This cylinder's adherence to the ISO 15552 standard simplifies integration and guarantees interoperability within your existing infrastructure. The standout feature of adjustable cushioning (PPVA) provides an unparalleled level of control over the cylinder's motion, significantly reducing wear and tear on both the cylinder and the machinery it operates. Its lightweight yet incredibly durable anodized aluminum construction ensures sustained high performance even in the most demanding industrial conditions, offering a superior return on investment. Furthermore, the flexible mounting options mean that this cylinder can be seamlessly incorporated into virtually any application, allowing for optimal spatial utilization and design freedom. Choose the DSBC-32-100-PPVA-N3 for a cylinder that not only meets but exceeds the stringent requirements of modern industrial automation.

Order Now

Elevate the efficiency, precision, and durability of your industrial automation systems with the Festo DSBC-32-100-PPVA-N3 pneumatic cylinder. Engineered to deliver exceptional performance in critical applications, this cylinder is a vital component for any advanced manufacturing or processing operation. Secure your high-performance solution today and experience the difference that Festo engineering brings to your industrial processes.
