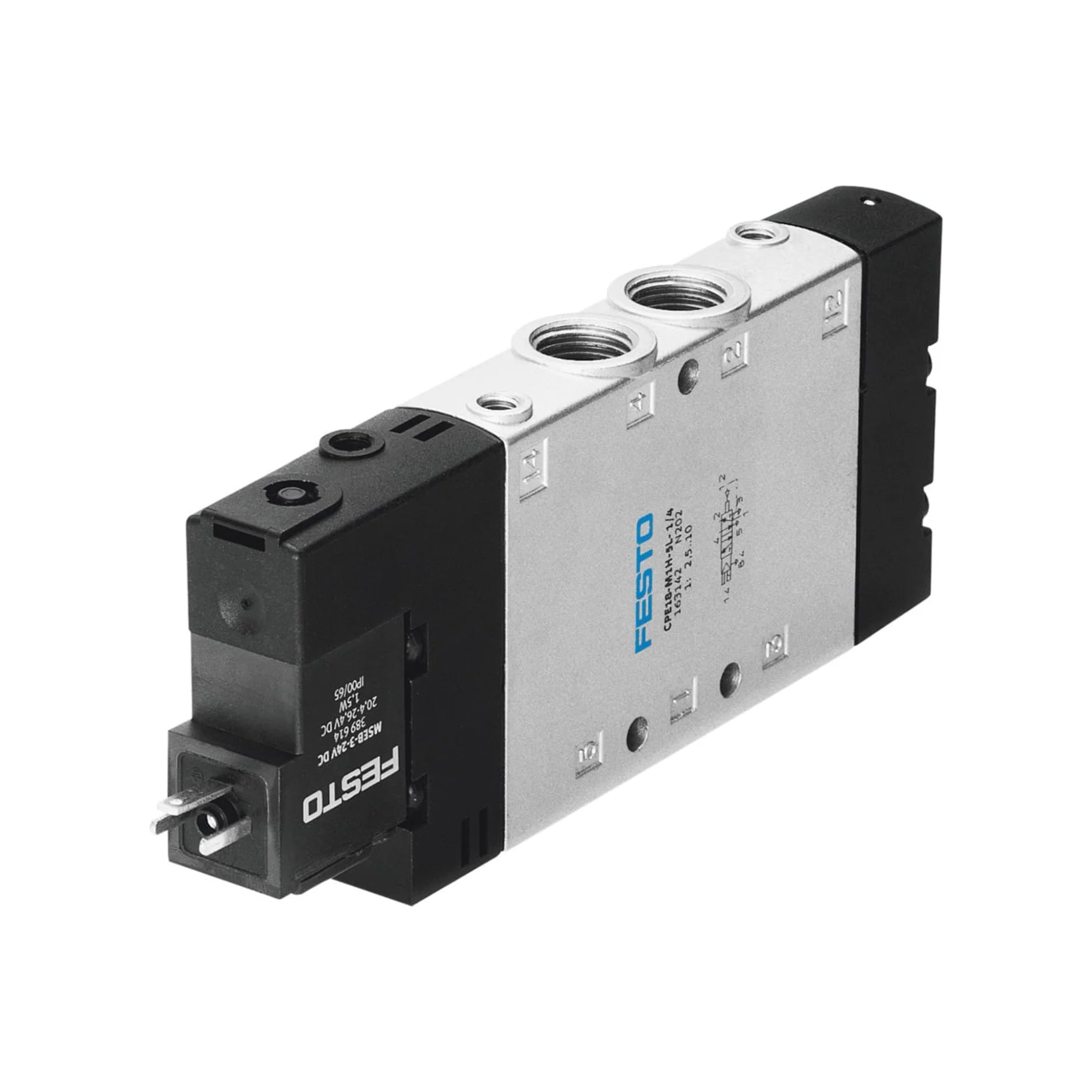

CPE18-M1H-5L-1/4 | 5/2-Way Monostable Solenoid Valve

Overview

The FESTO CPE18-M1H-5L-1/4 is a cutting-edge 5/2-way monostable solenoid valve, expertly engineered to provide precise and dependable pneumatic control within the most demanding industrial automation environments. Featuring a compact 18 mm construction width and robust G1/4 pneumatic ports, this high-performance valve guarantees an exceptional nominal flow rate, ensuring optimal efficiency and reliable actuation across a diverse range of applications. Its meticulous design focuses on delivering consistent performance, making it an ideal choice for systems where precision and durability are paramount.

Key Features

• Valve Function: 5/2-way, monostable for versatile control.
• Actuation Type: Electrical, providing responsive and accurate operation.
• Construction Width: 18 mm, facilitating compact and space-saving installations.
• Standard Nominal Flow Rate: Engineered for high-performance air flow, crucial for industrial automation.
• Pneumatic Working Ports: G1/4, ensuring broad compatibility and robust connections.
• Operating Pressure: Optimized to meet the rigorous demands of industrial use.
• Design: Piston gate valve, contributing to its robust and reliable performance.
• Reset Method: Pneumatic spring, offering consistent and automatic return.
• Degree of Protection: IP65 (with plug socket), providing excellent ingress protection against dust and water.
• Manual Override: Available as an accessory (detenting and non-detenting) for flexible system intervention.
• Mounting Position: Flexible installation options to suit various system configurations.
• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4], ensuring compatibility with standard industrial air quality.
• Temperature Range: Suitable for demanding industrial environments, ensuring consistent operation in varying conditions.

Technical Specifications

• Nominal Size: Optimized for superior pneumatic efficiency.
• Exhaust-Air Function: Includes a flow control option for fine-tuned exhaust management.
• Sealing Principle: Soft sealing, providing a secure and leak-free performance.
• Pilot Air Supply: Internal, simplifying installation and reducing external piping.
• Flow Direction: Non-reversible, ensuring predictable and controlled air movement.
• Switching Time On/Off: Engineered for rapid response, critical for high-speed applications.
• Duty Cycle: 100% (with holding current reduction), guaranteeing continuous operation without overheating.
• Electrical Connection: 2-pin, for straightforward and reliable power integration.
• Weight: Compact and lightweight design, easing handling and installation.
• Material Composition:
  • Seals: High-quality industrial-grade material, ensuring durability and longevity.
  • Housing: Constructed from durable materials for long-term use in harsh industrial settings.

Applications

• Industrial Automation: Commands actuators and cylinders with precision in automated machinery, significantly enhancing operational accuracy.
• Pneumatic Systems: Efficiently manages airflow within a wide array of pneumatic applications, optimizing system performance.
• Manufacturing: Streamlines operations in assembly lines and various production equipment, boosting productivity and reducing downtime.
• Robotics: Ideal for controlling robotic movements and end-effectors, providing reliable and repeatable actions.
• Packaging Machinery: Ensures precise and rapid control in packaging processes, contributing to higher throughput and reduced errors.

Why Choose This Model?

The FESTO CPE18-M1H-5L-1/4 stands out as a superior choice for several compelling reasons. Its compact 18 mm width allows for seamless integration into existing systems where space is at a premium, without compromising performance. The consistently high flow rate ensures that your pneumatic operations are not only efficient but also remarkably responsive, meeting the demands of high-cycle applications. Engineered for industrial automation, this valve offers unparalleled reliability, drastically reducing maintenance needs and improving overall system uptime. Furthermore, its flexible integration capabilities, including various mounting positions and convenient manual override options (detenting and non-detenting), provide significant adaptability and ease of use, making it a truly versatile and indispensable component for advanced pneumatic control.

Order Now

Elevate the efficiency and reliability of your pneumatic control systems by integrating the FESTO CPE18-M1H-5L-1/4 5/2-Way Monostable Solenoid Valve. This high-performance component is engineered to provide precise control and consistent operation, making it an indispensable asset for any industrial automation setup. Experience enhanced performance and robust reliability tailored specifically for the rigorous demands of industrial applications. Secure your pneumatic advantage today with the FESTO CPE18-M1H-5L-1/4.
