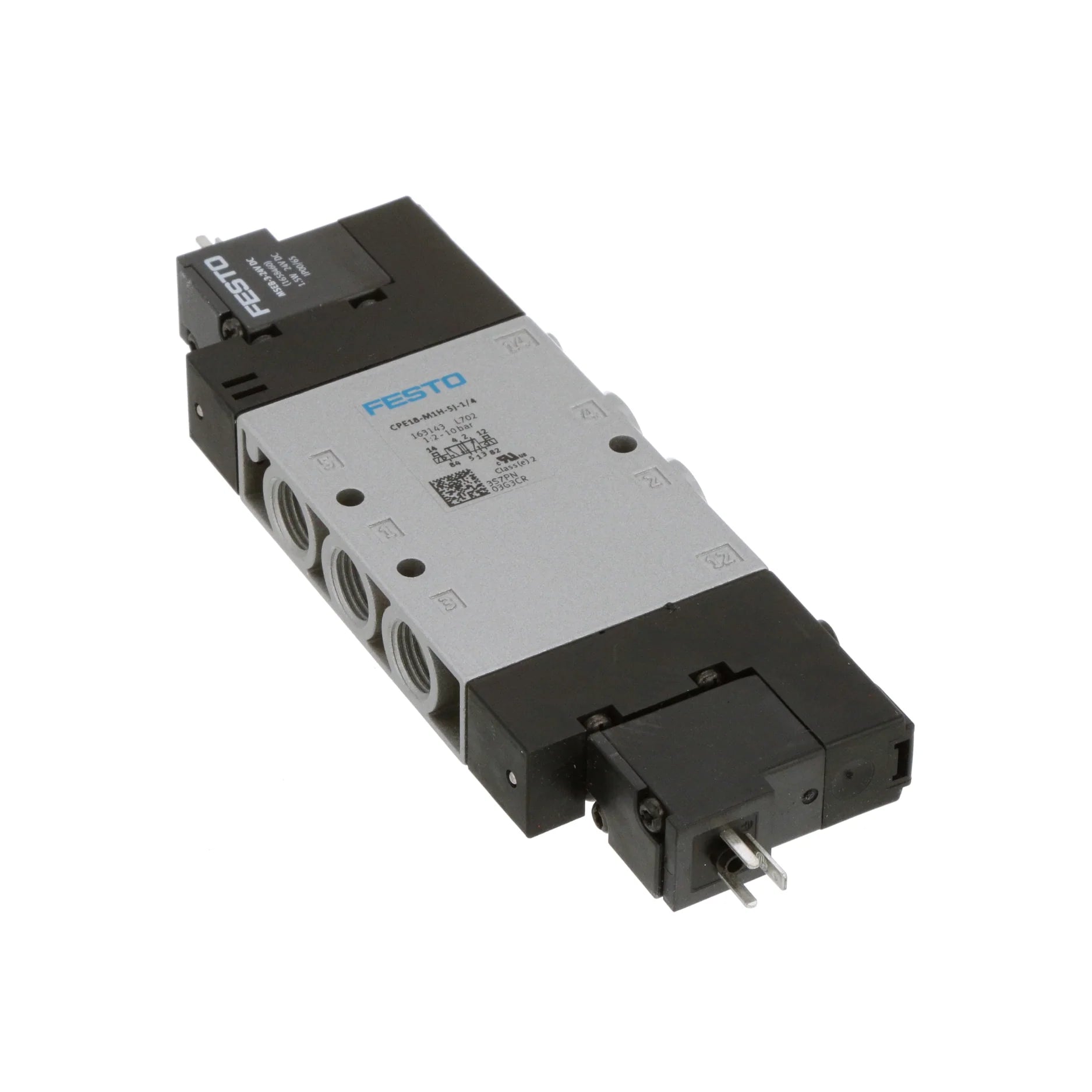

CPE18-M1H-5J-1/4

Overview

Elevate your industrial automation systems with the FESTO CPE18-M1H-5J-1/4, a state-of-the-art 5/2-way monostable solenoid valve engineered for unparalleled precision and reliability. This sophisticated pneumatic valve is your ultimate solution for meticulous airflow regulation, ensuring optimal performance in a diverse range of applications. Crafted with a compact 18 mm construction width and featuring robust G1/4 pneumatic ports, the CPE18-M1H-5J-1/4 is designed for seamless integration into existing setups while delivering rapid switching performance. This ensures swift and accurate actuation for pneumatic cylinders and complex control systems, critical for maintaining efficiency and productivity in demanding industrial environments.

Key Features

• Valve Function: 5/2-way monostable solenoid valve, offering precise control over pneumatic circuits.
• Actuation Type: Electrical, providing responsive and accurate operational commands.
• Construction Width: A remarkably compact 18 mm, facilitating space-saving installations in crowded control cabinets.
• Pneumatic Working Ports: Industry-standard G1/4 ports, guaranteeing wide compatibility with various pneumatic systems.
• Flow Rate: Optimized for high-efficiency airflow, reducing energy consumption and boosting system responsiveness.
• Operating Pressure Range: Engineered to excel across a broad spectrum of industrial pneumatic pressures, ensuring versatile application.
• Design: Robust piston spool valve construction, ensuring extended operational life and superior performance under continuous use.
• Reset Method: Reliable pneumatic spring return for consistent and dependable operation cycles.
• Degree of Protection: IP65 rated (when used with an appropriate plug socket), safeguarding against dust and water ingress in harsh industrial settings.
• Manual Override: Integrated for enhanced operational flexibility and convenient system testing or emergency control.
• Mounting Position: Designed to accommodate multiple installation orientations, offering unparalleled adaptability for diverse system layouts.
• Operating Medium: Optimized for use with compressed air conforming to ISO 8573-1:2010 [7:4:4], ensuring clean and efficient operation.

Technical Specifications

• Nominal Size: Precisely engineered for optimized pneumatic efficiency, delivering consistent and powerful performance.
• Exhaust-Air Function: Equipped with an optional flow control feature, allowing for fine-tuning of exhaust air for specialized applications.
• Sealing Principle: Utilizes a soft-seal design, guaranteeing leak-free operation and maximizing system integrity.
• Pilot Air Supply: Internal pilot air supply, simplifying plumbing and enhancing integration into compact systems.
• Switching Time: Boasts a fast response time, crucial for applications requiring high-speed and accurate control.
• Duty Cycle: Achieves a 100% duty cycle (with holding current reduction), ensuring continuous and reliable operation without overheating.
• Electrical Connection: Features a standard 2-pin electrical connection, simplifying wiring and installation.
• Weight: Lightweight and compact design contributes to ease of installation and reduced structural load.
• Material Composition:
  • Seals: Crafted from high-quality NBR, offering excellent resistance to wear and various operating fluids.
  • Housing: Constructed from durable die-cast aluminum, providing superior strength and protection against environmental factors.

Applications

• Factory Automation: Precisely controls actuators and complex pneumatic systems, driving efficiency in modern manufacturing.
• Manufacturing Processes: Significantly enhances precision and repeatability in assembly lines, contributing to higher quality output.
• Pneumatic Control Systems: Ensures smooth, stable, and accurate airflow regulation across a wide array of industrial applications.
• Robotic Motion Control: Provides rapid and accurate pneumatic actuation, critical for the dynamic and precise movements of robotic systems.

Why Choose the FESTO CPE18-M1H-5J-1/4?

The FESTO CPE18-M1H-5J-1/4 stands out as a superior choice for any industrial application demanding precision, reliability, and efficiency. Its compact 18 mm width allows for significant space savings, a critical advantage in increasingly condensed control environments. With its high-performance flow control and universal G1/4 connectivity, this valve ensures seamless integration and optimal functionality within diverse pneumatic systems. The robust construction and reliable operation guarantee long-term durability even in the most challenging industrial settings. Furthermore, its flexible mounting options and convenient manual override capability provide unmatched adaptability, catering to specific system requirements and operational preferences. Choose the CPE18-M1H-5J-1/4 for a solution that combines advanced engineering with practical utility, ensuring your operations run smoothly and efficiently.

Order Now

Transform your pneumatic automation infrastructure with the FESTO CPE18-M1H-5J-1/4 solenoid valve. Embrace a future of enhanced efficiency, unparalleled precision control, and enduring industrial performance. Invest in a product designed to exceed expectations and deliver consistent results. Secure your competitive edge by optimizing your systems with this cutting-edge FESTO valve today!
