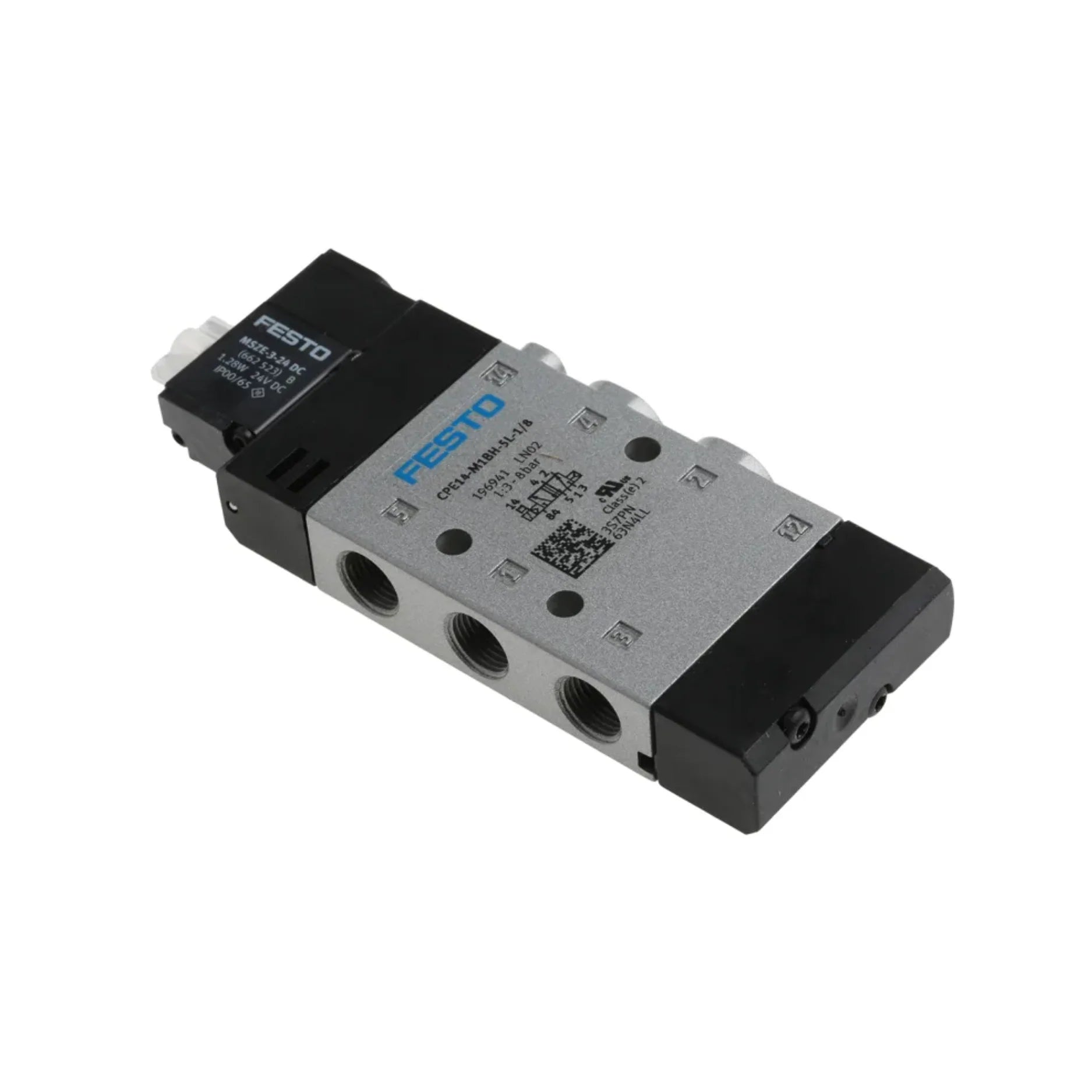

Festo CPE14-M1BH-5L-1/8 | 5/2-Way Monostable Solenoid Valve

Overview

The Festo CPE14-M1BH-5L-1/8 is a high-performance 5/2-way monostable solenoid valve engineered for superior control and reliability within diverse pneumatic systems. Expertly designed with a remarkably compact 14 mm width, this valve is the optimal solution for installations where space is a critical constraint. It stands out with a robust standard nominal flow rate of 800 l/min, guaranteeing consistent and responsive operation across a multitude of industrial automation environments. This valve epitomizes Festo's commitment to precision, offering seamless integration and long-lasting performance for your most demanding applications.

Key Features

• Valve Function: 5/2-way, monostable for precise directional control.
• Actuation Type: Electric, ensuring rapid and accurate switching.
• Construction Width: 14 mm, significantly saving valuable installation space.
• Standard Nominal Flow Rate: 800 l/min, supporting high-demand pneumatic operations.
• Pneumatic Working Ports: G1/8, compliant with standard connection requirements.
• Operating Voltage: 24V DC, a common and reliable industrial power standard.
• Operating Pressure: 3 to 8 bar, offering a wide operational range.
• Design: Piston gate valve, known for its robustness and efficiency.
• Reset Type: Pneumatic spring, ensuring reliable return to initial position.
• Degree of Protection: IP65 with plug socket, providing excellent resistance against dust and water ingress.

Technical Specifications

• Nominal Size: 6 mm
• Exhaust-Air Function: With flow control option, enhancing system flexibility.
• Sealing Principle: Soft, for leak-tight performance.
• Mounting Position: Optional, allowing for versatile installation.
• Manual Override: Detenting via accessory, non-detenting, for maintenance and setup.
• Type of Piloting: Pilot actuated, for efficient and consistent control.
• Pilot Air Supply: Internal, simplifying installation and reducing external tubing.
• Flow Direction: Non-reversible, ensuring predictable operation.
• Switching Time On: 24 ms, for rapid response.
• Switching Time Off: 32 ms, for quick deactivation.
• Duty Cycle: 100% in conjunction with holding current reduction, for continuous operation.
• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4], ensuring compatibility with industrial air quality standards.
• Media Temperature: -5°C to 50°C
• Ambient Temperature: -5°C to 50°C
• Product Weight: 95 g
• Electrical Connection: 2-pin
• Type of Mounting: With through-hole, for secure attachment.
• Pneumatic Connections: Port 1: G1/8, Port 2: G1/8, Port 3: G1/8, Port 4: G1/8, Port 5: G1/8.
• Materials: Housing: Die-cast aluminum; Seals: NBR, selected for durability and performance.
• Certifications: c UL us - Recognized (OL); Maritime classification (see certificate).
• Protection Class: IP65 with plug socket.

Technical data sourced from Festo's official datasheet, ensuring accuracy and reliability.

Applications

The Festo CPE14-M1BH-5L-1/8 solenoid valve is an indispensable component across various demanding industrial sectors, offering reliable and precise pneumatic control:

• Industrial Automation: Seamlessly integrates to control actuators, optimizing efficiency and precision in complex manufacturing and assembly processes.
• Material Handling: Essential for managing pneumatic systems within conveyor operations, pick-and-place units, and sorting machinery, ensuring smooth and consistent material flow.
• Packaging Machinery: Guarantees precise movement and timing in packaging lines, from filling and sealing to labeling and palletizing, enhancing overall production speed and accuracy.
• Robotics: Facilitates accurate and responsive control of pneumatic components in advanced robotic systems, critical for intricate tasks and repetitive motions with high precision.
• Process Control: Ideal for applications requiring rapid and accurate switching of airflows in process control systems, contributing to stable and efficient operations.

Why Choose the Festo CPE14-M1BH-5L-1/8?

Investing in the Festo CPE14-M1BH-5L-1/8 offers a multitude of benefits for your pneumatic control needs:

• Compact Design: Its remarkably slim 14 mm construction width makes it an ideal choice for space-constrained installations, allowing for more compact machine designs and easier retrofits.
• High Flow Rate: With an impressive 800 l/min nominal flow rate, this valve is perfectly suited for demanding pneumatic applications that require significant air volume and rapid response, ensuring your system performs at its peak.
• Reliable Performance: Built with durable die-cast aluminum housing and NBR seals, it guarantees longevity and consistent, trouble-free operation even in harsh industrial environments, minimizing downtime and maintenance costs.
• Flexible Installation: The optional mounting positions and comprehensive G1/8 port configurations enhance its adaptability, allowing for straightforward integration into existing or new pneumatic circuits with ease.
• Energy Efficiency: Designed with a 100% duty cycle in conjunction with holding current reduction, it not only performs continuously but also contributes to energy savings, making it a cost-effective choice for long-term operation.
• Precision Control: The 5/2-way monostable function, combined with pilot actuation, provides exceptionally precise control over your pneumatic actuators, leading to improved process accuracy and product quality.

Order Now

Elevate the efficiency and reliability of your pneumatic control systems with the industry-leading Festo CPE14-M1BH-5L-1/8 solenoid valve. Experience unparalleled precise control, robust and reliable performance, and seamless integration into your critical industrial automation applications. Don't compromise on quality or performance—choose Festo for superior pneumatic solutions. Add to cart today and optimize your operations!
