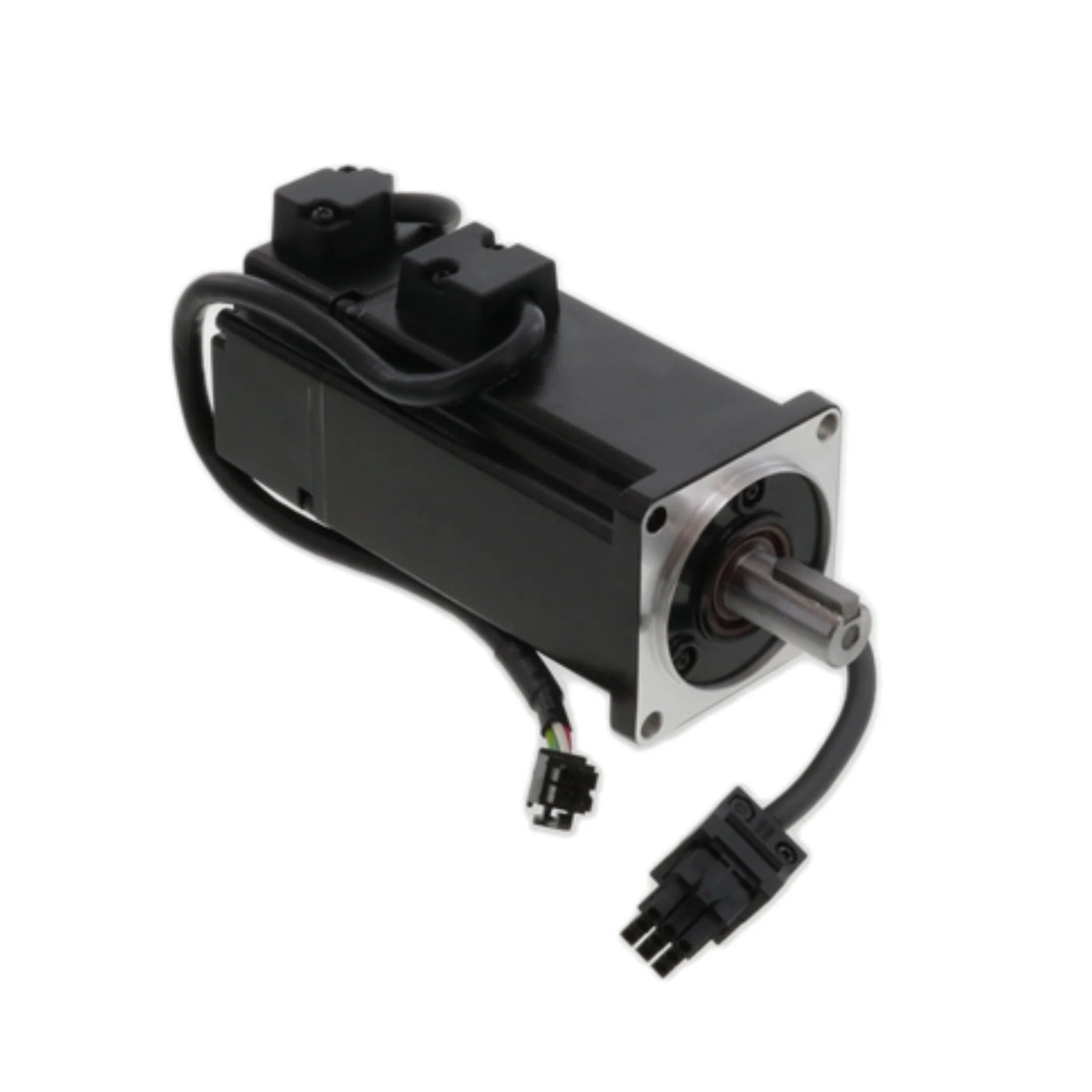

Delta ECMA-C10604RS

Overview

Elevate your industrial automation and motion control systems with the Delta ECMA-C10604RS, a high-performance 400W AC servo motor from Delta's esteemed ECMA series. Engineered for unparalleled precision and reliability, this robust motor is an indispensable component for applications demanding exact positioning, rapid acceleration, and consistent speed. Operating efficiently at 220V and capable of reaching a remarkable 3000 RPM, the ECMA-C10604RS integrates a 17-bit incremental encoder, ensuring meticulous feedback for superior control accuracy. Its compact design, coupled with a durable, keyed shaft, facilitates seamless integration into a wide array of machinery, making it an ideal choice for discerning engineers and system integrators. Designed to perfectly complement Delta's advanced ASDA servo drives, this model guarantees optimal synergy and enhanced system performance across the board.

Key Features

• High-Performance Power: Delivers a consistent 400W of rated power, ensuring robust operation for demanding tasks.
• Exceptional Speed: Achieves a rated speed of 3000 RPM, optimizing throughput and operational efficiency.
• Optimized Voltage Input: Designed for 220V AC operation, suitable for standard industrial power supplies.
• Precision Feedback: Equipped with a 17-bit incremental encoder, providing 131,072 pulses per revolution for ultimate positional accuracy.
• Secure Shaft Design: Features a keyed shaft for reliable torque transmission and secure coupling with mechanical components.
• Compact Footprint: With an approximate 60 mm frame size, it ensures easy integration into space-constrained applications.
• Durable Construction: Boasts an IP65 protection rating at the shaft (motor body), offering excellent resistance against dust and water ingress.
• Lightweight and Efficient Design: Engineered for minimal weight without compromising on power or durability.
• No Brake Option: Streamlined design for applications where a brake is not required, optimizing cost and simplicity.

Technical Specifications

• Model: ECMA-C10604RS
• Series: ECMA
• Rated Power: 400W
• Rated Speed: 3000 RPM
• Rated Voltage: 220V AC
• Rated Torque: Approximately 1.27 Nm
• Peak Torque: Approximately 3.82 Nm
• Encoder Type: 17-bit incremental encoder (131,072 pulses/rev)
• Shaft Style: Keyed shaft
• Frame Size: 60 mm
• Connection Type: Standard circular connectors, ensuring broad compatibility with Delta servo drives.
• Cooling Method: Natural convection, promoting reliability and reducing maintenance.
• Operating Temperature: 0°C to +40°C, suitable for a wide range of industrial environments.
• Mounting: Flange mount for secure and straightforward installation.
• Enclosure Protection: IP65 (shaft) and an overall IP55 (body) for enhanced environmental resistance.

Applications

The Delta ECMA-C10604RS AC servo motor is a versatile solution, perfectly suited for a multitude of high-demand industrial applications where precision, speed, and reliability are paramount:

• CNC Machining: Provides precise and repeatable axis control, crucial for intricate cutting, milling, and engraving tasks.
• Pick-and-Place Systems: Enables smooth, rapid, and accurate positioning for efficient material handling and assembly lines.
• Packaging Machinery: Offers synchronization and highly repeatable motion, essential for fast and consistent packaging operations.
• Robotics & Automation Lines: Facilitates integrated motion solutions, enhancing the dexterity and operational efficiency of robotic systems.
• Textile Machinery: Ensures precise control for weaving, spinning, and other textile manufacturing processes.
• Printing Presses: Delivers accurate paper feeding and print head positioning for high-quality output.
• Semiconductor Manufacturing: Supports ultra-precise movements required in wafer handling and inspection.

Why Choose This Model?

When selecting a servo motor, the Delta ECMA-C10604RS stands out as a superior choice for its blend of advanced technology and robust design. This model offers:

• Unmatched Precision: The 17-bit incremental encoder provides exceptional feedback, enabling control with sub-micron accuracy, critical for high-tolerance applications.
• Superior Reliability: Built for continuous-duty operation, this motor ensures consistent performance and extended service life, minimizing downtime and maintenance costs.
• Optimized Compatibility: Designed to integrate seamlessly with Delta’s ASDA-B series servo drives, guaranteeing plug-and-play functionality and maximized system efficiency. This synergy results in a finely tuned motion control experience.
• Enhanced Efficiency: Its 400W power output combined with efficient energy consumption leads to optimized operational costs and a lower environmental footprint.
• Robust Industrial Design: The IP65 shaft and IP55 body protection signify its capability to operate reliably in harsh industrial environments, offering resistance against dust, oil, and water splashes.
• Compact and Versatile: Its small footprint and robust construction offer flexibility in mounting and application design, allowing for more compact machine designs without sacrificing power.

Order Now

Empower your industrial applications with the precision and reliability of the Delta ECMA-C10604RS AC servo motor. This high-performance component is currently in stock and available for global delivery, ready to be dispatched to your location to meet your immediate operational needs. For comprehensive technical data, additional options, or to explore our complete range of Delta Servo Motors, visit our website. Our diverse portfolio of precision motion control solutions is meticulously engineered for high accuracy, unparalleled efficiency, and steadfast reliability in industrial automation. Upgrade your systems today and experience the Delta difference in motion control innovation!
