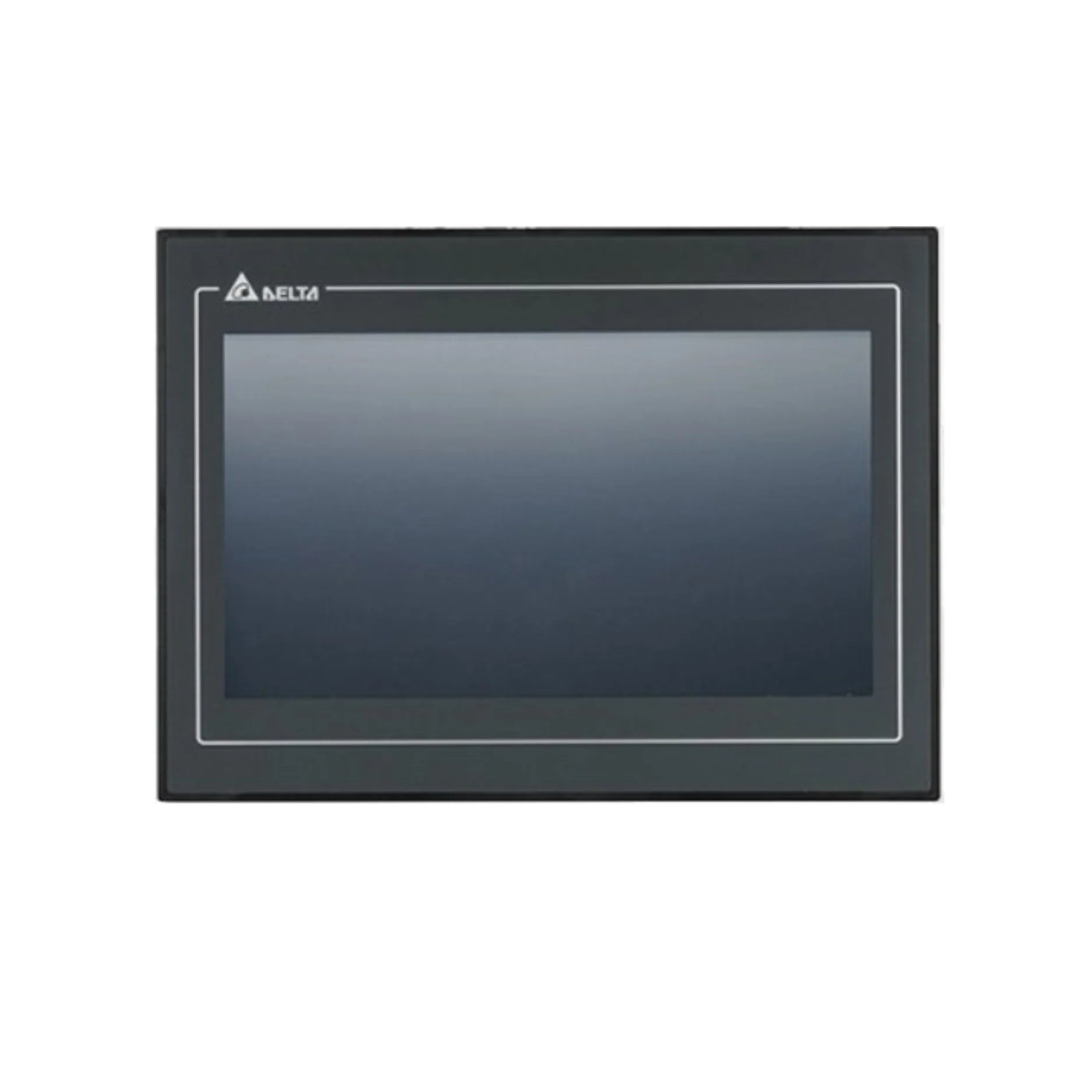

Delta DOP-115WX 15"

Overview

The Delta DOP-115WX is a cutting-edge 15-inch Advanced Human-Machine Interface (HMI) from Delta's renowned DOP-100 series, meticulously engineered to elevate control and monitoring in demanding industrial automation environments. This HMI redefines operational efficiency and clarity with its expansive 15-inch TFT LCD, boasting a crisp 1024x768 pixel resolution and vibrant 24-bit color depth. Designed for intuitive interaction and robust performance, the DOP-115WX provides operators with unparalleled visual feedback and seamless control over complex processes, all within a durable and responsive interface.

Key Features

• Vivid Display: Experience crystal-clear visuals on a 15-inch TFT LCD, offering an impressive 1024x768 pixel resolution and rich 24-bit color depth for optimal data representation.
• High-Performance Processing: Powered by a robust Dual Core 1 GHz MCU, ensuring swift, responsive, and reliable operation even in the most intensive applications.
• Ample Memory: Equipped with 8 GB of ROM and 1 GB of DDR3 1000 MHz RAM, providing generous storage for applications and smooth multitasking capabilities.
• Extensive Communication Ports:
  • Dual Ethernet: Seamlessly integrate into networks with two built-in Ethernet ports (1 Gbps and 100 Mbps) for versatile connectivity.
  • Quad Serial Ports: Four comprehensive serial ports support RS-232, RS-422, and RS-485 communication protocols, offering broad compatibility with various industrial devices.
• Flexible USB Interfaces:
  • USB Host: Easily connect to a wide array of peripherals, including USB disks, printers, and mice, enhancing operational flexibility.
  • USB Client: Facilitate efficient data transfer and program downloads, streamlining maintenance and updates.
• Expandable Storage: An integrated SD card slot allows for convenient expansion of storage capacity and simplifies data logging.
• Real-Time Clock (RTC): A built-in RTC ensures accurate time-stamping for data and precise scheduling of tasks, critical for process integrity.
• Robust Durability: Engineered for industrial resilience, featuring a panel mount design with an IP65-rated front panel, providing superior protection against dust and water ingress.
• Wide Operating Temperature: Reliably operates within a broad temperature range of 0°C to 50°C, suitable for diverse industrial environments.
• Certified Quality: Proudly holding CE and UL certifications, guaranteeing adherence to stringent safety and quality standards.

Technical Specifications

• Model Number: DOP-115WX
• Series: DOP-100
• Display Size: 15 inches
• Resolution: 1024 x 768 pixels
• Color Depth: 24-bit
• Backlight: LED with an impressive half-life of over 50,000 hours at room temperature (25°C)
• Brightness: 450 cd/m² (Typ.)
• Touchscreen: Highly durable 4-wire resistive touchscreen, rated for over 10 million operations
• Buzzer: Multi-tone frequency (2K – 4K Hz) / 85 dB for audible alerts
• Network Interfaces:
  • LAN1: 1000 Mbps
  • LAN2: 100 Mbps
• Serial Communication Ports:
  • COM1: RS-232 (supporting flow control) / RS-485
  • COM2: RS-422 / RS-485
  • COM3: RS-232 (supporting flow control) / RS-485
  • COM4: RS-422 / RS-485
• USB Ports:
  • USB Host: 1
  • USB Client: 1 Mini USB
• SD Card Slot: 1
• Power Supply: DC +24V (-15% to +15%)
• Power Consumption: Approximately 5.6W
• Cooling Method: Natural cooling
• Protection Rating: IP65 (front panel)
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Dimensions (W x H x D): 387.7 mm x 295.7 mm x 63.5 mm
• Weight: Approximately 0.5 kg
• Certifications: CE, UL

Applications

• Industrial Automation: Provides intuitive and reliable human-machine interfaces for a vast array of machinery and intricate process control systems.
• Advanced Manufacturing: Empowers operators with efficient tools to monitor, control, and optimize complex production lines, enhancing overall factory output and quality.
• Building Management Systems: Seamlessly integrates with building infrastructure for comprehensive control and monitoring of HVAC, advanced lighting solutions, and sophisticated security systems.
• Energy Management: Offers flexible and clear interfaces for real-time monitoring and precise control of critical power systems, contributing to energy efficiency and sustainability.

Why Choose This Model?

The Delta DOP-115WX stands out as a superior choice for your industrial automation needs due to its blend of high performance, robust design, and versatile connectivity. Its powerful Dual Core 1 GHz MCU ensures lightning-fast and consistently responsive operations, minimizing delays and maximizing productivity. With dual Ethernet ports and four serial ports, this HMI offers unparalleled flexibility in connecting to a diverse range of industrial devices and networks. The IP65-rated front panel guarantees exceptional durability, providing reliable protection against environmental elements in harsh industrial settings. Furthermore, the integrated SD card slot facilitates easy expansion for data storage and logging, making it ideal for applications requiring extensive data collection. Choose the Delta DOP-115WX for a reliable, high-performance, and adaptable HMI solution.

Order Now

Unlock enhanced control and efficiency for your industrial operations. The Delta DOP-115WX 15-inch Advanced HMI is available for fast and reliable worldwide shipping. For detailed information on our complete range of HMI solutions and further technical specifications, please explore our extensive catalog and optimize your systems today.
