Delta DOP-103WQ

Overview

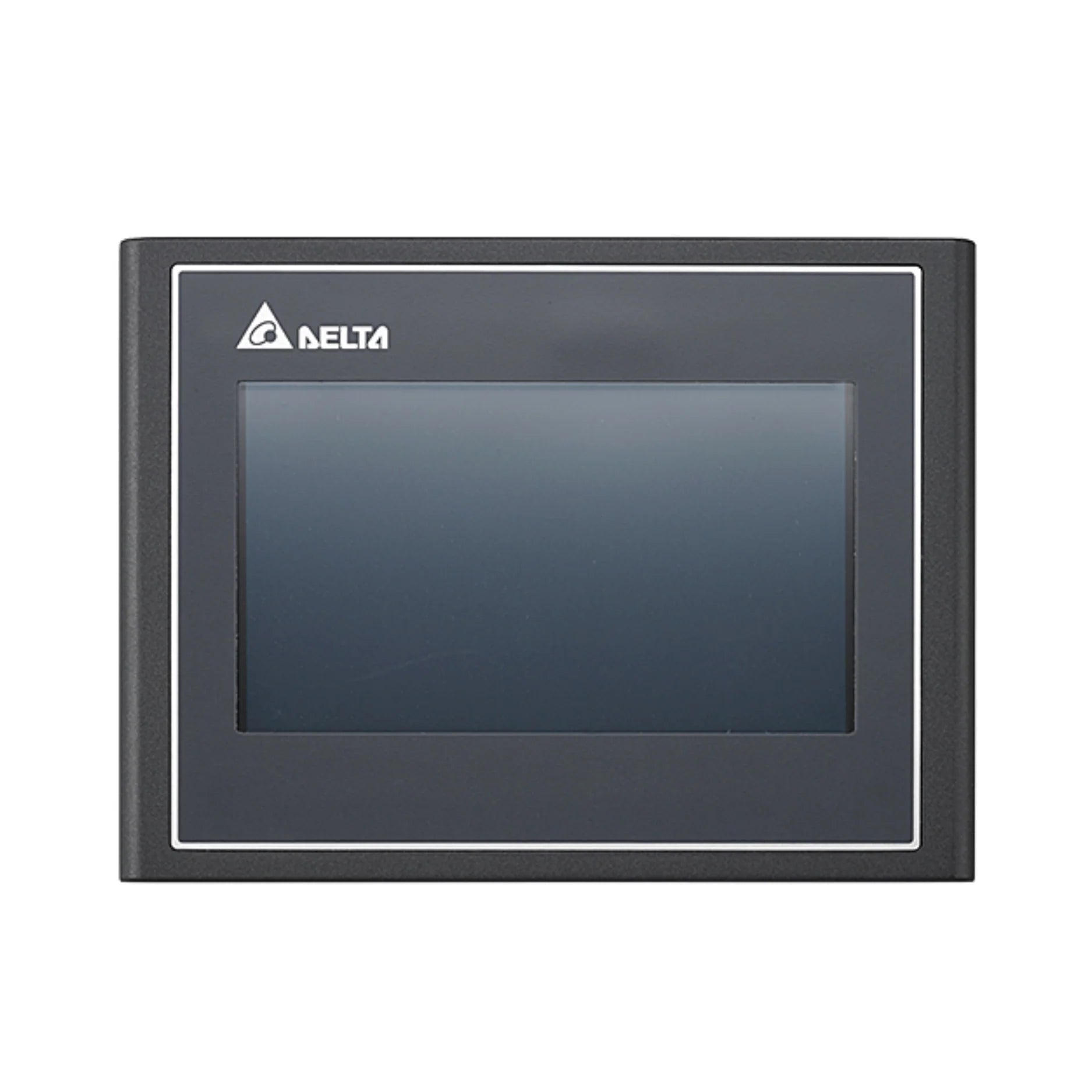

The Delta DOP-103WQ is a sophisticated yet compact 4.3-inch Human-Machine Interface (HMI) from Delta's renowned DOP-100 series, meticulously engineered to optimize real-time monitoring and control in a multitude of industrial environments. Boasting a crisp TFT LCD display with a resolution of 480x272 pixels and support for an impressive 65,536 colors, this HMI delivers clear and intuitive visual feedback.

Designed for seamless integration, the DOP-103WQ is equipped with an array of connectivity options, including Ethernet, USB Host/Client, and versatile serial communication ports. This comprehensive suite of interfaces ensures effortless integration into existing industrial automation systems, enhancing operational efficiency and data exchange. At its core, a powerful Cortex-A8 800MHz CPU, coupled with 512 MB RAM and 256 MB ROM, guarantees responsive performance and efficient operation, making it an indispensable tool for demanding industrial applications.

Key Features

• Vibrant Display: 4.3" TFT LCD with 480x272 resolution and 65,536 colors for excellent visual clarity.
• High-Performance CPU: Powered by a Cortex-A8 800MHz processor, ensuring rapid and reliable operation.
• Ample Memory: Features 512 MB RAM and 256 MB ROM for efficient data processing and storage.
• Durable Touchscreen: Responsive 4-wire resistive touch panel with a lifespan exceeding 10 million operations.
• Extensive Communication Ports:
  • Ethernet: 1 port, 10/100 Mbps auto-sensing with built-in isolation circuit for robust connectivity.
  • USB: 1 USB Host (Ver 2.0) and 1 USB Client (Ver 2.0) for flexible peripheral connections.
  • Serial Ports: 1 COM port (RS-232/RS-485) and 1 extension COM port (RS-422/RS-485) for diverse serial communication needs.
• Multilingual Support: Accommodates multiple languages, catering to a global user base.
• Certified Reliability: CE / UL certified, guaranteeing compliance with stringent international safety and quality standards.
• Wide Operating Temperature: Functions reliably in environments ranging from 0°C to +50°C.
• Robust Panel Protection: IP65-rated front panel ensures superior resistance against dust and water ingress.

Technical Specifications

• Model Number: DOP-103WQ
• Series: DOP-100
• Display Size: 4.3 inches
• Resolution: 480 × 272 pixels
• Color Depth: 16-bit (65,536 colors)
• Brightness: 400 cd/m² (Typ.)
• CPU: ARM Cortex-A8 (800MHz)
• Flash ROM: 256 MB
• RAM: 512 MB
• Touchscreen Type: 4-wire resistive
• Ethernet Interface: 10/100 Mbps Auto-sensing
• USB Ports: 1 USB Host Ver 2.0, 1 USB Client Ver 2.0
• Serial Communication Ports:
  • COM1: RS-232 (supports flow control) / RS-485
  • COM2: RS-422 / RS-485
• Cooling Method: Natural cooling
• Power Supply: DC +24V (-15% ~ +15%)
• Dimensions (W x H x D): 137 x 103 x 37.1 mm
• Panel Cutout Dimensions (W x H): 118.8 x 92.8 mm
• Weight: Approx. 280g

Applications

• Industrial Automation: Facilitates precise real-time monitoring and control of intricate machinery and complex industrial processes.
• Manufacturing Systems: Significantly enhances user interaction with production equipment, leading to improved operational efficiency and reduced downtime.
• Process Control: Provides intuitive and efficient interfaces for the expert management of complex industrial processes across various sectors.
• Building Automation: Enables centralized and streamlined control of critical building systems, including HVAC, lighting, security, and access control.

Why Choose This Model?

The Delta DOP-103WQ stands out as an exceptional choice for demanding industrial applications due to its compelling combination of features and benefits:

• Compact and Efficient Design: Its small footprint combined with powerful processing capabilities makes it ideal for installations where space is a premium, without compromising on performance.
• Versatile Connectivity: Equipped with multiple communication ports, the DOP-103WQ ensures seamless integration with a wide array of industrial devices and networks, fostering a truly connected and intelligent system.
• User-Friendly Interface: The high-resolution touchscreen, coupled with comprehensive multilingual support, offers an intuitive and accessible user experience, minimizing training requirements and maximizing operational ease for a diverse workforce.
• Robust and Reliable Performance: With an IP65-rated front panel providing superior protection against environmental factors and CE/UL certifications affirming adherence to international safety and quality standards, the DOP-103WQ is built for unwavering durability and reliability in harsh industrial environments.
• Optimized for Performance: The potent Cortex-A8 800MHz CPU and generous memory configuration deliver consistently responsive and efficient operation, ensuring your critical processes run smoothly and without interruption.

Order Now

Elevate your industrial control systems with the advanced capabilities of the Delta DOP-103WQ Compact 4.3-Inch HMI. This powerful and versatile touch panel is your solution for enhanced operational efficiency and robust performance. Available for immediate shipping worldwide, secure yours today and experience the Delta difference!
