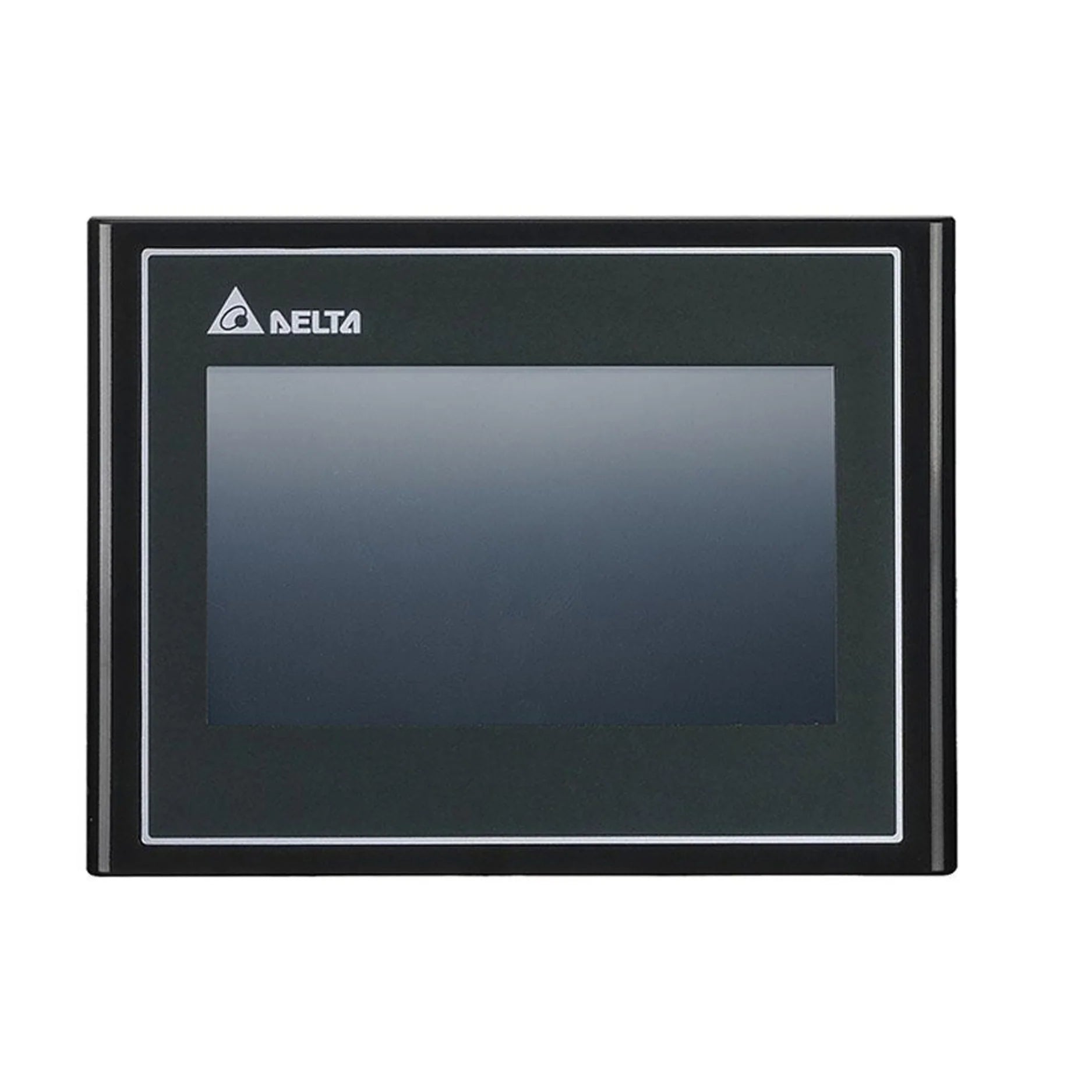

Delta DOP-103BQ

Overview

Elevate your industrial control systems with the Delta DOP-103BQ, a cutting-edge 4.3-inch Human Machine Interface (HMI) meticulously engineered for compact applications. This robust touch panel boasts a vibrant 480x272 resolution TFT display, delivering crystal-clear visuals for monitoring and operation. Designed with efficiency in mind, the DOP-103BQ integrates seamlessly into environments where space is at a premium, providing essential functionality without compromise. Its durable touchscreen ensures long-lasting performance in demanding industrial settings, while comprehensive communication options via RS-232/RS-485 and a convenient USB client port guarantee versatile connectivity.

As a proud member of the acclaimed Delta DOP-100 Basic series, the DOP-103BQ sets the standard for exceptional value and unwavering dependability. It's the ideal solution for Original Equipment Manufacturers (OEMs) seeking cost-effective yet powerful HMI solutions, panel builders requiring reliable components, and machine operators who demand intuitive and responsive control. Experience the perfect blend of performance, durability, and affordability with this compact HMI powerhouse.

Key Features

• Vivid Display: Experience clear visuals on a 4.3-inch TFT LCD with a sharp 480x272 resolution and an impressive 65K colors, ensuring optimal visibility of your process data.
• Exceptional Durability: The touchscreen is built to last, offering a lifespan of over 1 million touches, making it suitable for continuous industrial operation.
• Powerful Processor: Driven by a high-performance Cortex-A8 800 MHz processor, ensuring swift response times and efficient data processing.
• Ample Memory: Equipped with 128 MB RAM and 128 MB ROM, providing sufficient capacity for your application programs and data storage.
• Versatile Communication: Features one COM Port (selectable RS-232/RS-485) and one USB Client port, offering flexible connectivity options for various industrial protocols.
• Robust Mounting: Designed for easy panel mounting with IP65 front protection, safeguarding against dust and water ingress in challenging environments.
• Certified Reliability: CE certified, ensuring compliance with European safety, health, and environmental protection requirements.

Technical Specifications

• Catalog Number: DOP-103BQ
• Display Size: 4.3 inches
• Resolution: 480 × 272 pixels
• Color Depth: 65,536 colors
• Power Supply: 24V DC
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Storage Temperature: -20°C to +60°C (-4°F to 140°F)
• Protection Rating: IP65 (front panel), IP20 (rear)
• Weight: Approximately 300 g

Applications

• Compact Industrial Machines: Ideal for integrating into machinery where space is a critical constraint, providing essential human-machine interaction.
• OEM Control Panels: A cost-effective and highly reliable choice for Original Equipment Manufacturers looking to embed intuitive control interfaces into their products.
• Basic Monitoring Systems: Perfectly suited for applications requiring straightforward data display, alarm notification, and basic operational control.
• Educational & Training Equipment: An excellent entry-level automation HMI for academic institutions and training centers, facilitating practical learning.
• Small-Scale Automation Projects: Provides a robust and user-friendly interface for managing discrete manufacturing processes and automation tasks.

Why Choose This Model?

Opting for the Delta DOP-103BQ means investing in a solution that marries compactness with comprehensive functionality. This model stands out for its ultra-compact design, making it an indispensable asset for installations with limited space, without sacrificing critical features. Its streamlined communication capabilities, including reliable RS-232/RS-485 and convenient USB connectivity, ensure seamless integration into existing and new systems. Furthermore, by choosing the DOP-103BQ, you benefit from Delta's renowned quality and engineering excellence, all at an exceptionally economical price point. It's a smart investment for enhancing efficiency and control in diverse industrial applications.

Order Now

The Delta DOP-103BQ compact HMI is currently in stock and readily available for global delivery, ensuring you can quickly implement this essential component into your operations. Take the first step towards optimized control and enhanced user interaction by securing your unit today.
