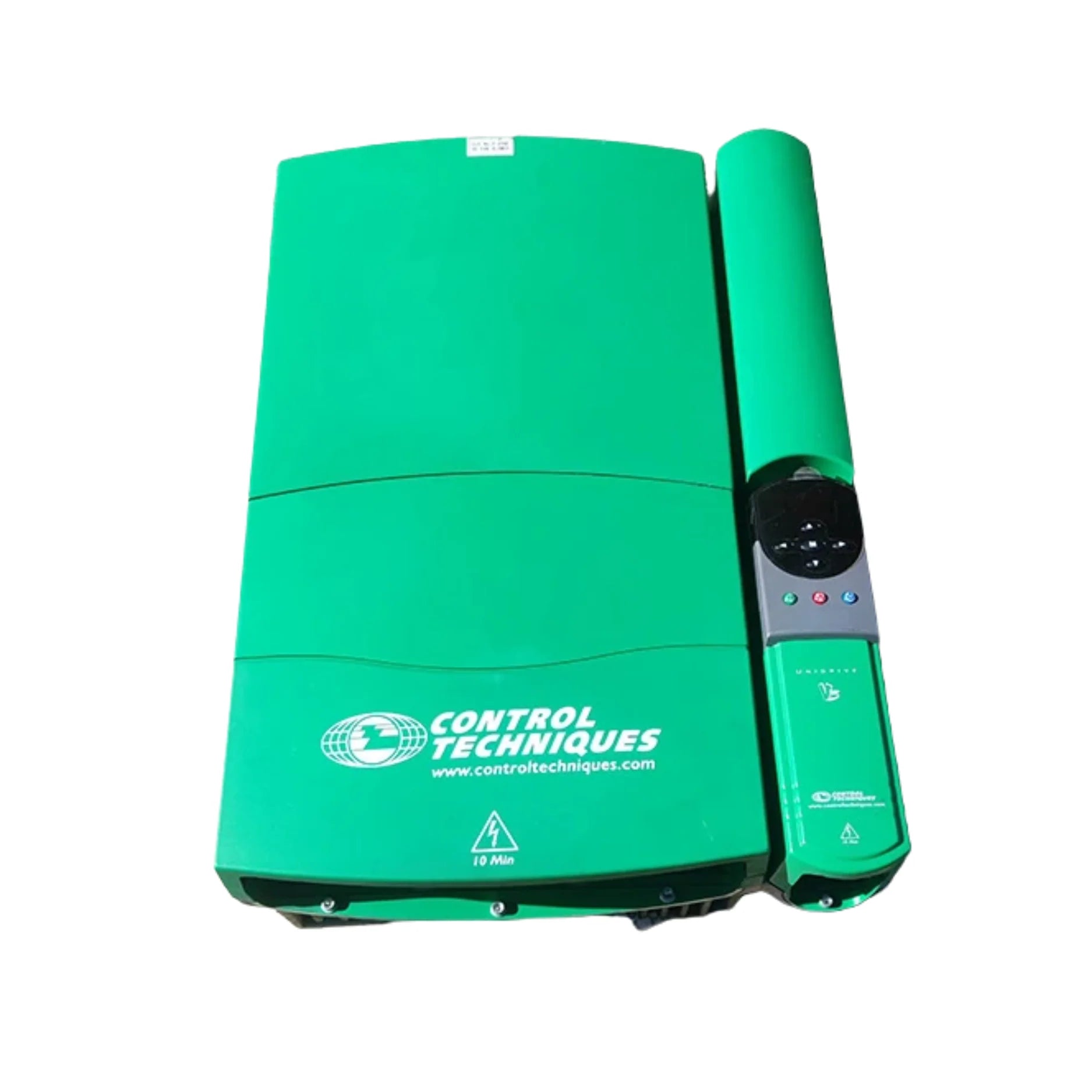

Control Techniques UNI4403

Overview

The Nidec Control Techniques UNI4403 AC Drive is an exceptionally powerful and reliable solution engineered for the most demanding heavy industrial applications. Delivering a substantial 75 kW (100 HP) of power, this AC drive operates flawlessly on a versatile 3-phase 380–480 V input, providing a robust 156 A output. This impressive current handling capability makes the UNI4403 perfectly suited for controlling large motors in continuous-duty environments, ensuring optimal performance and efficiency. As a proud member of the renowned Unidrive Classic series, the UNI4403 embodies the Control Techniques legacy of versatility, unparalleled reliability, and modular scalability, making it a cornerstone for sophisticated industrial process automation.

Key Features

• Power Output: 75 kW (100 HP) for superior control of heavy-duty machinery.
• Input Voltage: 380–480 V AC, 3-phase, 50/60 Hz, ensuring broad compatibility with industrial power grids.
• Input Current: 123 A, optimized for efficient power draw.
• Output Current: 156 A, providing ample power for large and demanding motors.
• Frequency Range: 0–400 Hz, offering precise speed control across a wide operational spectrum.
• Advanced Control Modes: Features Open-loop (V/f), Closed-loop vector, and Servo with encoder feedback for exceptional precision and dynamic response.
• Regenerative Capable: Supports regenerative operation with optional modules, enhancing energy efficiency and braking control.
• Cooling System: Integrated forced air cooling with robust fans ensures reliable operation even under strenuous conditions.
• Enclosure Rating: IP20 for standard panel-mount installations, protecting against solid objects.
• Comprehensive Diagnostics: Built-in status LEDs and a detailed trip log for quick and efficient troubleshooting.
• Expansion Capabilities: Designed to accept various expansion cards for enhanced communication protocols and feedback options.

Technical Specifications

• Model: Control Techniques UNI4403
• kilowatt (kW): 75 kW
• Horsepower (HP): 100 HP
• Output Current: 156 A
• Input Voltage: 380–480 V, 3-phase (AC)
• Input Frequency: 50/60 Hz
• Output Frequency Range: 0–400 Hz
• Control Philosophy: Unidrive Classic
• Enclosure Type: IP20
• Dimensions: Consult product documentation for precise measurements.
• Weight: Consult product documentation for precise specifications.
• Compliance: Meets relevant international industrial standards.

Applications

The versatility and power of the Control Techniques UNI4403 make it an indispensable component across a diverse range of industrial applications:

• Industrial Blowers and Large Pumps: Provides precise speed and torque control for critical flow and pressure management.
• High-Capacity Conveyors and Presses: Ensures smooth, controlled movement and powerful operation in material handling and manufacturing.
• Process Automation in Mining and Heavy Manufacturing: Delivers robust and reliable motor control for continuous, demanding industrial processes.
• HVAC Systems for Large Facilities: Optimizes energy consumption and maintains desired environmental conditions in extensive building automation.
• Regenerative Lifting or Hoisting Systems: Facilitates safe and energy-efficient operation by utilizing regenerative braking capabilities.

Why Choose This Model?

Opting for the Nidec Control Techniques UNI4403 AC Drive means investing in a solution that brings significant advantages to your industrial operations:

• High Current Output: Specifically engineered to handle demanding large motor applications with exceptional current delivery.
• Flexible Control Modes: Offers unparalleled flexibility in control, from basic V/f to advanced closed-loop vector and servo with encoder feedback, maximizing precision and energy savings.
• Built for Rigor: Constructed to withstand the most rigorous industrial duty cycles, ensuring longevity and consistent performance in harsh environments.
• Expandable and Integrable: Designed for seamless integration into existing control systems and readily expandable with various communication and feedback expansion cards.
• Global Trust: Trusted and relied upon by OEMs and industrial users worldwide, a testament to its proven reliability and performance.
