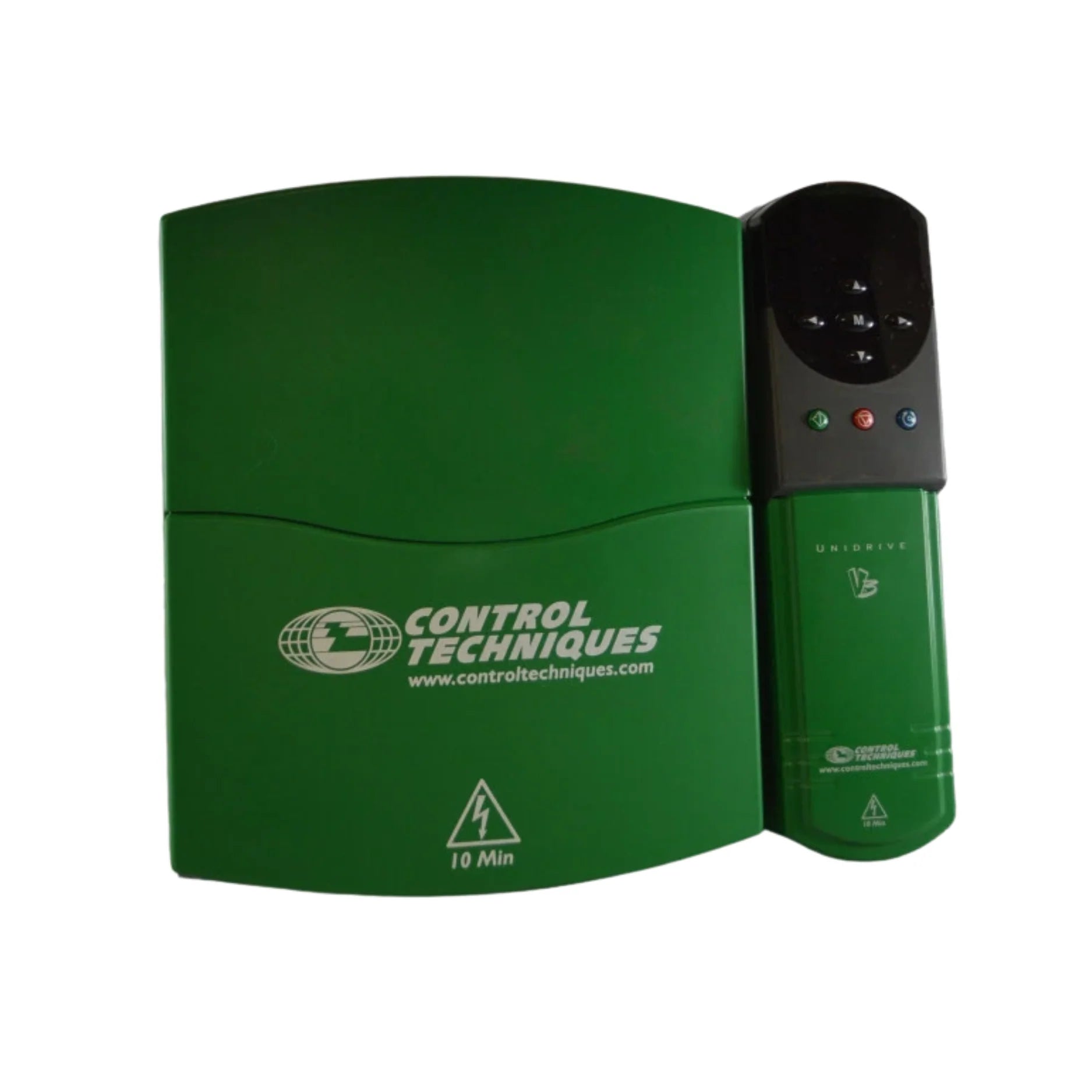

Control Techniques UNI3402

Overview

The Nidec Control Techniques UNI3402 is a high-performance AC drive engineered for demanding industrial motor control applications. Delivering a substantial 18.5 kW (30 HP) and a 40 A output, this robust drive is designed to optimize the efficiency and reliability of your machinery. Part of the acclaimed Unidrive Classic family, the UNI3402 seamlessly integrates into 3-phase 380–480 V systems, offering advanced control modes including V/f, vector control, and precise servo capabilities. Its comprehensive design meets the stringent requirements of modern industrial automation, ensuring flexible and consistent motor operation across a wide range of uses. Experience unparalleled control and durability with the UNI3402, a trusted solution from Control Techniques, a brand synonymous with quality and innovation in industrial drives.

Key Features

• Power Output: Impressive 18.5 kW (30 HP) for robust performance.
• Current Output: High 40 A output, suitable for demanding motor applications.
• Input Voltage: Versatile 380–480 V AC ±10%, 3-phase compatibility.
• Frequency: Standard 50/60 Hz operation.
• Control Modes: Advanced V/f (open-loop), closed-loop vector control, and precise servo mode with encoder feedback for superior motor management.
• Regenerative Operation: Capability for energy-efficient regenerative braking (with appropriate modules).
• Cooling: Efficient forced air cooling system with integrated thermal protection.
• Display: User-friendly built-in keypad with clear LED indicators for easy monitoring and configuration.
• Enclosure: IP20 standard for reliable protection in industrial environments.
• Mounting: Convenient panel mount design for straightforward installation.
• Compliance: Meets global standards including CE, UL, and cUL for ensured safety and quality.

Technical Specifications

The UNI3402 AC drive from Control Techniques is engineered with precision to provide optimal performance. It operates with an input voltage range of 380-480V AC, making it suitable for standard industrial power grids. The drive delivers a continuous output current of 40 A, coupled with a substantial 18.5 kW power rating, enabling it to drive even the most challenging loads with ease. Its sophisticated control algorithms support a variety of control strategies, from basic V/f to advanced closed-loop vector control and highly accurate servo control when paired with encoder feedback. The unit is designed for panel mounting and offers an IP20 protection class, safeguarding its internal components. Furthermore, its compliance with international certifications like CE, UL, and cUL attests to its high standards of safety and operational integrity.

Applications

The versatility and power of the Control Techniques UNI3402 AC drive make it an ideal solution for a multitude of industrial applications:

• Industrial Conveyor Systems: Provides precise speed and torque control for efficient material handling.
• Pump and Fan Control: Optimizes energy consumption and enhances operational stability in fluid dynamics.
• Packaging and Printing Lines: Ensures high accuracy and synchronization for consistent production quality.
• Machine Automation: A cornerstone component for automated machinery requiring reliable and flexible motor control.
• Heavy-Duty OEM Equipment: Perfect for integration into original equipment manufacturing where robust and dependable motor performance is crucial.

Why Choose This Model?

Opting for the Nidec Control Techniques UNI3402 AC drive means investing in superior motor control and operational reliability. Its significant 40 A output ensures high-performance motor control, capable of managing demanding industrial processes. This model boasts compatibility with a vast array of industrial motors, making it a flexible addition to existing or new systems. Benefit from advanced diagnostics and a comprehensive trip history feature, enabling proactive maintenance and minimizing downtime. Built upon the robust and proven Control Techniques Unidrive platform, the UNI3402 offers unparalleled stability and longevity. Furthermore, its support for multiple control strategies and extensive expansion options ensures that your investment is future-proof and adaptable to evolving industrial requirements. Choose the UNI3402 for a powerful, reliable, and intelligent motor control solution.

Order Now

The exceptional Nidec Control Techniques UNI3402 AC Drive is currently in stock and ready to elevate your industrial operations. Take advantage of our fast worldwide shipping to receive this critical component without delay. For further exploration of advanced drive solutions, we invite you to browse our complete selection of Control Techniques Unidrive SP Series AC Drives. Additionally, discover the full breadth of high-quality products available within the comprehensive Nidec (Control Techniques) category.
