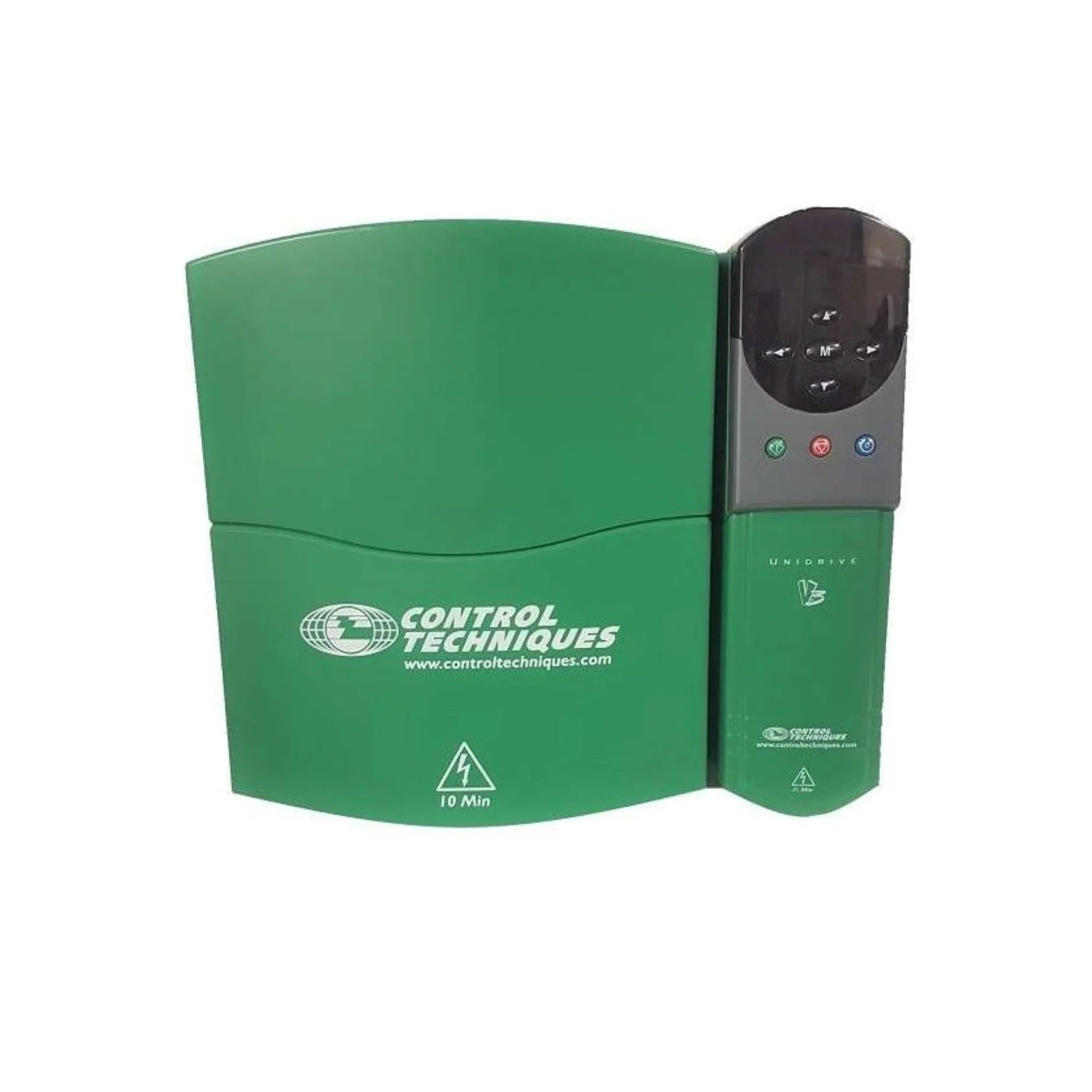

Control Techniques UNI3401

Overview

The Control Techniques UNI3401 is a robust and highly efficient 3-phase AC drive meticulously engineered for precision motor control within demanding industrial environments. As a flagship product from the renowned Nidec (Control Techniques) brand, the UNI3401 delivers unparalleled performance for a wide array of applications. With a substantial 15 kW (25 HP) power rating and a potent 34 A output current, this drive operates seamlessly on 380–480 V AC. It boasts versatile control modes, including V/f (Volts per Hertz) and open-loop vector control, making it adaptable to various motor types and operational requirements. Its compact design ensures easy integration, while advanced diagnostic tools guarantee reliable and efficient operation. From automating complex processes to powering critical machinery like pumps and conveyors, the UNI3401 stands out as an ideal solution for achieving optimal motor performance and enhanced energy efficiency.

Key Features

• High Power Output: Delivers 15 kW (25 HP) of power, suitable for a broad spectrum of industrial motor applications.
• Robust Current Capacity: Features a strong 34 A rated current, ensuring stable performance even under heavy loads.
• Wide Input Voltage Range: Operates efficiently across 380–480 V AC ±10%, 3-phase, accommodating various power supply configurations.
• Flexible Frequency Support: Compatible with both 50 Hz and 60 Hz input frequencies.
• Advanced Control Modes: Supports V/f (Volts per Hertz) and open-loop vector control for precise and efficient motor management, with servo-compatible capabilities for enhanced responsiveness.
• Compact & Easy Integration: Designed with a compact, panel-mountable chassis style, allowing for seamless installation in existing control panels.
• Comprehensive Diagnostics: Equipped with built-in trip history and status LEDs, providing immediate insights into operational status and facilitating quick troubleshooting.
• Modular Expandability: Offers modular I/O, feedback, and communication options, enabling customization and integration with diverse control systems.

Technical Specifications

• Model: UNI3401
• Power Rating: 15 kW (25 HP)
• Rated Current: 34 A
• Input Voltage: 380–480 V AC ±10%, 3-phase
• Input Frequency: 50/60 Hz
• Output Frequency: 0–400 Hz
• Control Modes: V/f, Open-loop vector control, Servo-compatible
• Ambient Temperature: 0 °C to +40 °C (with derating required above 40 °C)
• Humidity: 5%–95% non-condensing
• Enclosure Rating: IP20
• Cooling: Efficient internal fan cooling system
• Mounting: Versatile DIN-rail or panel mounting options
• Chassis Style: Compact, panel-mountable

Applications

The Control Techniques UNI3401 AC drive is an exceptionally versatile solution, proven to excel across a multitude of industrial applications:

• Industrial Pumps & Compressors: Provides precise speed and torque control for optimal fluid management and energy savings.
• Conveyor & Material Handling Systems: Ensures smooth acceleration, deceleration, and accurate positioning, enhancing operational efficiency and safety.
• Process Control & Factory Automation: Integrates seamlessly into automated systems, offering reliable control for various manufacturing processes.
• HVAC Systems & Large Fans: Optimizes fan and blower operation, leading to significant energy reductions and improved environmental control.
• Energy-Efficient Motor Retrofits: An ideal choice for upgrading existing motor systems, delivering enhanced performance and contributing to lower energy consumption.

Why Choose This Model?

Opting for the Control Techniques UNI3401 provides several distinct advantages for discerning industrial users:

• Unmatched Precision: Delivers highly accurate motor control, essential for high-load conditions and intricate processes, ensuring optimal performance and product quality.
• Reliability & Durability: Engineered with built-in diagnostics and robust protection features, it guarantees dependable operation and extended service life, minimizing downtime.
• Seamless Compatibility: Designed for versatility, it is compatible with a wide range of feedback and communication modules, allowing for flexible integration into diverse control architectures.
• Space-Saving Design: Its compact chassis ensures that it fits effortlessly into existing electrical panels, making it an excellent choice for installations where space is a premium.
• Trusted Brand Support: Backed by the global reputation and comprehensive support of Nidec (Control Techniques), ensuring peace of mind and access to expert assistance.
• Energy Efficiency: Helps optimize motor performance to reduce energy consumption, leading to lower operating costs and a smaller environmental footprint.

Order Now

The Control Techniques UNI3401 AC Drive is readily available and poised to enhance the efficiency and precision of your industrial operations. We offer worldwide shipping, ensuring that this advanced motor control solution can reach you wherever your business operates. For those seeking alternative specifications or expanded capabilities within this esteemed product line, we invite you to explore our comprehensive selection of Control Techniques Unidrive SP Series AC Drives. Furthermore, you can discover the full breadth of innovative solutions offered by this leading manufacturer by browsing our complete Nidec (Control Techniques) category.
