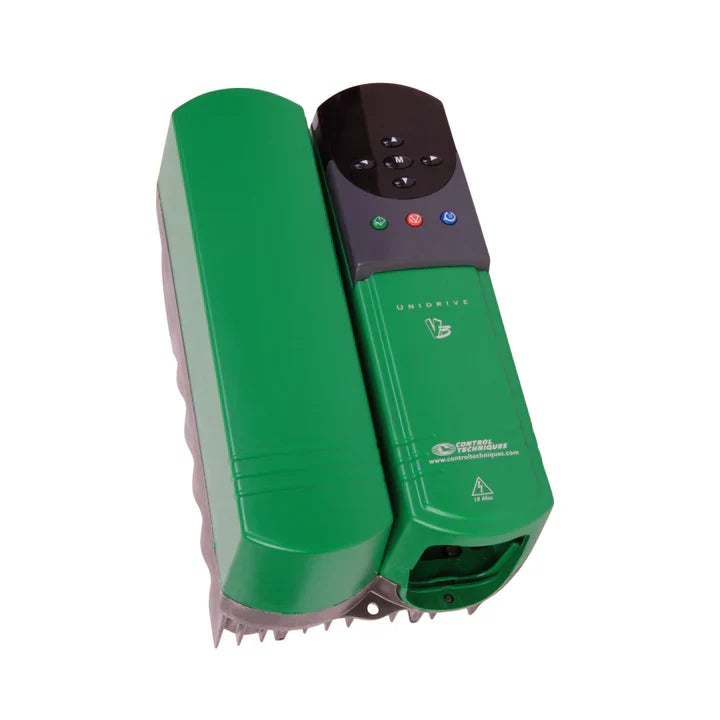

Control Techniques UNI2402

Overview

The Nidec Control Techniques UNI2402 is a highly versatile and compact AC drive from the renowned Unidrive series, engineered to provide robust performance for a wide array of industrial applications. Delivering an impressive 7.5 kW of power within a space-saving Model Size 2 chassis, this drive is a cornerstone for systems demanding precision, flexibility, and reliability. Its advanced capabilities support multiple control modes, including open loop, closed loop vector, servo, and regenerative (regen) operation, making it an ideal solution for intricate and dynamic processes. Designed by Control Techniques, a leader in drive technology, the UNI2402 embodies a commitment to high-quality engineering and operational excellence, ensuring seamless integration and superior motor control.

Key Features

• Power Output: 7.5 kW for demanding applications.
• Input Voltage: 380–480 V AC ±10%, 3-phase, ensuring broad compatibility.
• Input Current: 16.3 A.
• Output Voltage: 380–480 V AC, 3-phase.
• Output Current: 16 A.
• Frequency: 50/60 Hz.
• Control Modes:
  • Open loop for general-purpose applications.
  • Closed loop vector for enhanced speed and torque control.
  • Servo mode for high-accuracy positioning.
  • Regenerative (regen) mode for energy efficiency and active braking.
• Mounting: Flexible panel/DIN-rail options for diverse installation needs.
• Enclosure Rating: IP20, providing protection against solid objects.
• Chassis Size: Compact Model Size 2, optimizing panel space.
• Diagnostic Tools: Comprehensive trip history and onboard status LEDs for easy troubleshooting.
• Modularity: Built-in expansion slots for additional I/O and communication modules, ensuring future-proof adaptability.

Technical Specifications

The Control Techniques UNI2402 is meticulously engineered to meet rigorous industrial standards. Its 7.5 kW power rating and a robust 3-phase 380–480 V AC input (with a ±10% tolerance) ensure stable and consistent performance. The drive is capable of delivering a 16 A output current, making it suitable for a variety of motor sizes. With support for both 50 Hz and 60 Hz frequencies, it seamlessly integrates into global power systems. The IP20 enclosure rating offers essential protection, while its Model Size 2 chassis dimensions are designed for compact installations. Diagnostic features, including a detailed trip history and easily visible onboard status LEDs, facilitate quick identification and resolution of operational issues, minimizing downtime. This drive also prioritizes expandability with dedicated slots for I/O and communication modules, allowing for customized system integration.

Applications

The exceptional versatility and precision of the Nidec Control Techniques UNI2402 make it ideal for a broad spectrum of industrial applications, including:

• High-speed Conveyors: Providing precise speed and torque control for efficient material handling.
• Dynamic Servo Systems: Ensuring accurate positioning and rapid response in demanding motion control tasks.
• Regenerative Braking Applications: Effectively recovering energy and enabling high-performance braking in lifts, centrifuges, and other decelerating loads.
• Industrial Automation: Delivering closed-loop accuracy for critical automated processes and machinery.
• Pumps, Fans, and Compact OEM Equipment: Offering reliable and energy-efficient operation in a wide range of original equipment manufacturer solutions.
• Packaging Machinery: Enhancing throughput and precision in packaging lines.
• Textile Machinery: Providing consistent speed and tension control.

Why Choose This Model?

Choosing the Nidec Control Techniques UNI2402 means investing in superior motor control and operational efficiency. This drive is celebrated for its ability to deliver precise and responsive motor control, which is essential for maintaining optimal performance in critical industrial applications. Its multi-mode operation, encompassing open loop, closed loop vector, servo, and regenerative capabilities, offers unparalleled application flexibility, allowing it to adapt to diverse operational requirements with ease. The compact Model Size 2 design is a significant advantage, helping to save valuable panel space and streamline machinery layouts. Furthermore, the regenerative mode offers substantial energy savings, making it an environmentally conscious and cost-effective choice for systems with frequent braking or overhauling loads. As part of the trusted Control Techniques Unidrive series, the UNI2402 guarantees proven performance and reliability, backed by a legacy of engineering excellence.

Order Now

The Nidec Control Techniques UNI2402 Unidrive AC Drive is readily available to meet your industrial control needs and is poised for global delivery. Enhance your systems with this powerful and versatile AC drive, designed for optimal performance and energy efficiency. For an expanded range of options within this acclaimed series, we invite you to explore our comprehensive selection of Control Techniques Unidrive SP Series AC Drives. Additionally, discover the complete spectrum of innovative solutions offered by the brand by viewing our Nidec (Control Techniques) category.
